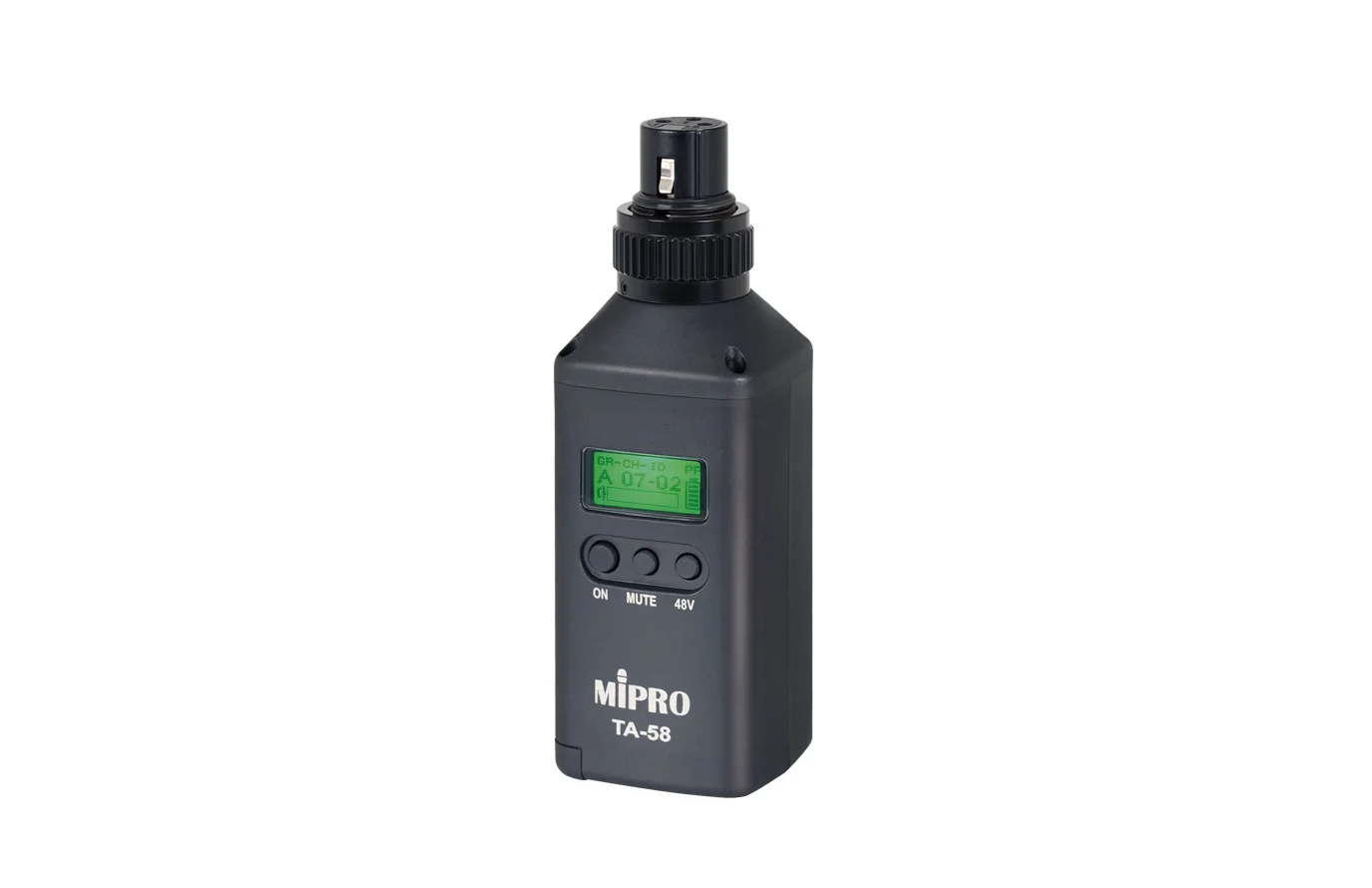

TA-58

5 GHz Digital Plug-on Transmitter

OVERVIEW

PRODUCT INQUIRY

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Digital

Digital

UHF、ISM

ISM

Frequency_Range

5.8 GHz

VFD

LCD

ACT_Sync

ACT Sync

Li-ion_Battery

Li-ion

ta-58_1
ta-58_1

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

    •

    FEATURES

    • Operates in the ISM band to avoid common wireless interference and ensure stable transmission.
    • Compact professional design with a rugged plastic housing and built-in high-efficiency concealed antenna.
    • Green backlit LCD clearly displays operational and status information.
    • Wide and flat frequency response with ultra-low distortion and noise floor delivers fast transient response and natural sound reproduction.
    • Standard XLR balanced audio input supports 48 V phantom power with up to 10 mA load.
    • Built-in high-capacity lithium battery provides approximately 5–8 hours of continuous use per charge.
    • USB Type-C charging interface and replaceable battery design offer maximum flexibility.

    SPECIFICATION

    Model

    TA-58

    Name

    5 GHz Digital Plug-on Transmitter

    Frequency Range

    ISM 5.8 GHz (country dependent)

    RF Power Output

    20 mW (country dependent)

    Audio Control

    N/A

    Audio Input

    XLR female

    Max Input

    2 V

    Phantom Power

    +48 V at 10 mA max.

    Gain Control

    0 dB

    Control Interface

    ACT sync sensor, mute button, phantom power button

    Display

    Backlit LCD

    Power Supply

    One 18500 Li-ion battery

    Battery Charging

    USB Type-C

    Dimensions

    40 × 117 × 38 mm (W × H × D)

    Weight

    Approx. 120 g

    RELATED PRODUCTS

  • All (7)

  • Wireless Systems (4)

  • Wired Microphones (3)

    • act-5801_s

    ACT-5801

    5.8 GHz Digital Single-Channel Receiver

    COMPARE

    act-5802_s

    ACT-5802

    5.8 GHz Digital Dual-Channel Receiver

    COMPARE

    act-5812a_s

    ACT-5812A

    5.8 GHz Digital Dual-Channel Receiver

    COMPARE

    act-5814a_s

    ACT-5814A

    5.8 GHz Digital Quad-Channel Receiver

    COMPARE

    mm-100_s

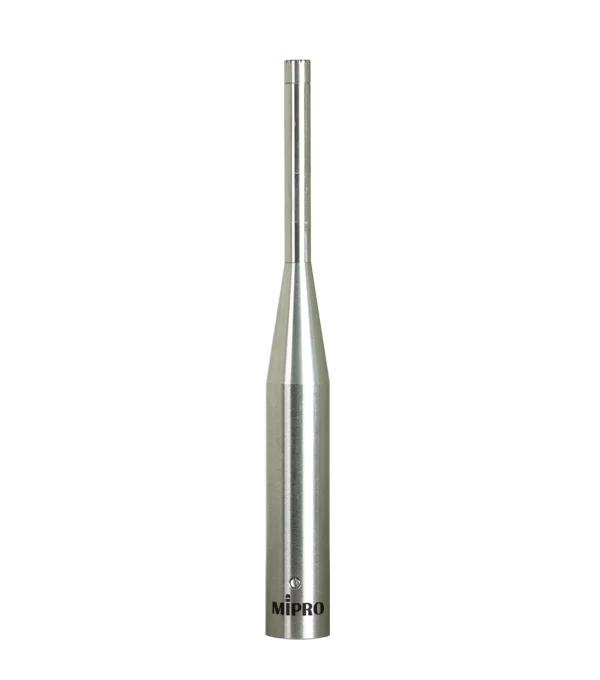

    MM-100

    Omnidirectional Measurement Microphone

    mm-300_s

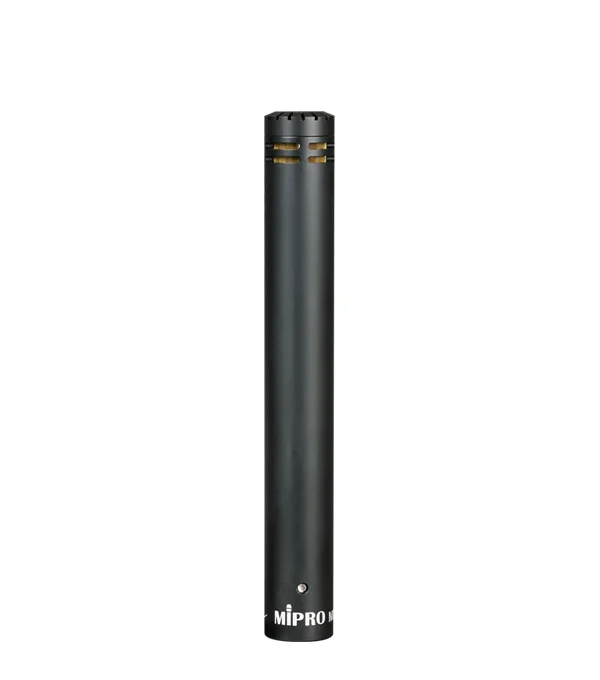

    MM-300

    Cardioid Instrument Microphone

    mm-500_s

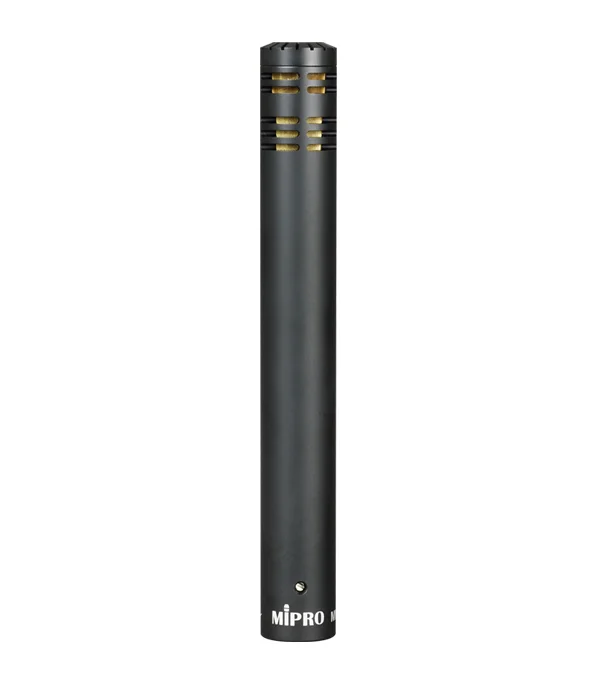

    MM-500
