Product Name : 2.4 GHz Digital Handheld Transmitter with MU-80A Capsule

  • New Product

  • Digital

  • ISM Band

  • ISM 2.4 GHz

  • LED Display

  • ACT™ Channel Synchronization

  • AA

  • Li-ion

  • USB Type C

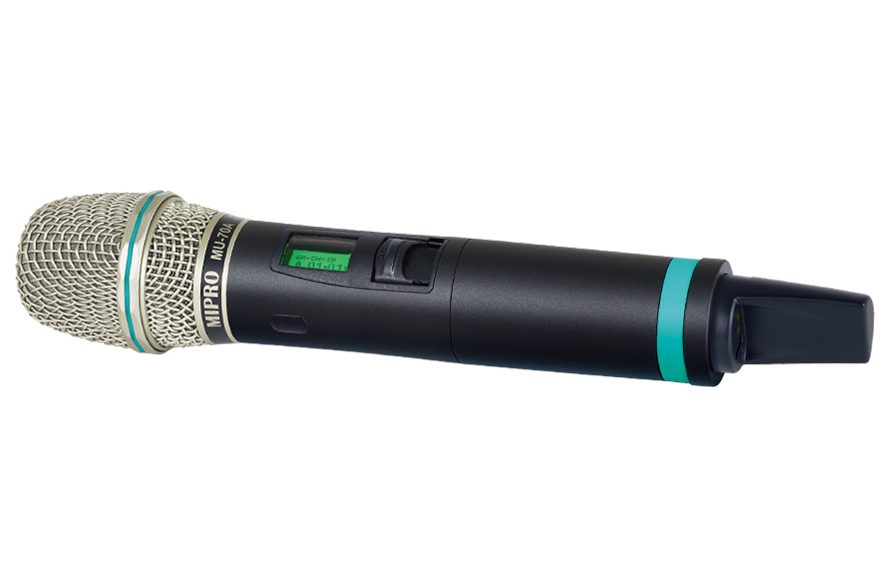

  • The microphone with metal housing features the most elegant shape and the most comfortable handheld size. The surface is special matte black color and presents the ultra-low handling noise and a professional appearance.
  • The unique metal grille of the capsule module can be divided into the upper and lower grille. The upper grille can be detached for cleaning; the lower grille is connected with the housing by an external thread. The robust metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound.
  • The patented power switch module integrates an LCD for convenience to operate.

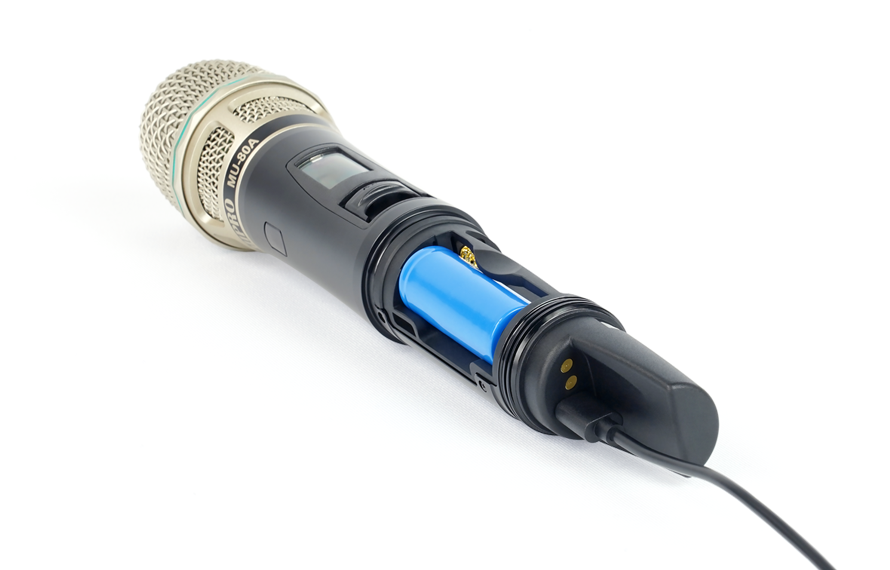

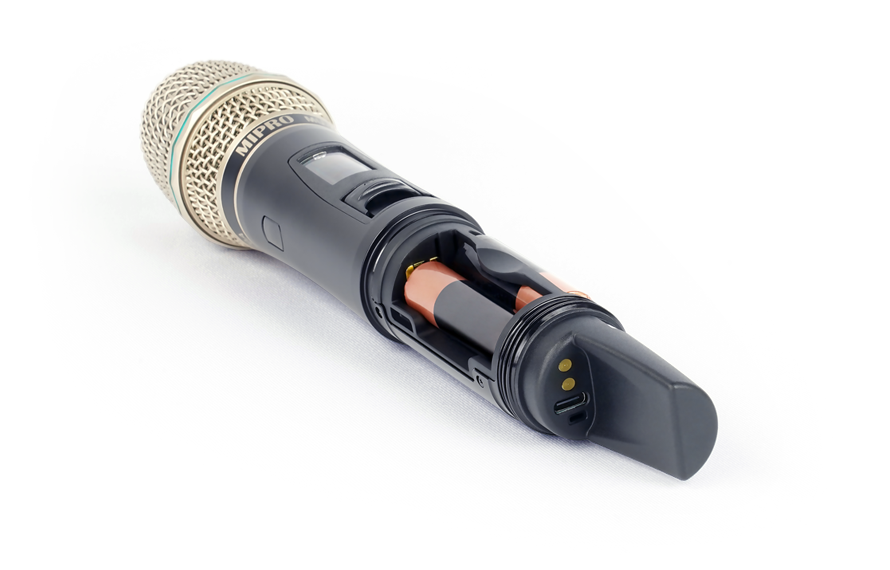

  • The patented battery compartment can be inserted with two AA-type batteries or one rechargeable battery, charging via USB Type-C with the foolproof and safe charging circuit.
  • A color-coded channel identification ring is put on the end of the housing. A patented antenna cover on the bottom of the housing built in a high-efficiency wideband transmitting antenna and USB Type-C charging socket.
  • Pair with all MIPRO’s new interchangeable microphone modules featuring high dynamic range for loud singing without distortion. Accepts some other brands’ microphone modules with similar specifications.
Product Introduction
ModelACT-240H
Name ISM 2.4 GHz Handheld Wireless Microphone
Frequency Range ISM 2.4 GHz (2,400~2,483.5 MHz)
RF Power Output 2 / 10 mW Switchable (country dependent)
Mic Capsule MU-70A condenser or MU-39A dynamic module.
Display Green backlit LCD
Gain Setting 0 dB = microphone capsule sensitivity
Battery One 18500 lithium-ion battery or two AA alkaline
Charging Type USB Type-C with the foolproof and safe charging circuit.
Dimensions 51 × 272 mm (Ø×L)
Weight Approx. 320 g
Note Refer to the actual product in the event of product discrepancy.

Download

Spec Sheet
ACT-240H 2.4 GHz Digital Handheld Transmitter (Ver.2021) 0.17M | 2021/08/18
User Guide
ACT Series Handheld Microphones (ACT-800H / ACT-700H / ACT-500H / ACT-300H / ACT-240H / ACT-580H) 3.52M | 2021/09/09
