• ACT-818
  • ACT-828

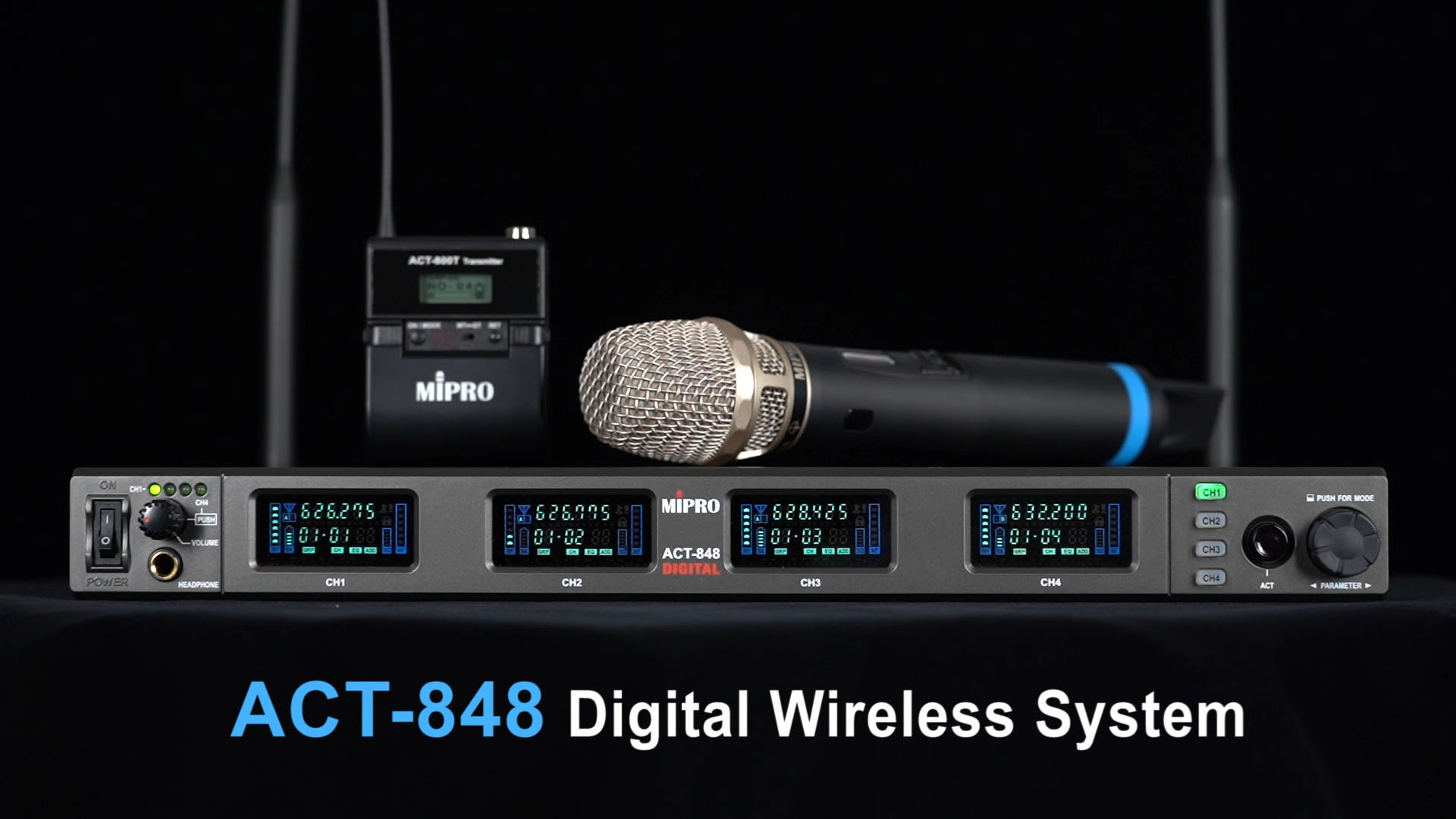

  • ACT-848
Product Name : ACT-800 Series

*The product images and specifications shown on our website may differ from the actual products due to different versions.

UHF
72
VFD
  • EIA standard metal chassis, with a newly designed color VFD, a rotary control knob and buttons equipped on the front panel. The analog audio output, AES/EBU digital output and MIPRO RCS2.Net interface connectors are equipped on the rear panel. ACT-848 or ACT-828 has a monitor headphone jack, and a Dante or AVB network interface output.
  • Exclusive 72 MHz wideband circuit increases interference-free compatible channels.
  • Digital diversity circuit greatly improves the reception range and the full-range sound quality is not affected by the strength of RF signals or operating distance.
  • Proprietary 256-bit encryption prevents eavesdropping.
  • The DSP audio processor and D/A converter make the sound quality almost the same as the wired microphone.

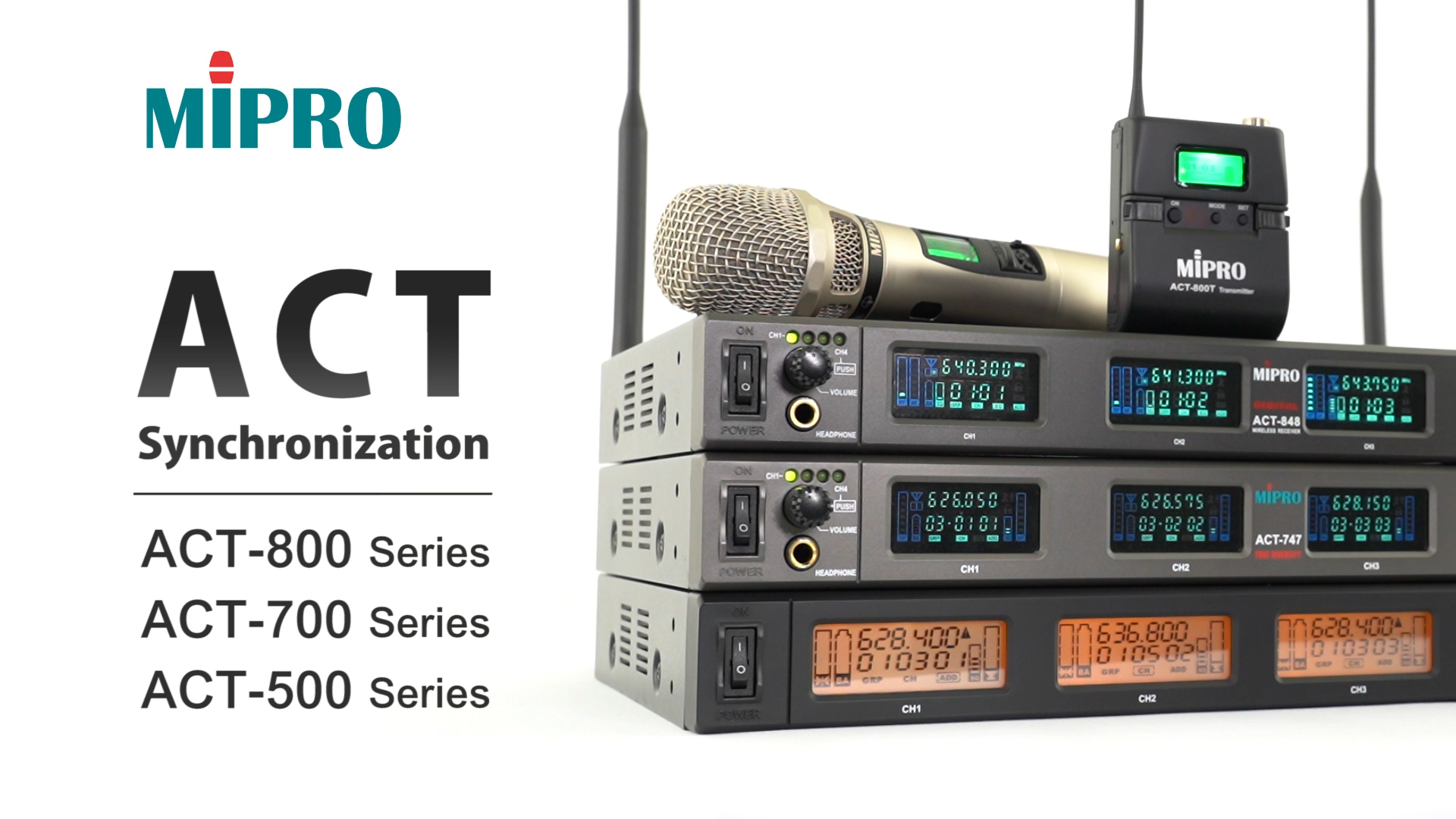

  • MIPRO Auto Scan and ACT™ function provide the transmitter’s frequency with precise and rapid sync to the receiver.
  • There are 7 preset groups with a total of 224 pre-saved channels. The user-defined group allows users to choose and save up to 16 channels from 2,881 available frequencies.
  • Each channel has separate audio output and 3 switchable output gains, and all is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
  • Optional Dante or AVB digital network interface for digital audio output. (for ACT-828 and ACT-848 only)

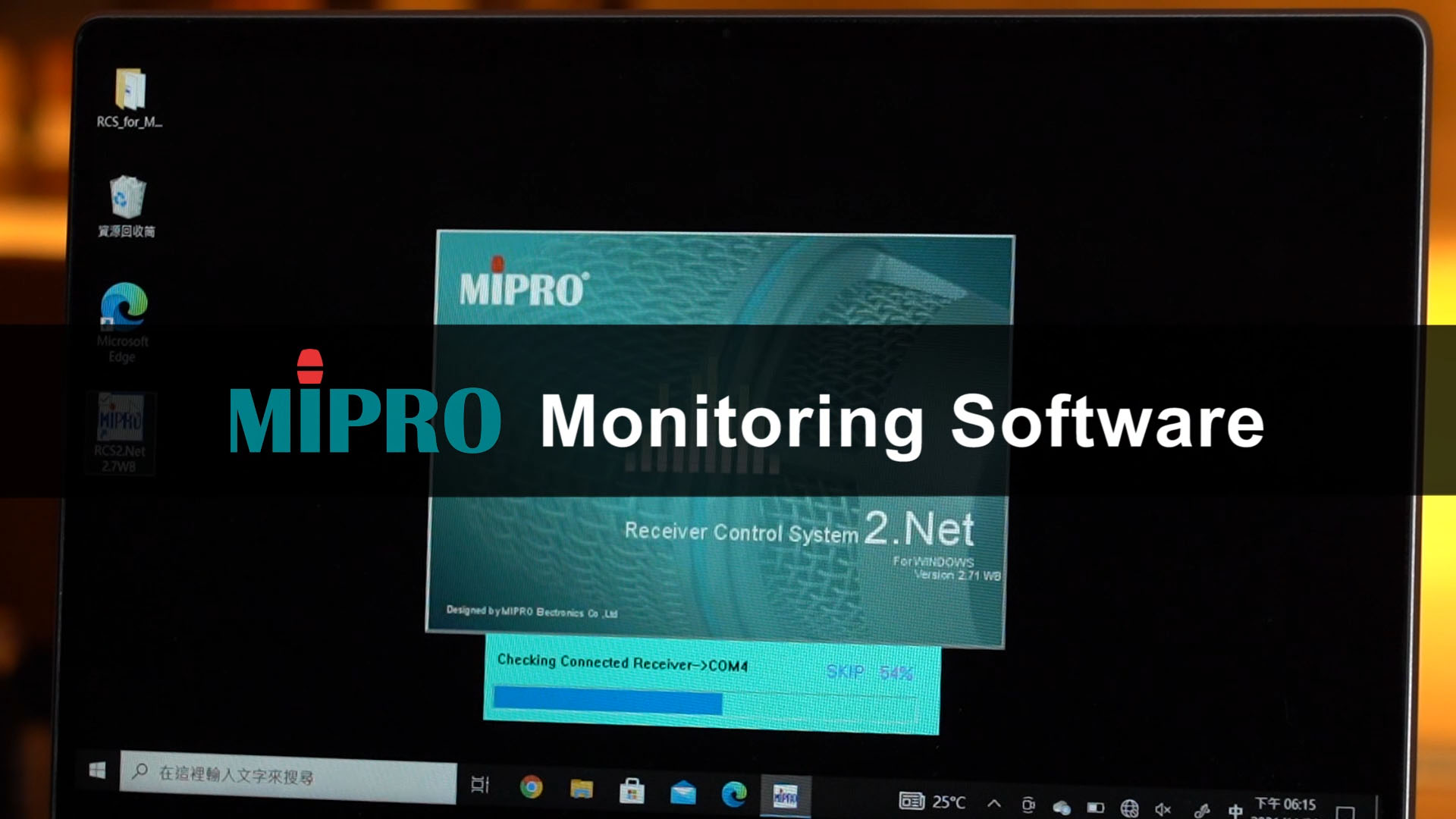

  • Optional MIPRO RCS2.Net software connects to MIPRO DVU drive connector and allows real-time network remote-controlling and monitoring up to 64 channels. Additional new FSA software connects to MIPRO DVU drive connector and allows users to calculate interference-free compatible channels and link to the network.
  • Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
  • External AC 100 – 240 V switching power supply ensures stable operation of the system even under drastic voltage change.
  • Pairs with ACT-800H handheld and ACT-800T bodypack transmitter.
  • All are designed and made in Taiwan to ensure high quality and value.
Product Introduction
ModelACT-818ACT-828ACT-848
Name UHF Digital Wideband Single-Channel Receiver UHF Digital Wideband Dual-Channel Receiver UHF Digital Wideband Quad-Channel Receiver
Channel Single Dual Quad
Chassis EIA standard half-rack (9.5") metal chassis EIA standard full-rack (19") metal chassis EIA standard full-rack (19") metal chassis
Monitor Output N/A Monitor headphone jack with volume control Monitor headphone jack with volume control
Network Interface N/A Dante or AVB (optional) Dante or AVB (optional)
Display Color VFD Color VFD Color VFD
Frequency Range UHF 480 – 934 MHz(country dependent) UHF 480 – 934 MHz(country dependent) UHF 480 – 934 MHz(country dependent)
Bandwidth 72 MHz 72 MHz 72 MHz
Receiving Mode Digital diversity receiving Digital diversity receiving Digital diversity receiving
Sensitivity 12 dBμV @ S/N > 100 dB 12 dBμV @ S/N > 100 dB 12 dBμV @ S/N > 100 dB
Audio Processing DSP audio processor eliminates the compander noise that exists in analog systems DSP audio processor eliminates the compander noise that exists in analog systems DSP audio processor eliminates the compander noise that exists in analog systems
Encryption 256-bit 256-bit 256-bit
Frequency Response 20 Hz – 20 kHz(< -2 dB) 20 Hz – 20 kHz(< -2 dB) 20 Hz – 20 kHz(< -2 dB)
Dynamic Range > 120 dBA > 120 dBA > 120 dBA
Latency 2.9 ms 2.9 ms 2.9 ms
Audio Output AES/EBU digital interface. Analog balanced output with 3 switchable levels: +16 dB / 0 dB / -6 dB AES/EBU digital interface. Analog balanced output with 3 switchable levels: +16 dB / 0 dB / -6 dB AES/EBU digital interface. Analog balanced output with 3 switchable levels: +16 dB / 0 dB / -6 dB
EQ Presets 10 digital audio and anti-feedback EQs Presets 10 digital audio and anti-feedback EQs Presets 10 digital audio and anti-feedback EQs
PC Interface USB Interface, MIPRO ACT-BUS for remote-control of up to 64 channels. FSA compatible channels calculator software allows users to manually set compatible channels. (sold separately) USB Interface, MIPRO ACT-BUS for remote-control of up to 64 channels. FSA compatible channels calculator software allows users to manually set compatible channels. (sold separately) USB Interface, MIPRO ACT-BUS for remote-control of up to 64 channels. FSA compatible channels calculator software allows users to manually set compatible channels. (sold separately)
Antenna Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems. Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems. Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems.
Power Supply DC 12 – 15 V. External AC 100 – 240 V switching power supply DC 12 – 15 V. External AC 100 – 240 V switching power supply DC 12 – 15 V. External AC 100 – 240 V switching power supply
Dimensions 210 × 44 × 163 mm (W × H × D) 420 × 44 × 219 mm (W × H × D) 420 × 44 × 219 mm (W × H × D)
Weight Approx. 1.0 kg Approx. 2.1 kg Approx. 2.3 kg
Note Refer to the actual product in the event of product discrepancy Refer to the actual product in the event of product discrepancy Refer to the actual product in the event of product discrepancy

Download

DOC
ACT-800 Series Wideband Digital Receiver (ACT-818 / ACT-828 / ACT-848) 0.38M | 2021/02/04
Spec Sheet
ACT-818 UHF Digital Wideband Single-Channel Receiver (Ver.2023) 0.27M | 2023/03/15
ACT-828 UHF Digital Wideband Dual-Channel Receiver (Ver.2023) 0.27M | 2023/03/15
ACT-848 UHF Digital Wideband Quad-Channel Receiver (Ver.2023) 0.30M | 2023/03/15
User Guide
ACT-800 Series Wideband Digital Receivers (ACT-818 / ACT-828 / ACT-848) 6.04M | 2023/09/26
