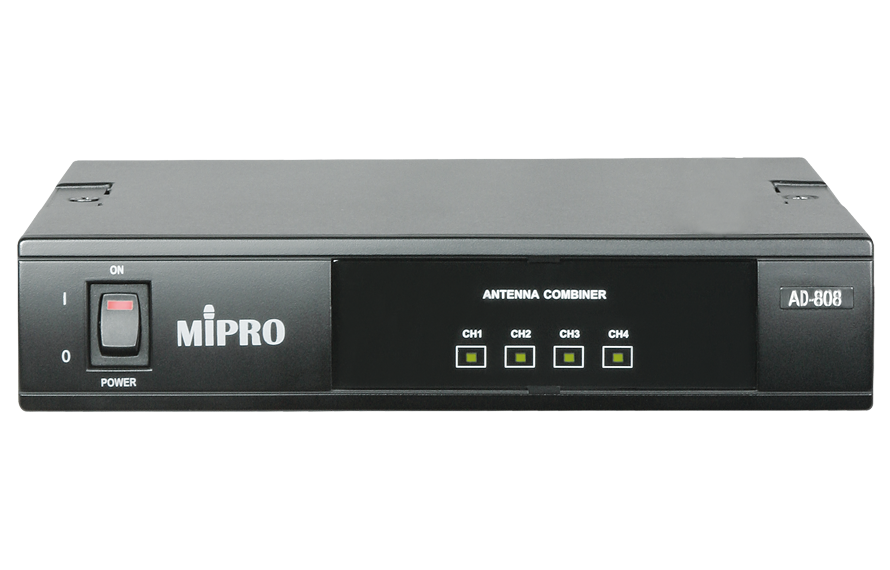

AD-808 UHF 4-channel Transmitting Antenna Combiner
*The product images and specifications shown on our website may differ from the actual products due to different versions.
UHF
- Features 3rd order IM < -57 dBc under full band performance at +15 dBm two-tone test.
- Designed for combining the signal outputs of 2 to 4 MI-909T transmitters into 1 signal output and transmitting by one antenna to simplify the antenna system installation and greatly eliminate intermodulation distortion, the AD-808 is an essential device for professional stages.
Product Introduction
| Model | AD-808 |
|---|---|
| Name | UHF 4-channel Transmitting Antenna Combiner |
| Frequency Band | UHF 470 – 960 MHz |
| Gain | 0 dB ± 2 dB |
| Max. RF Input Power | 20 dBm (100 mW) |
| Intermodulation Distortion | < -57 dBc |

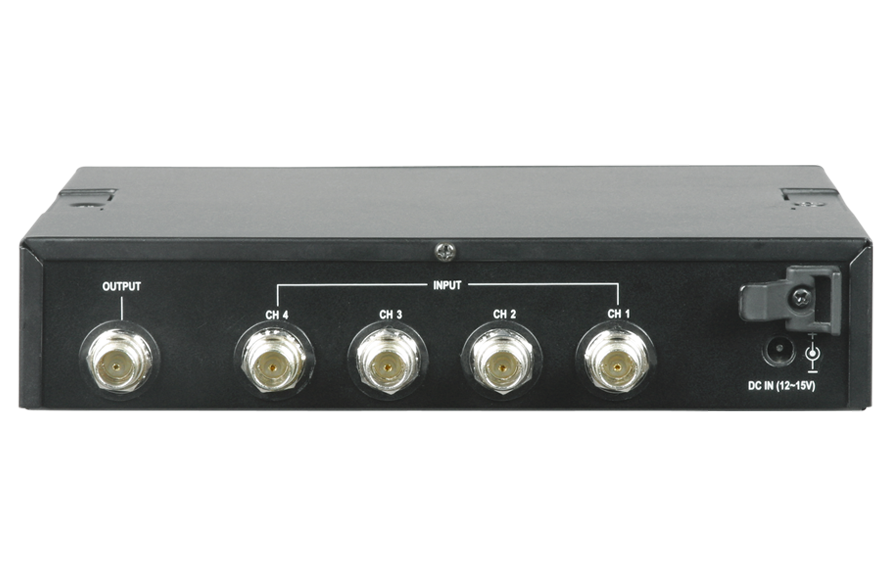

| Input Connectors | 4 × TNC |
| Output Connectors | 1 × TNC |
| System Impedance | 50 Ω |
| Power Supply | DC 12 – 15 V, AC 100 – 240 V |
| Dimensions | 210 × 44 × 204 mm (W × H × D) |
| Weight | Approx. 1.1 kg |
Download
| Spec Sheet | |||||
|---|---|---|---|---|---|
 |
AD-808 | UHF 4-channel Transmitting Antenna Combiner (Ver.2024) | 0.20M | 2024/03/19 |  |
|
| User Guide | |||||
|---|---|---|---|---|---|
 |
AD-808 | UHF 4-channel Transmitting Antenna Combiner | 1.10M | 2023/01/12 | |
|
