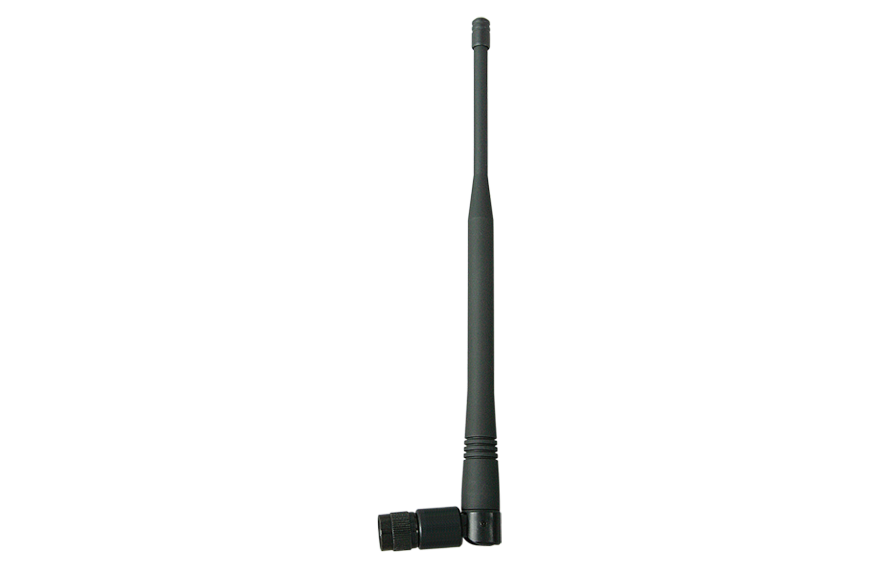

AT-20 Coaxial Antenna
*The product images and specifications shown on our website may differ from the actual products due to different versions.
- A 1/2 wave coaxial antenna features wideband, omnidirectional reception.
- Directly mounts on the receiver for increasing sensitivity and operating range.
Product Introduction
| Model | AT-20 |
|---|---|
| Name | Coaxial Antenna |
| Type | Attachment antenna |
| Frequency Range | UHF 480 ~ 960 MHz |
| Antenna Gain | 2.15 dBi |
| Built-in Booster | N/A |
| Connectors | TNC male |
| Power Supply | Not required |
| Impedance | 50 Ω |
| Note | Refer to the actual product in the event of product description discrepancy. |
Download
| Spec Sheet | |||||
|---|---|---|---|---|---|
 |
AT-20 | Coaxial Antenna (Ver.2021) | 0.12M | 2021/08/23 |  |
|
