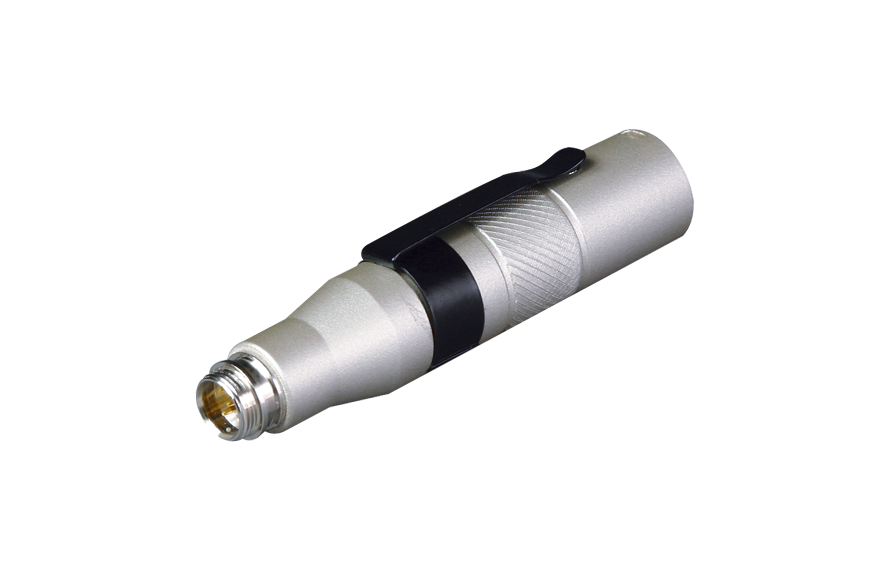

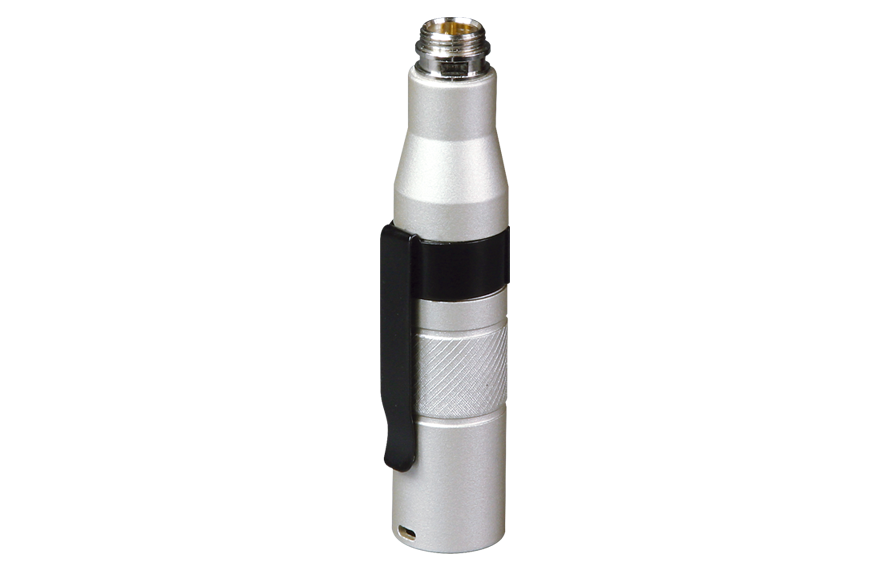

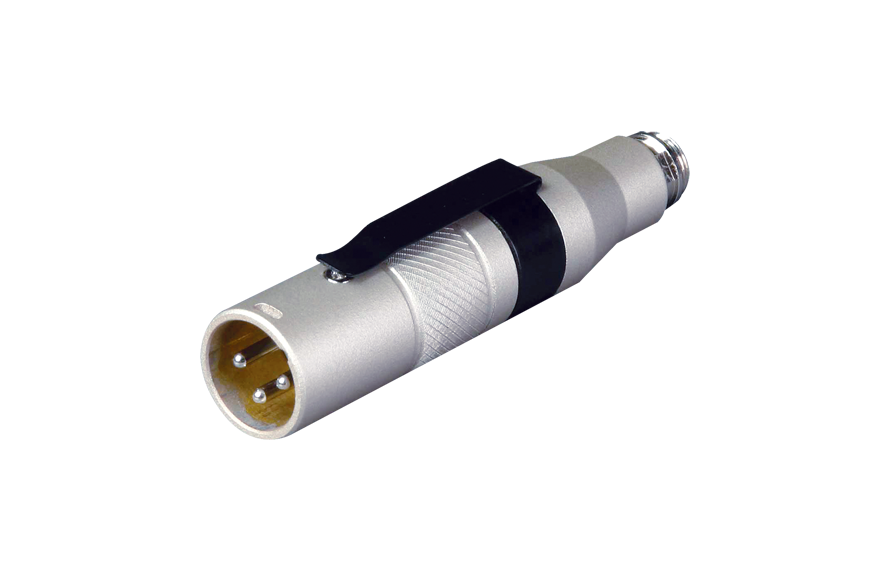

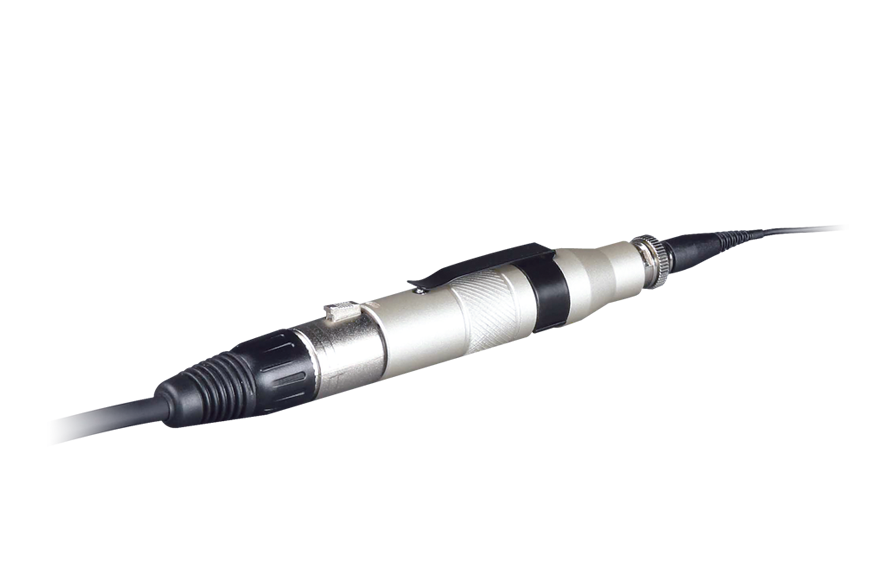

MJ-53 Condenser Microphone Adapter
*The product images and specifications shown on our website may differ from the actual products due to different versions.
- Accepts a XLR condenser microphone with a MIPRO 4-Pin Mini XLR plug.
- Connects to the XLR jack input of a mixer which provides 12 to 48 V DC phantom power.
- Balanced output transforms the high output impedance of a condenser microphone to a wide frequency response, high dynamic range, high S/N ratio, and low output impedance at about 200 Ω.
- Prevents noise interference in long-distance transmission.
- Rugged metal housing ensures long operating life.
- A belt clip provides for easy wearing.
Product Introduction
| Model | MJ-53 |
|---|---|
| Name | Condenser Microphone Adapter |
| Frequency Response | 50 Hz (-3 dB) to 20 kHz (0 dB) ＠ 94 dB SPL |
| Output Impedance | 200Ω ＠ 1 V / 1 kHz (Balanced) |
| Max. Output Voltage | 2.52 V ＠ 1 kHz, 1.0% THD |
| Dynamic Range | 120 dBA |
| Connector Type | Input: MIPRO 4-Pin Mini XLR Output: XLR |
| Phantom Power | DC 12 – 48 V | Current Drain: 2.0 mA |
| Dimensions | 19 × 90 mm (Ø × L) |
| Weight | Approx. 67 g |
Download
| Spec Sheet | |||||
|---|---|---|---|---|---|
 |
MJ-53 | Condenser Microphone Adapter (Ver.2024) | 0.16M | 2024/03/21 |  |
|
