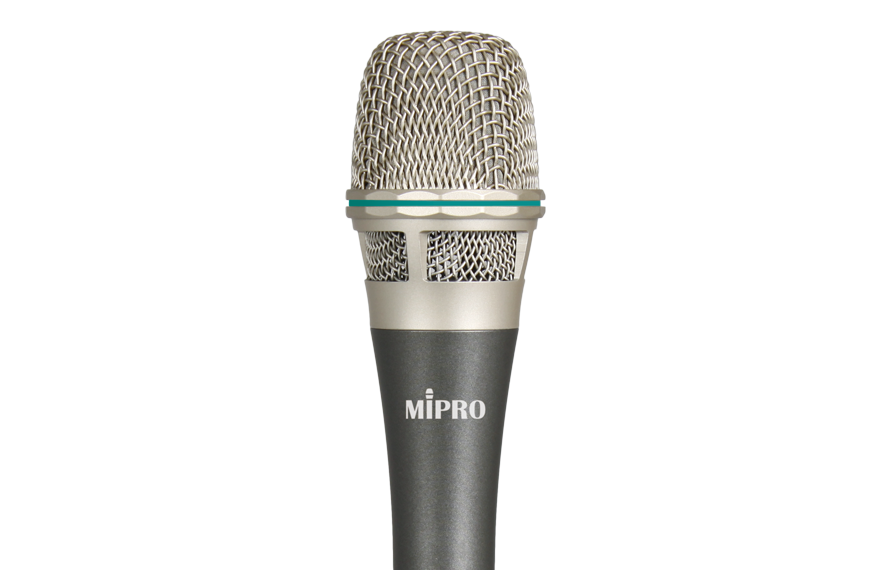

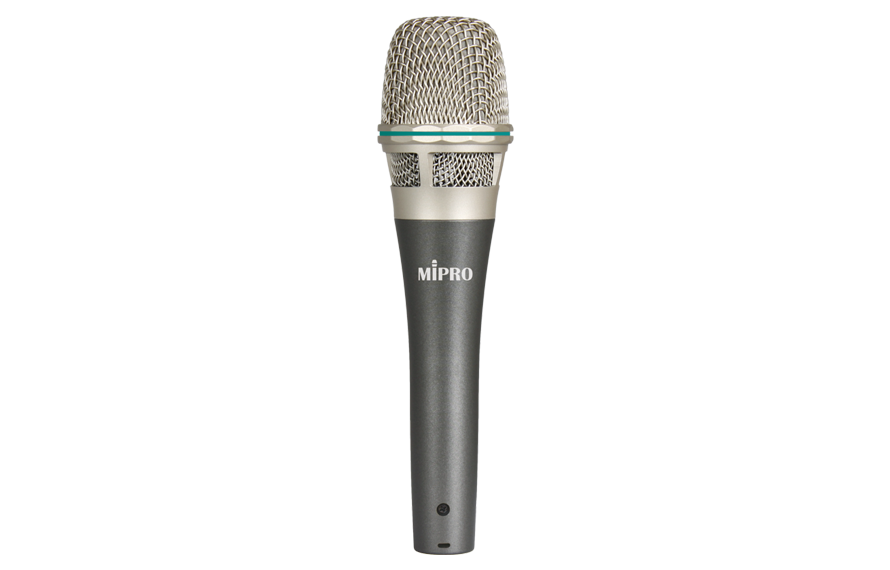

MM-80 Cardioid Vocal Microphone
*The product images and specifications shown on our website may differ from the actual products due to different versions.
- MM-80 equips an MU-80 premium cardioid condenser capsule module and features superb directionality and feedback suppression. Sustains excessive volume without distortion. It is ideal for most singers in live performances or most people in the KTV.
- MM-90 equips an MU-90 premium supercardioid condenser capsule module and features superb directionality and feedback suppression. Sustains excessive volume without distortion. It is ideal for professional singers in large live shows or those fields requiring optimal sound quality.
Product Introduction
Model | MM-80 | MM-90 |
---|---|---|
Name | Cardioid Vocal Microphone | Supercardioid Vocal Microphone |
Capsule Module | MU-80 | MU-90 |
Polar Pattern | Cardioid | Supercardioid |
Capsule Installation | Interchangeable | Interchangeable |
Housing | Die-cast zinc alloy | Die-cast zinc alloy |
Sensitivity | -46±3 dBV / Pa, switchable gain settings of -6 dB on the capsule. | -46±3 dBV / Pa, switchable gain settings of -6 dB on the capsule. |
Frequency Response | 50 Hz ~ 20 kHz, at 94 dB SPL | 50 Hz ~ 20 kHz, at 94 dB SPL |
Self-Noise | < 17 dBA SPL | < 17 dBA SPL |
S/N Ratio | > 78 dB, at 94 dB SPL | > 78 dB, at 94 dB SPL |
Max. Input SPL | 149 dB | 149 dB |
Dynamic Range | 132 dB | 132 dB |
Power Supply | External phantom power 12 ~ 48 V DC | External phantom power 12 ~ 48 V DC |
Current Consumption | 2.0 mA | 2.0 mA |
Output Impedance | 200 Ω | 200 Ω |
Dimensions | 51 × 200 mm (Ø×L) | 51 × 200 mm (Ø×L) |
Weight | Approx. 410 g | Approx. 410 g |
Note | Refer to the actual product in the event of product description discrepancy. | Refer to the actual product in the event of product description discrepancy. |
