Product Name : Instrument Transmitter

*The product images and specifications shown on our website may differ from the actual products due to different versions.


  • New Product

  • Red Dot Award

  • Digital

  • ISM Band

  • ISM 5 GHz

  • LED Display

  • ACT™ Channel Synchronization

  • Li-ion

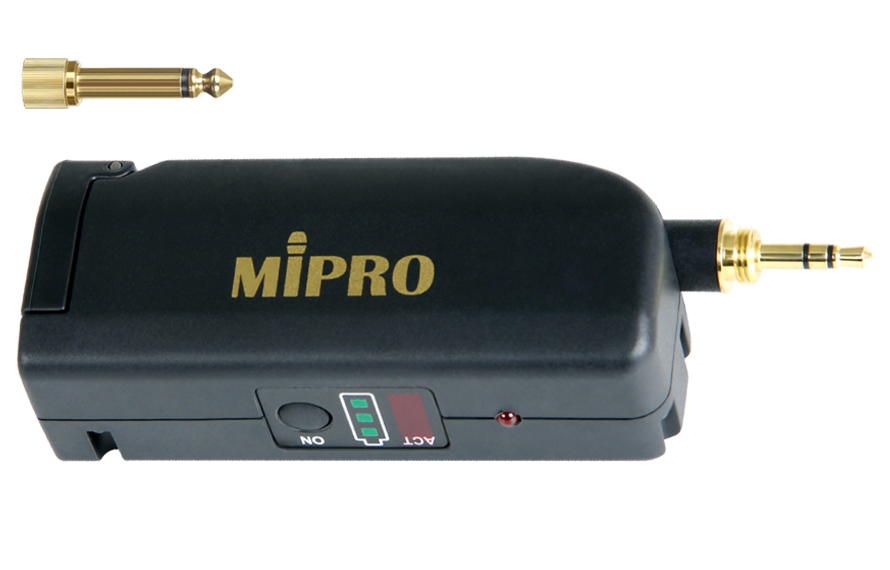

  • The MT-58 is a digital transmitter with a rotatable Ø 6.3 mm phone jack for easy fitting to a music instrument, PC or projector with a built-in pickup.
  • The compact MT-58 can be snugly attached to the instruments with various instrument holders and is easy to install and remove. It can be paired with an MR-58 digital pedal receiver to get rid of the problem of tangled cables for carefree performance with truly wireless transmission.
  • The MT-58 operates in ISM 5 GHz frequency band and eliminates the interference from 2.4 GHz telecommunication products as well as the UHF band, which has more and more severe interference and strict telecom regulations, thus it has excellent performance especially for instrument signals. Its digital circuitry design eliminates the distortion caused by the analog system, and the natural sound of the musical instruments can be reproduced.
Product Introduction
ModelMT-58
Name Musical Instrument Digital Transmitter
Matching Receiver MR-58 Wireless Pedal Receiver
Frequency Range ISM 5.8 GHz (5,725~5,850 MHz)
RF Power Output 20 mW (country dependent)
Max. Audio Input 6.5 dBV
Battery Meter 4-level green/red LED display
Impedance Approx. 1 M Ω
Battery ICR 18500 lithium-ion battery
Dimensions 84 × 35 × 29 mm (W×H×D)
Weight Approx. 61 g
Note Refer to the actual product in the event of product discrepancy.

Download

Spec Sheet
MT-58 ISM 5 GHz Digital Transmitter (Ver.2021) 0.16M | 2021/12/07
