Product Name : UHF Wind Instrument Transmitter Set

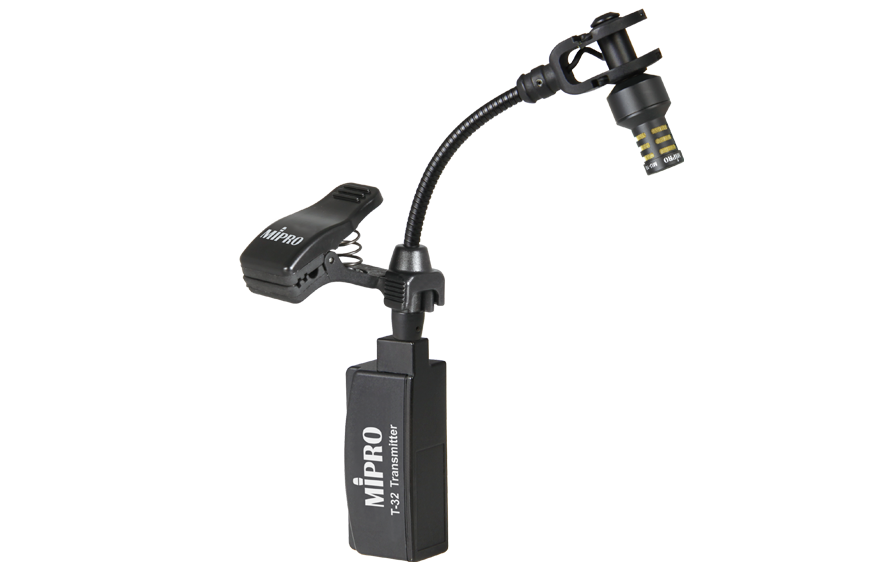

  • The ST-32 wireless saxophone transmitter is a SM-32 integrated with a transmitter for wireless transmission to the analog receivers of the ACT Series or the MA Series wireless PA system.
  • Simply clamp the ST-32 transmitter module snugly with SH-10S clip to a saxophone or other wind instrument. The compact, lightweight ST-32 is easy to install and remove. Strategically placed in flexible positions, it will not interfere during performances.
Product Introduction
Name UHF Wind Instrument Transmitter Set
Wireless Transmission Type UHF analog modulation
Frequency Range UHF 480 ~ 934 MHz
RF Output Power 10 ~ 30 mW switchable (country dependent)
Capsule Module MU-10 / MU-16 / MU-20 interchangeable condenser microphone capsule modules
Transmitter Rechargeable analog transmitter
Receiver ACT Series analog receivers
Installation Mount the ST-32 with SH-10S clip in a position that picks up the accurate sound of the saxophone.
Frequency Set-up ACT sync
Battery Rechargeable lithium battery
Operating Time Min. 4 hours. A 10-minute quick charge provides up to 40 minutes operation.
Charger An adaptor
Dimensions 64 × 228 × 44 mm (W×H×D)
Weight Approx. 81 g, battery included, excluding microphone modules
Note Refer to actual product in the event of product discrepancy.


Spec Sheet
ST-32 UHF Wind Instrument Transmitter Set (Ver.2022) 0.16M | 2022/02/18
User Guide
ST-32 UHF Wind Instrument Transmitter Set 3.06M | 2022/04/19
