ACT-240T | 2.4 GHz Digital Bodypack Transmitter | MIPRO

MORE

COMPARE

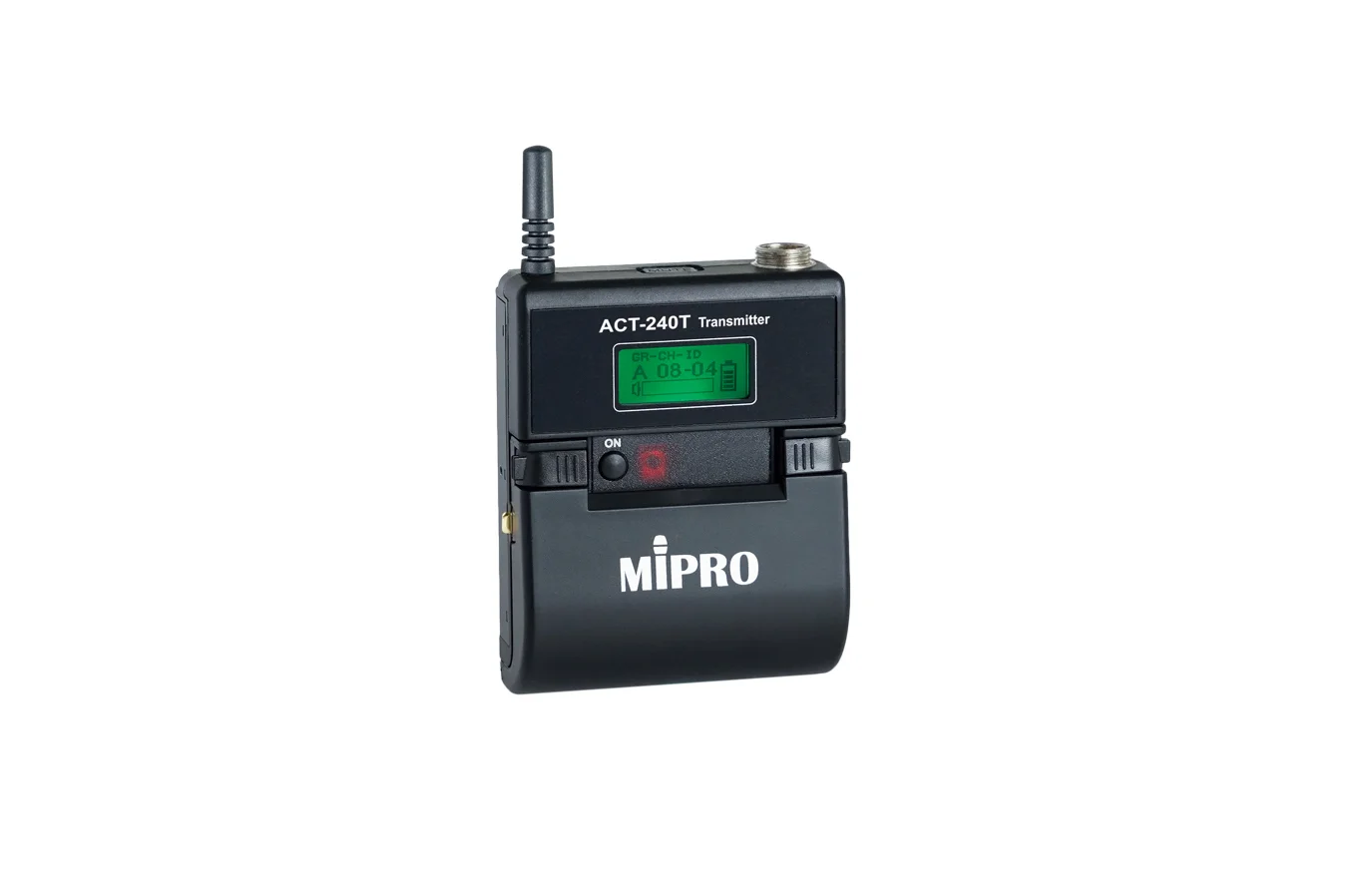

ACT-240T

2.4 GHz Digital Bodypack Transmitter

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Digital

ISM

2.4 GHz

LCD

ACT Sync

4-Pin Mini XLR

AA

Li-ion

USB-C

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

  • FEATURES

    • MIPRO’s digital bodypack transmitter operating in the 2.4 GHz ISM band is designed for use with MIPRO 2.4 GHz receivers and portable PA systems, ideal for education, presentations, and small venues.
    • Compact and streamlined housing design for stable and comfortable belt-worn use.
    • A backlit LCD clearly displays channel, battery level, and AF signal strength.
    • Offers both onboard mute switch and external mute control for flexible operation.
    • Features a MIPRO 4-Pin Mini XLR input compatible with MIPRO’s full range of lavalier and headworn microphones, as well as instrument microphones.
    • Wide dynamic range audio input supports high and low impedance sources and prevents signal overload and distortion.
    • Incorporates MIPRO’s exclusive ACT™ function for fast and accurate frequency synchronization.

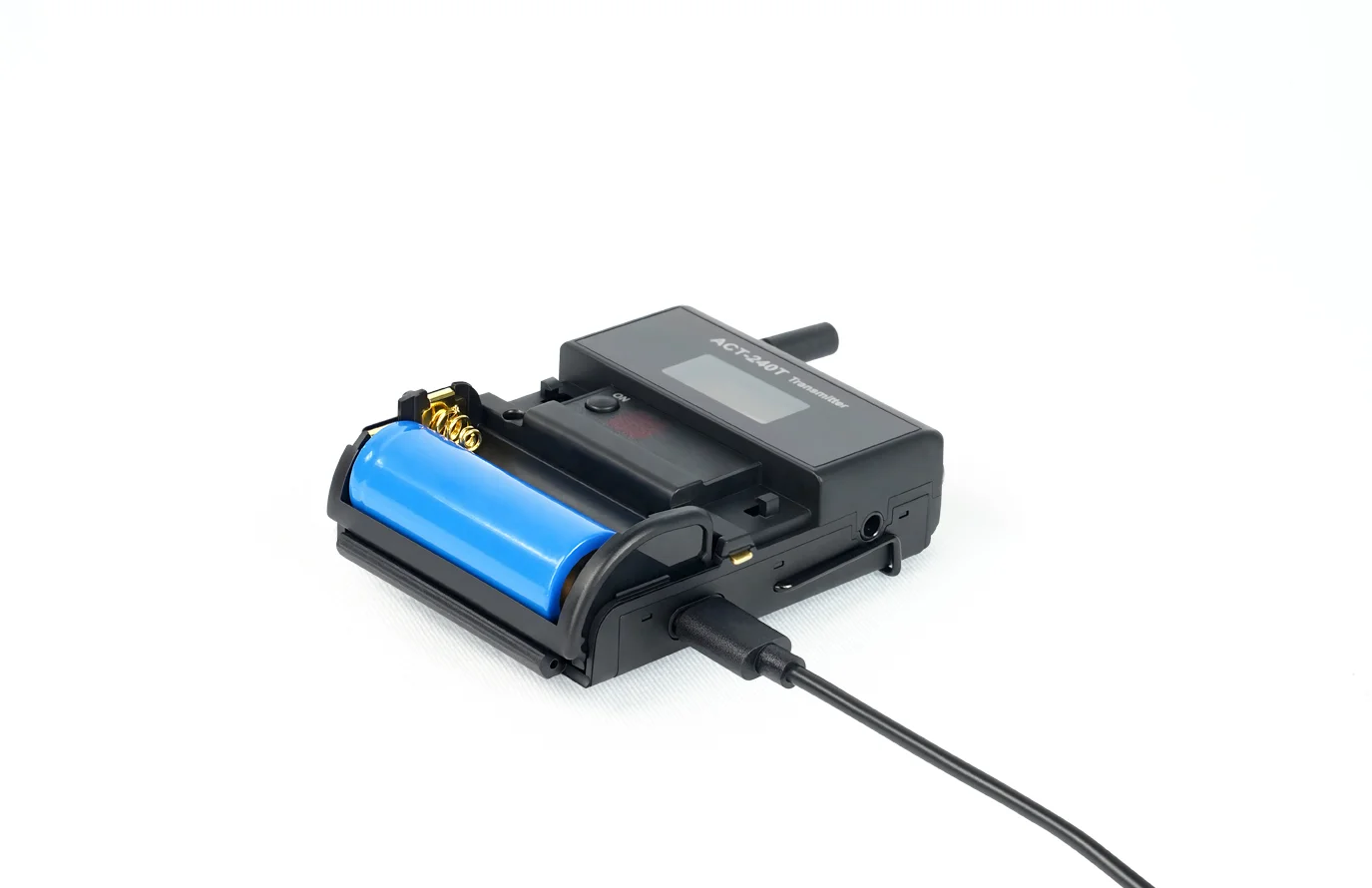

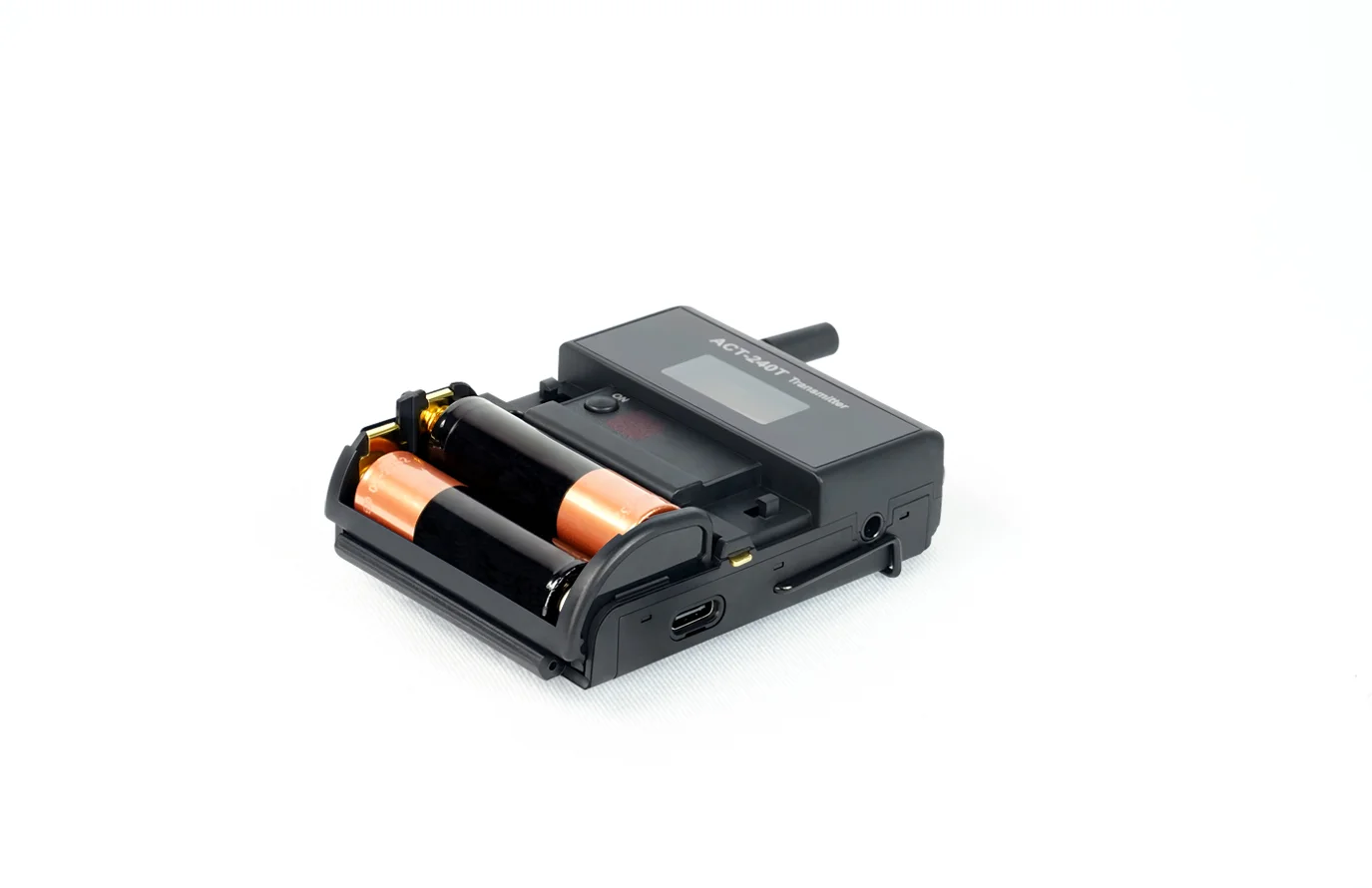

    • Patented dual-purpose battery compartment allows quick switching between AA and rechargeable Li-ion batteries.
    • USB Type-C charging interface with foolproof protection circuitry allows cable charging.
    • Detachable metal belt clip allows upright or inverted mounting for secure and convenient wearing.

    SPECIFICATION

    Model

    ACT-240T

    Name

    2.4 GHz Digital Bodypack Transmitter

    Frequency Range

    ISM 2.4 GHz

    Bandwidth

    83.5 MHz

    Display

    Backlit LCD displays channel, battery status, AF meters

    Control Interface

    ACT sync sensor and mute button

    Mic. Capsule Modules

    MIPRO lavalier and headworn mics

    Input Connector

    MIPRO 4-Pin Mini XLR

    Max. Audio Input

    6.5 dBV

    RF Power Output

    2 mW / 10 mW switchable (country dependent)

    Power Supply

    One 18500 Li-ion battery or two AA alkaline

    Battery Charging

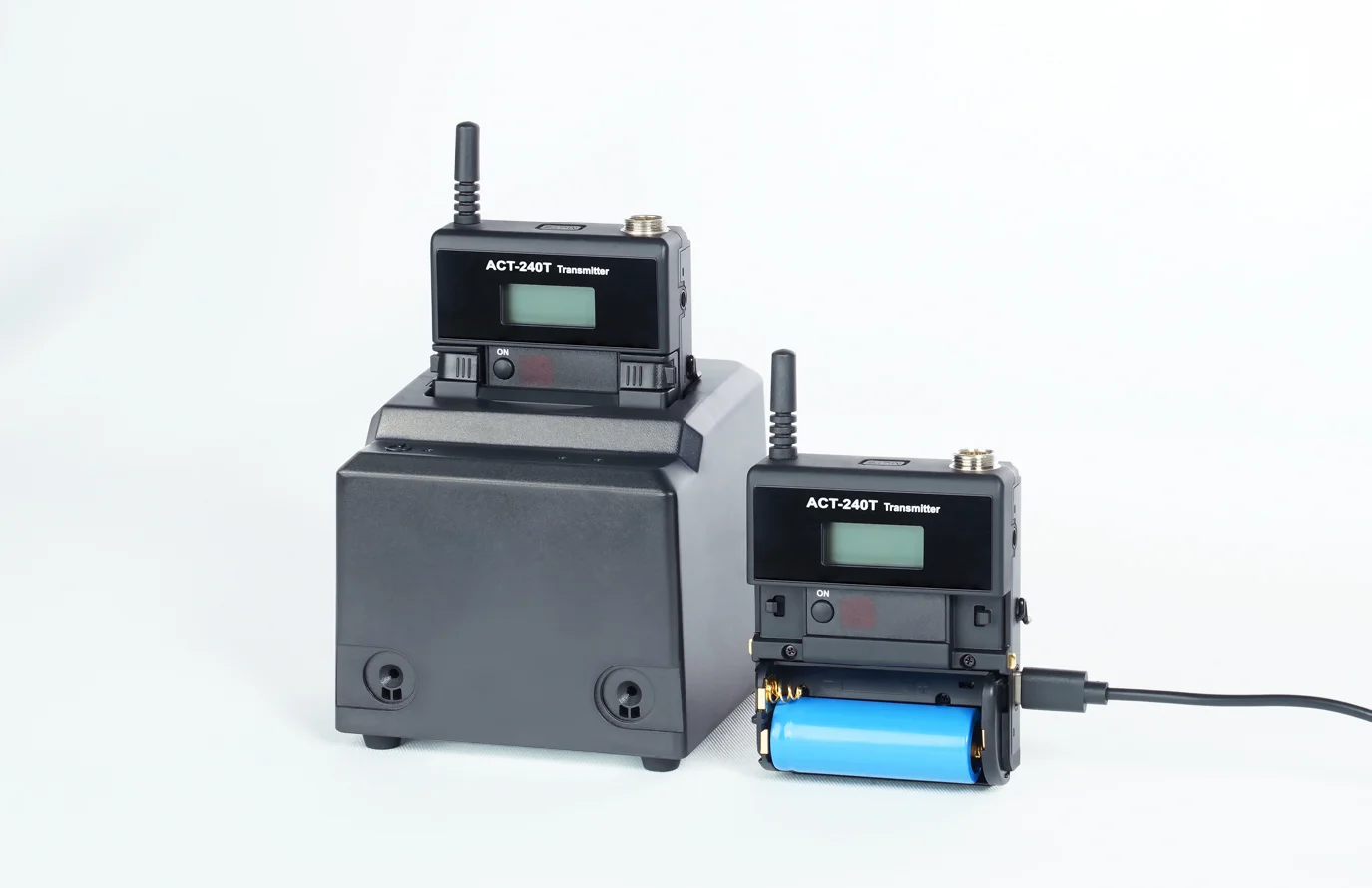

    MP-800 / MP-820 charging dock or USB Type-C

    Dimensions

    63 × 80 × 25 mm (W × H × D)

    Weight

    Approx. 83 g
