ACT-32T | UHF Analog Bodypack Transmitter | MIPRO

COMPARE

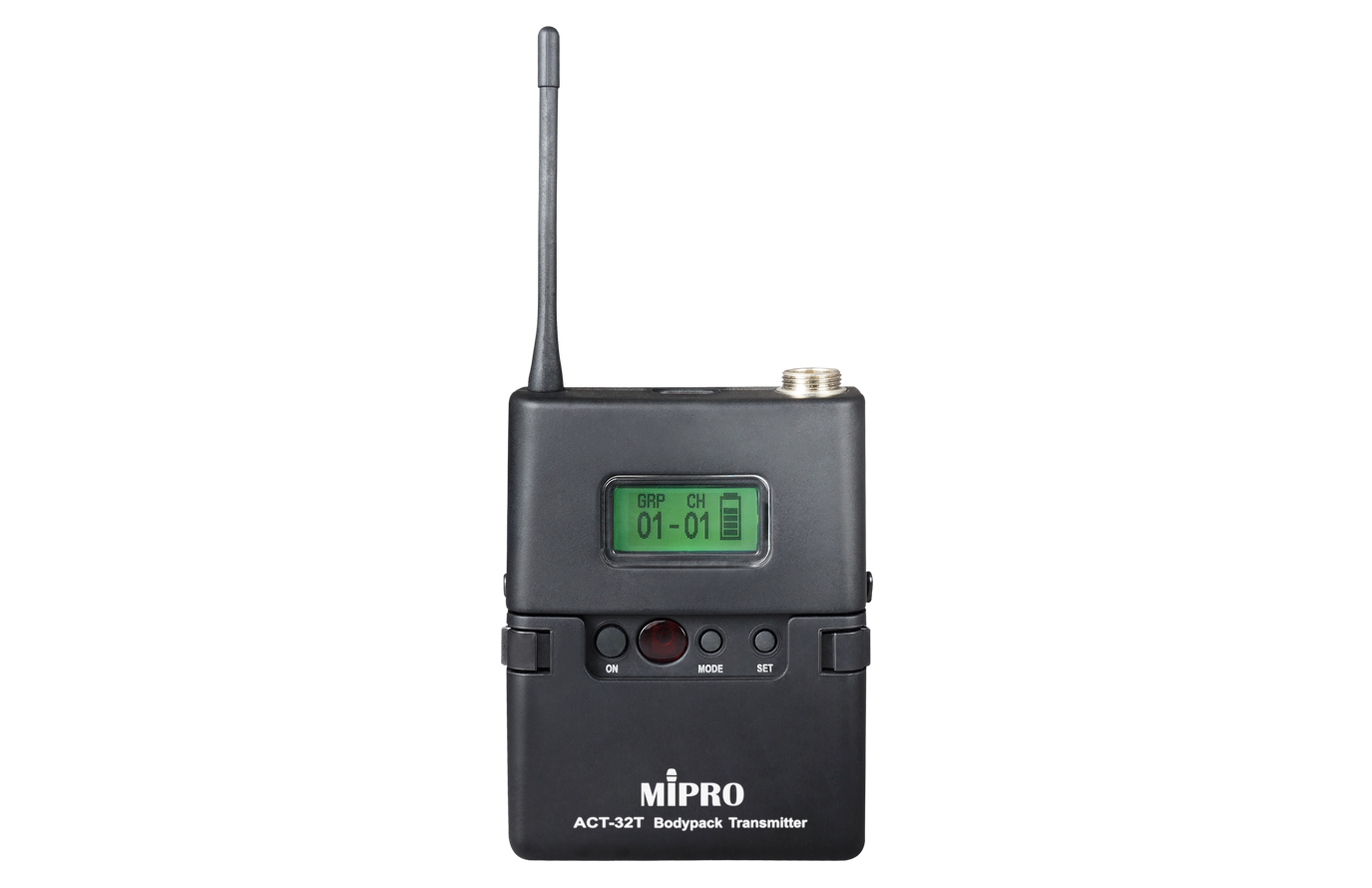

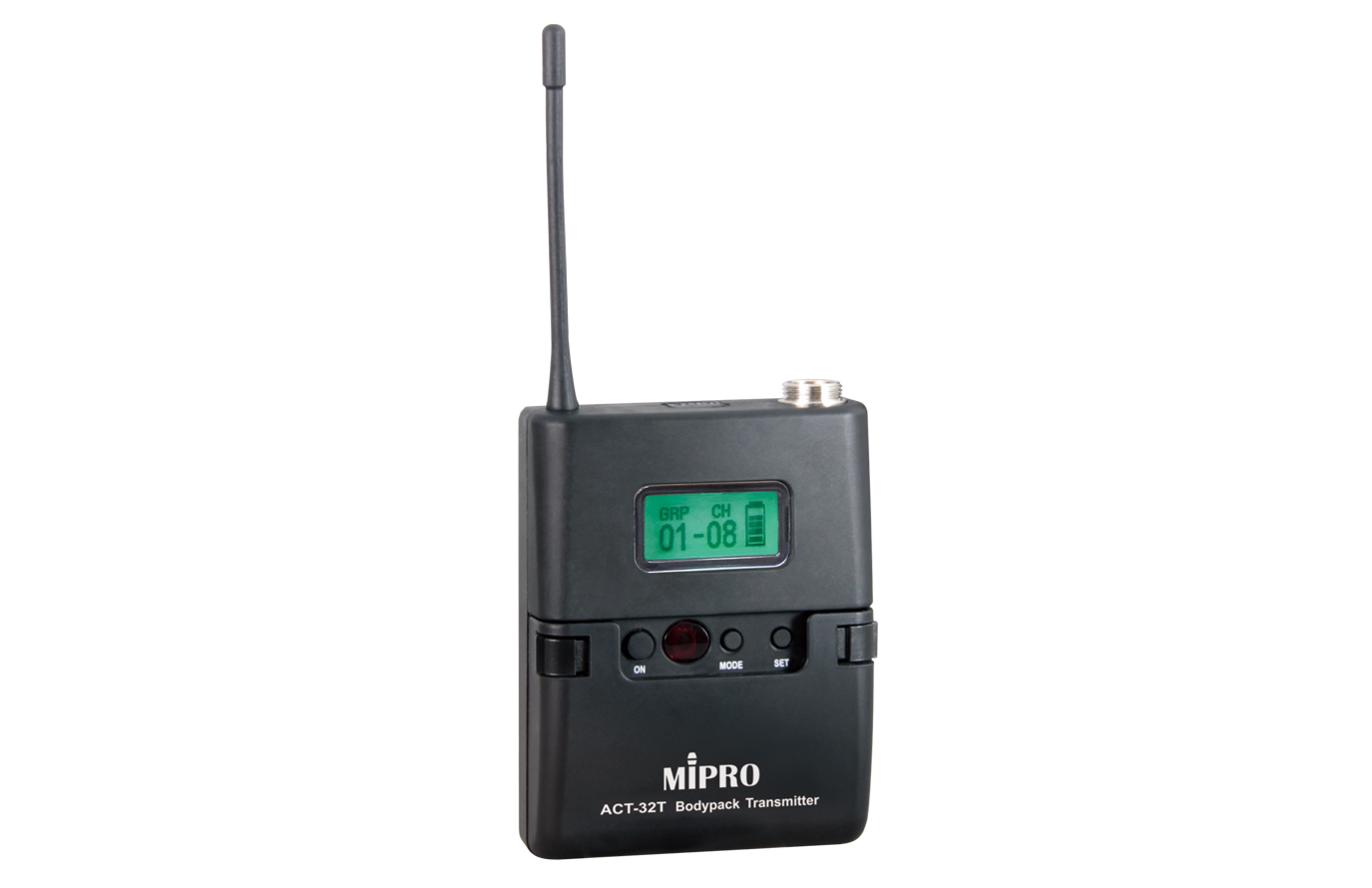

ACT-32T

UHF Analog Bodypack Transmitter

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Analog

UHF

24 MHz

LCD

ACT Sync

4-Pin Mini XLR

AA

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

  • FEATURES

    • MIPRO’s UHF narrowband analog bodypack transmitter is compatible with ACT-300 Series receivers and wireless portable PA systems, making it ideal for a variety of applications.
    • Compact and streamlined housing design for stable and comfortable belt-worn use.
    • A backlit LCD clearly displays group, channel, and battery status.
    • Supports essential settings including mute mode, input sensitivity adjustment, RF output power, and lock.
    • Offers both onboard mute switch and external mute control for flexible operation.
    • Features a MIPRO 4-Pin Mini XLR input compatible with MIPRO’s full range of lavalier and headworn microphones, as well as instrument microphones.
    • Five-stage input gain adjustment allows optimal input level control for clear, distortion-free audio.
    • Incorporates MIPRO’s exclusive ACT™ function for fast and accurate frequency synchronization.
    • A simple battery compartment holds two AA batteries for quick and convenient replacement.
    • Detachable metal belt clip allows upright or inverted mounting for secure and convenient wearing.

    SPECIFICATION

    Model

    ACT-32T

    Name

    UHF Analog Bodypack Transmitter

    Frequency Range

    UHF 480–934 MHz (country dependent)

    Bandwidth

    24 MHz

    Display

    Backlit LCD displays channel, battery status and menus

    Control Interface

    ACT sync sensor, setting buttons and mute button

    Mic. Capsule Modules

    MIPRO lavalier and headworn mics

    Input Connector

    MIPRO 4-Pin Mini XLR

    Audio Control

    AF Gain

    Max. Audio Input

    0 dBV

    Gain Setting

    -12 dB to +12 dB / 6 dB per segment

    RF Power Output

    10 mW / 50 mW switchable (country dependent)

    Power Supply

    Two AA alkaline

    Dimensions

    63 × 82 × 22 mm (W × H × D)

    Weight

    Approx. 86 g
