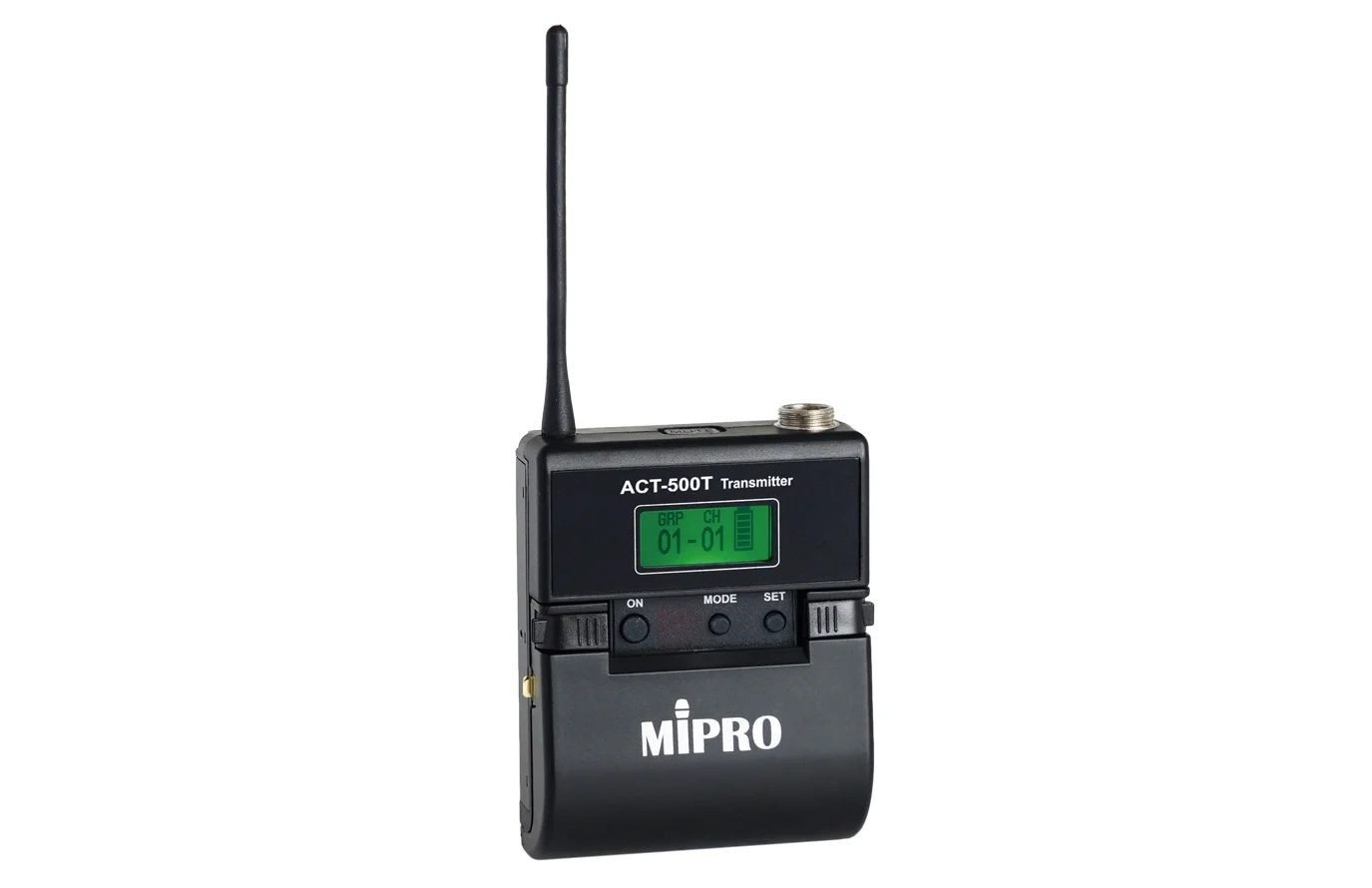

ACT-500T

UHF Analog Bodypack Transmitter

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Analog

UHF

24 MHz

LCD

ACT Sync

4-Pin Mini XLR

AA

Li-ion

USB-C

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

  • FEATURES

    • MIPRO’s narrowband analog bodypack transmitter is designed for use with the ACT-500 Series receivers, delivering stable and reliable performance for a wide range of professional applications.
    • Compact and lightweight housing with a streamlined design ensures secure and comfortable belt-worn use.
    • A backlit LCD clearly displays group, channel, battery level, and key operational information.
    • Supports essential settings including mute mode, input sensitivity adjustment, RF output power, and lock.
    • Offers both onboard mute switch and external mute control for flexible operation.
    • Features a MIPRO 4-Pin Mini XLR input compatible with MIPRO’s full range of lavalier and headworn microphones, as well as instrument microphones.
    • Five-stage input gain adjustment allows optimal input level control for clear, distortion-free audio.
    • Incorporates MIPRO’s exclusive ACT™ function for fast and accurate frequency synchronization.

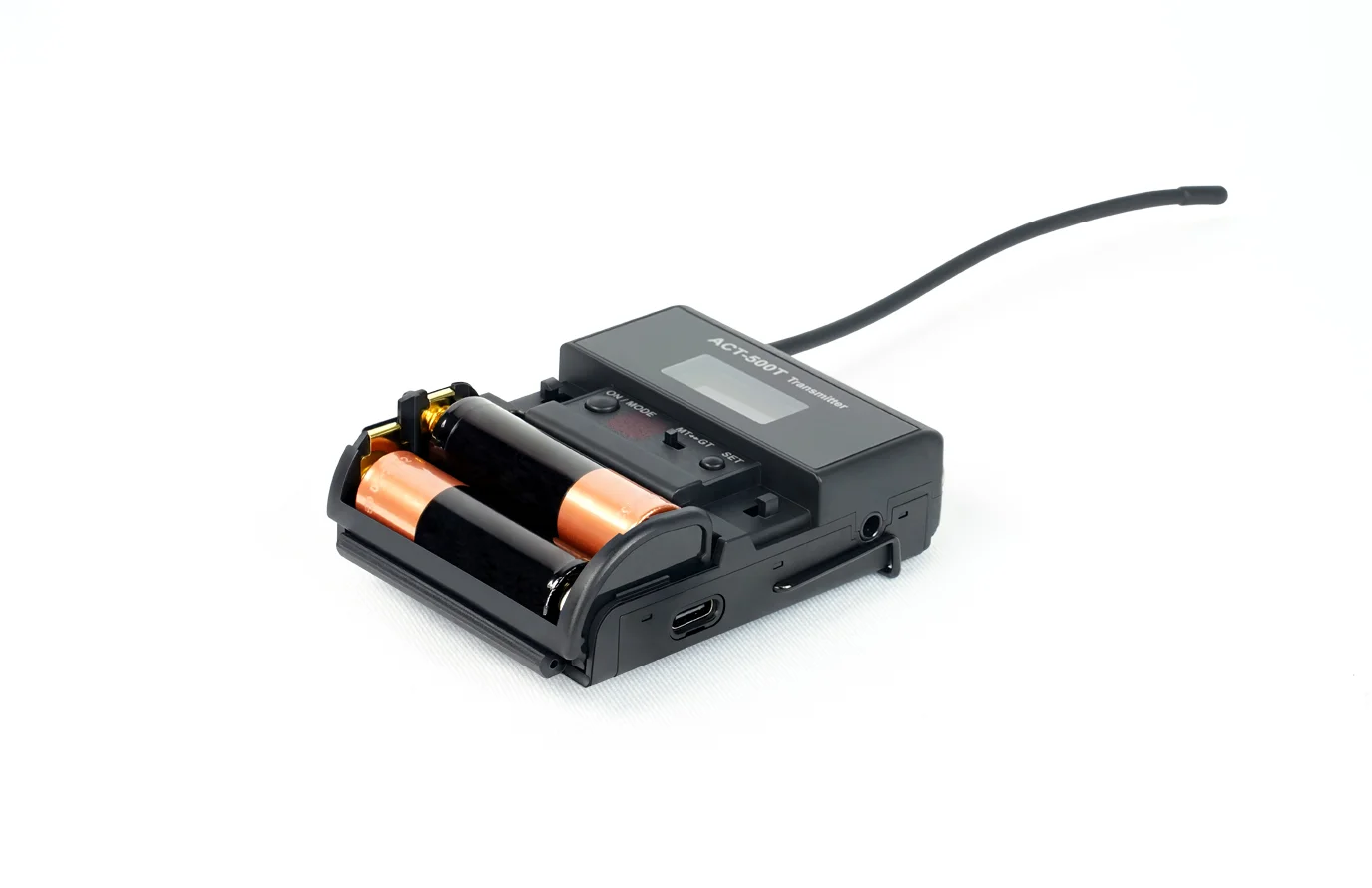

    • Patented dual-purpose battery compartment allows quick switching between AA and rechargeable Li-ion batteries.

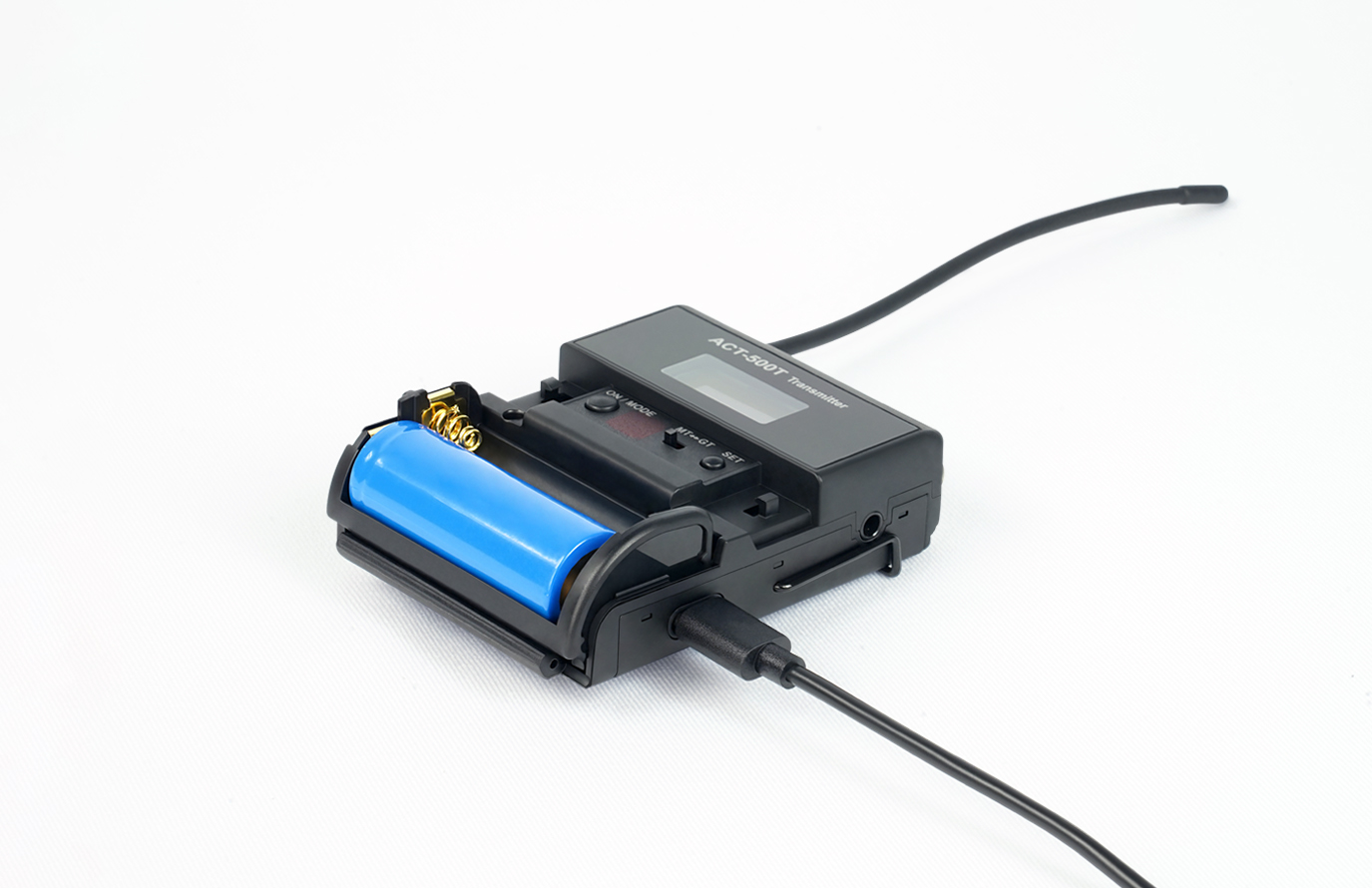

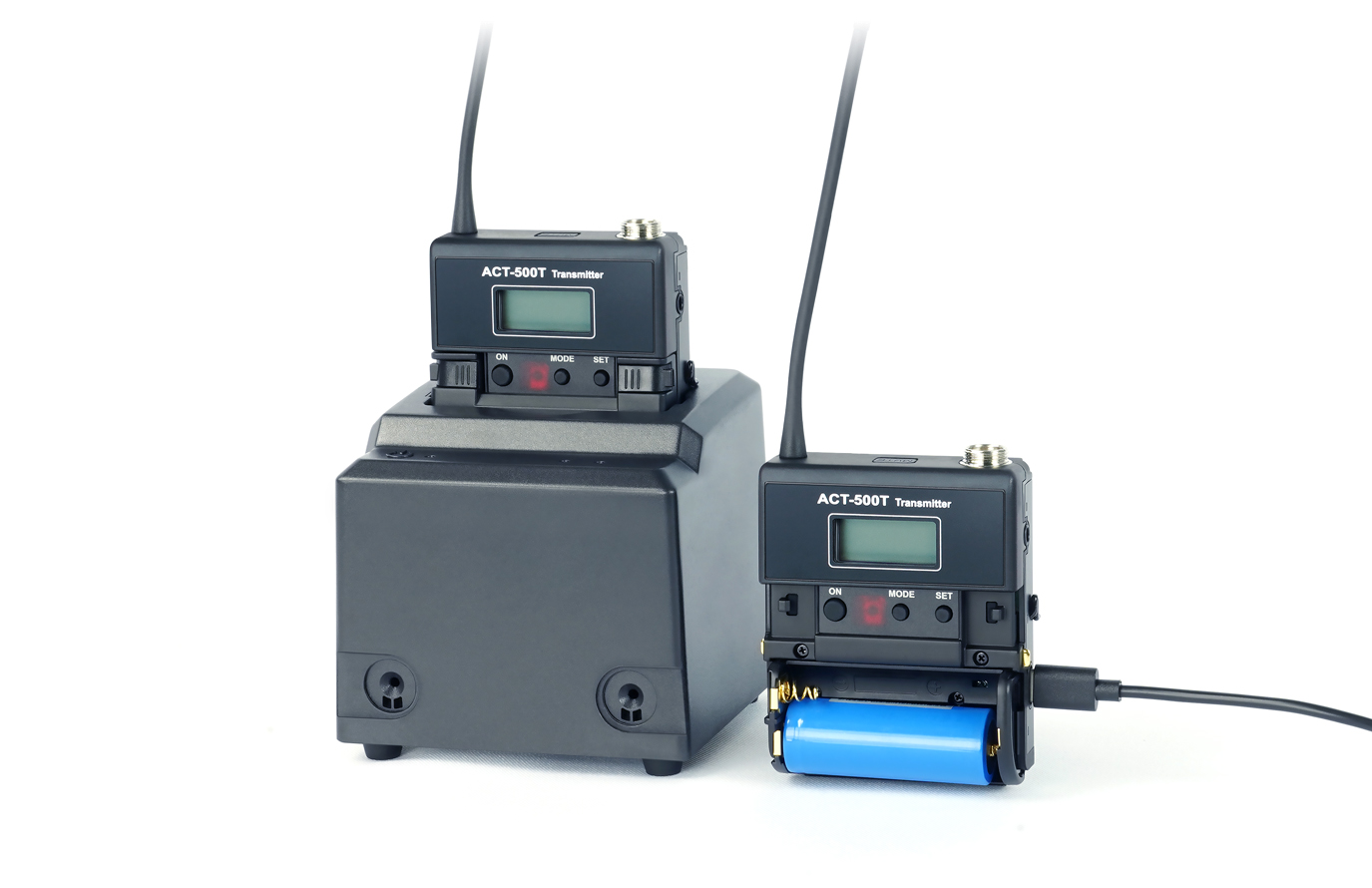

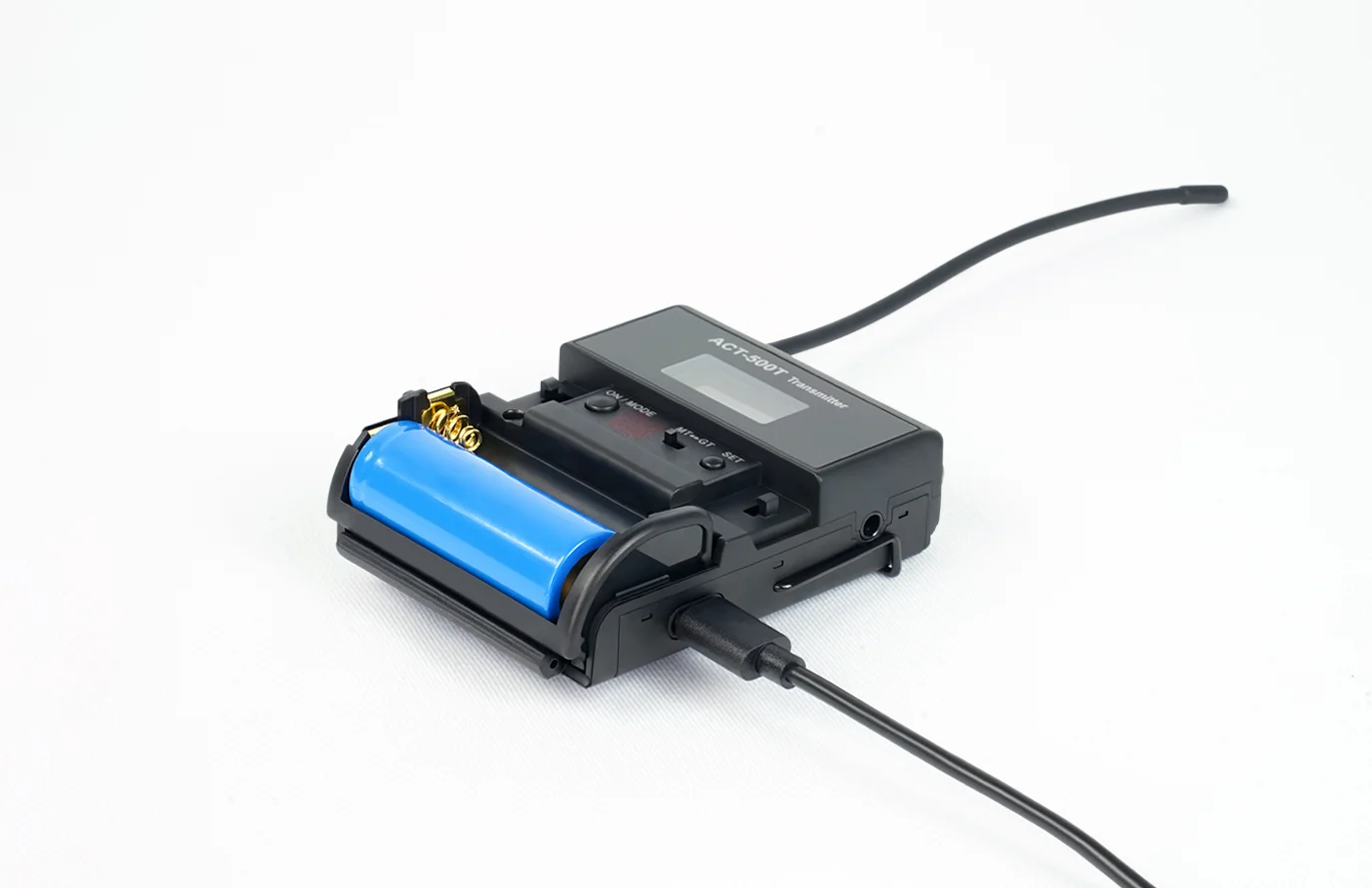

    • Built-in USB Type-C charging port and charging contacts with foolproof protection circuitry support cable and drop-in charging.
    • Detachable metal belt clip allows upright or inverted mounting for secure and convenient wearing.

    SPECIFICATION

    Model

    ACT-500T

    Name

    UHF Analog Bodypack Transmitter

    Frequency Range

    UHF 480–934 MHz (country dependent)

    Bandwidth

    24 MHz

    Display

    Backlit LCD displays channel, battery status and menus

    Control Interface

    ACT sync sensor, setting buttons and mute button

    Mic. Capsule Modules

    MIPRO lavalier and headworn mics

    Input Connector

    MIPRO 4-Pin Mini XLR

    Audio Control

    AF Gain

    Max. Audio Input

    0 dBV

    Gain Setting

    -12 dB to +12 dB / 6 dB per segment

    RF Power Output

    10 mW / 50 mW switchable (country dependent)

    Power Supply

    One 18500 Li-ion battery or two AA alkaline

    Battery Charging

    MP-800 / MP-820 charging dock or USB Type-C

    Dimensions

    63 × 80 × 25 mm (W × H × D)

    Weight

    Approx. 96 g

    RELATED PRODUCTS

  • All (3)

  • Wireless Systems (3)

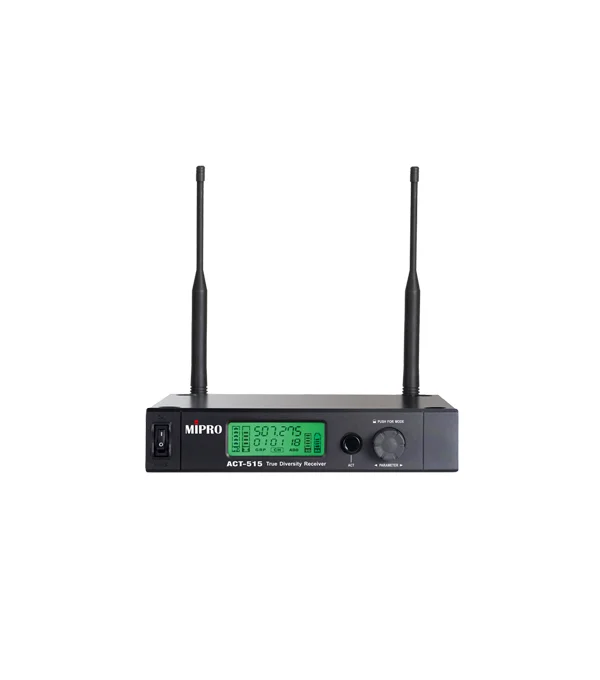

  • ACT-515
