ACT-800T

UHF Digital Wideband Bodypack Transmitter

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Digital

UHF

72 MHz

LCD

ACT Sync

Encryption

4-Pin Mini XLR

AA

Li-ion

USB-C

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

  • FEATURES

    • MIPRO’s premium digital bodypack transmitter is designed for use with the ACT-800 Series receivers, delivering high-performance digital wireless transmission.
    • Compact and lightweight housing with a streamlined, patented design for secure and comfortable belt-worn use.
    • A backlit LCD clearly displays group, channel, battery status, and AF signal strength.
    • Supports advanced settings including mute mode, input sensitivity adjustment, low-cut filter, audio limiter, RF output power, input polarity, and lock.
    • Offers both onboard mute switch and external mute control for flexible operation in various scenarios.
    • Features a MIPRO 4-Pin Mini XLR input compatible with MIPRO’s full range of lavalier and headworn microphones, as well as instrument microphones.
    • Six-stage input gain adjustment allows precise control based on vocal or instrument volume, improving audio clarity and preventing distortion.
    • Incorporates MIPRO’s exclusive ACT™ function for fast and accurate frequency synchronization.

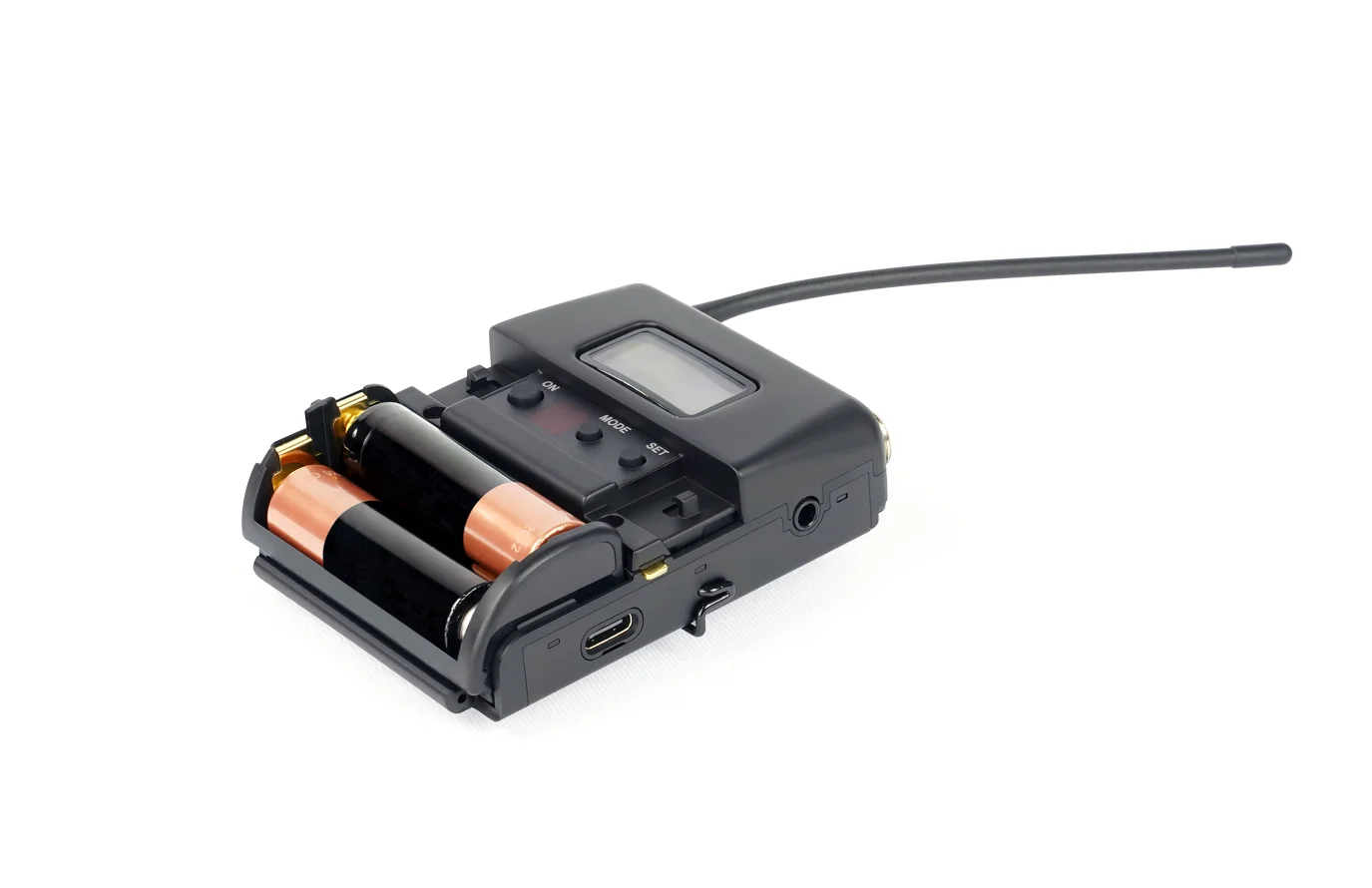

    • Patented dual-purpose battery compartment allows quick switching between AA and rechargeable Li-ion batteries.

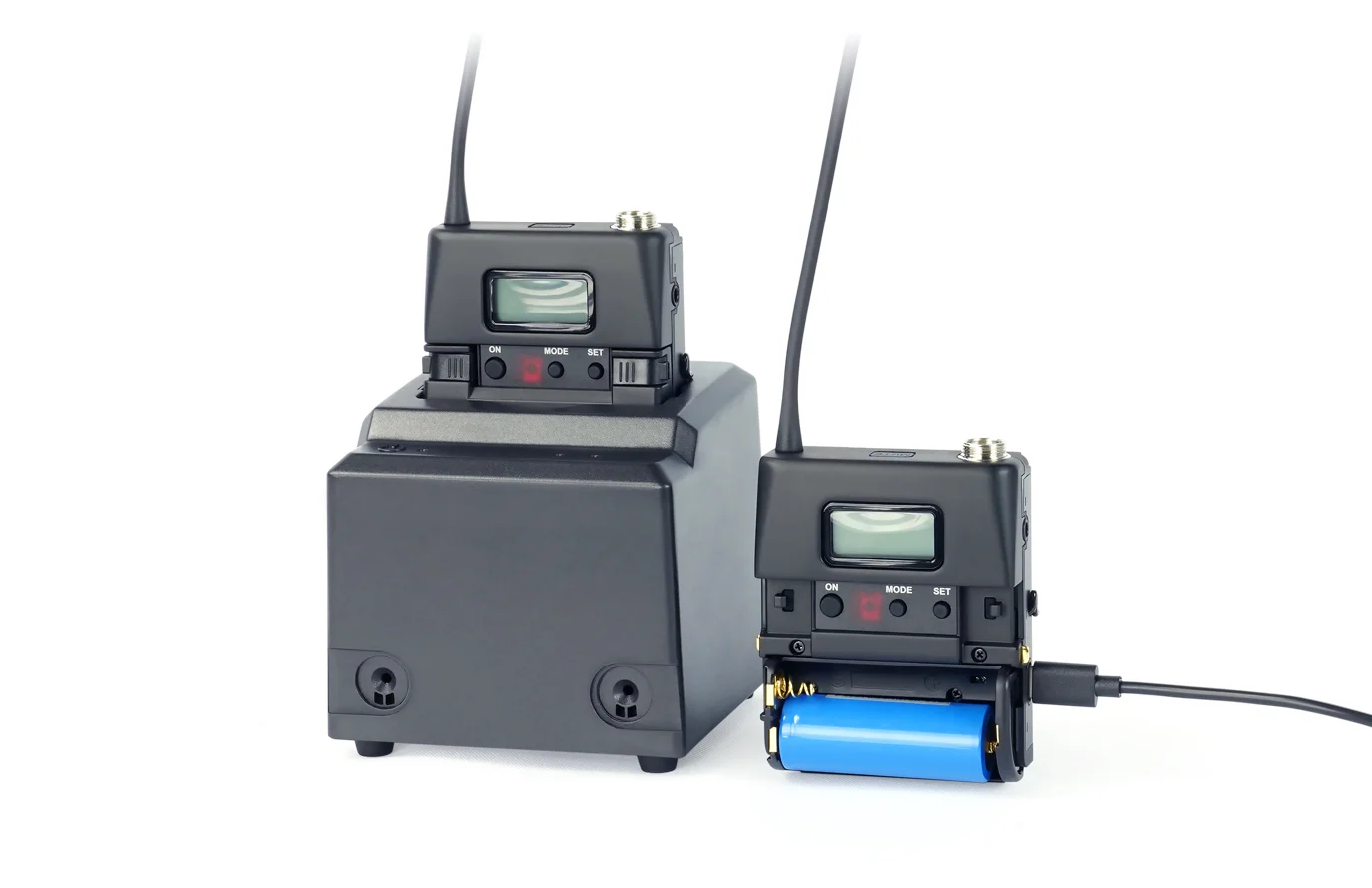

    • Built-in USB Type-C charging port and charging contacts with foolproof protection circuitry support cable and drop-in charging.
    • Detachable metal belt clip allows upright or inverted mounting for secure and flexible wearing.

    SPECIFICATION

    Model

    ACT-800T

    Name

    UHF Digital Wideband Bodypack Transmitter

    Frequency Range

    UHF 480–934 MHz (country dependent)

    Bandwidth

    72 MHz

    Display

    Backlit LCD displays channel, battery status, AF meters and menus

    Control Interface

    ACT sync sensor, setting buttons and mute button

    Encryption

    256-bit Digital Encryption

    Mic. Capsule Modules

    MIPRO lavalier and headworn mics

    Input Connector

    MIPRO 4-Pin Mini XLR

    Audio Control

    AF Gain, Low Cut, AF Limiter and Input Polarity

    Max. Audio Input

    0 dBV

    Gain Setting

    -12 dB to +18 dB / 6 dB per segment

    RF Power Output

    10 mW / 50 mW switchable (country dependent)

    Power Supply

    One 18500 Li-ion battery or two AA alkaline

    Battery Charging

    MP-800 / MP-820 charging dock or USB Type-C

    Dimensions

    63 × 80 × 25 mm (W × H × D)

    Weight

    Approx. 97 g
