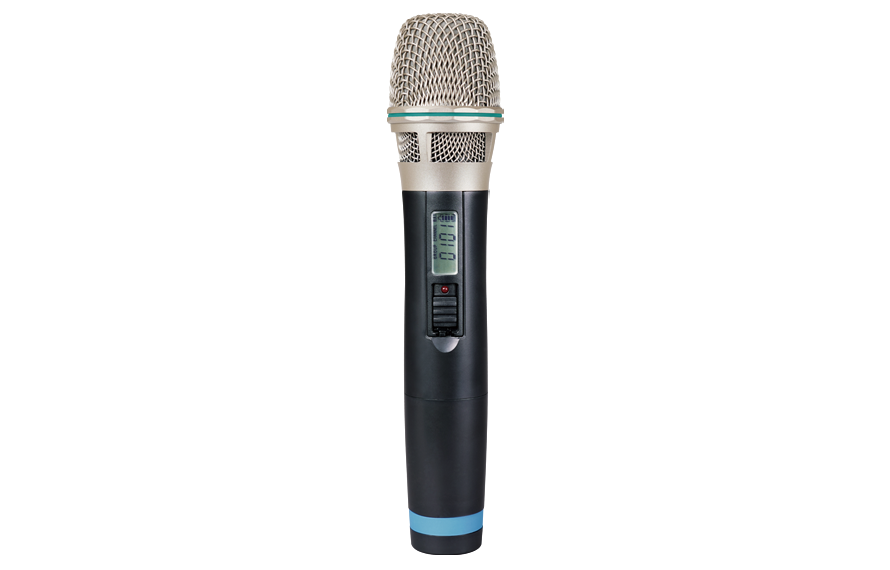

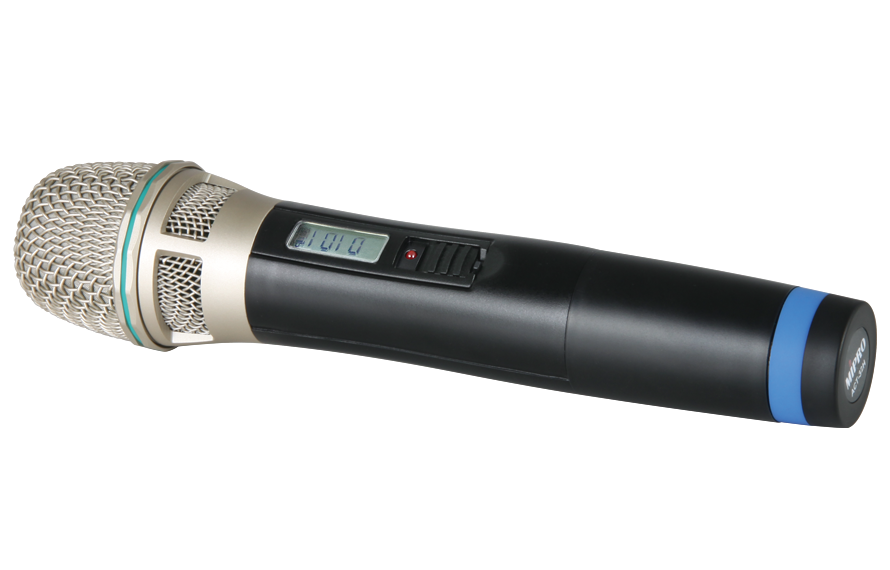

Product Name : UHF Analog Handheld Transmitter
with MU-80 Capsule

*The product images and specifications shown on our website may differ from the actual products due to different versions.

  • Aesthetically designed rugged plastic housing features the most comfortable handheld size and presents MIPRO’s unique style.

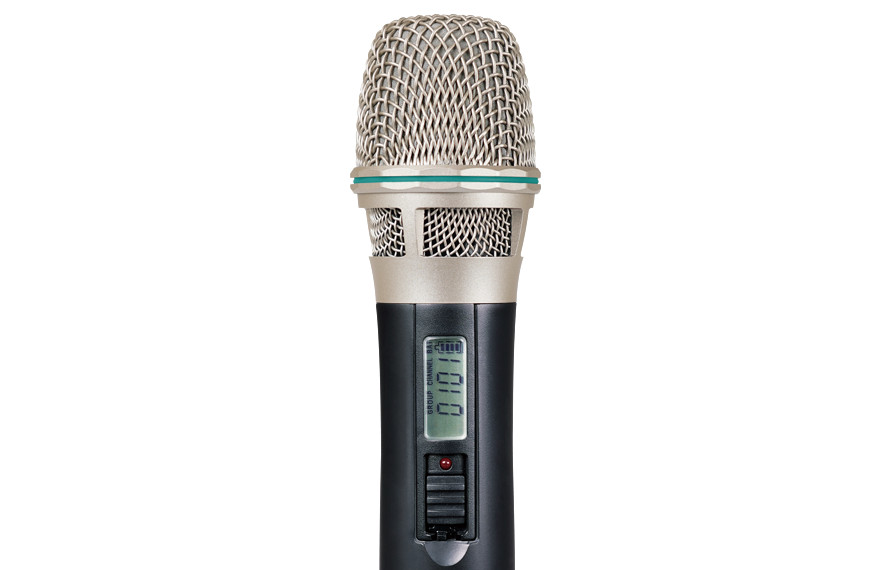

  • The unique metal grille of the microphone capsule module can be divided into the upper grille and the lower grille. The upper grille can be detached for cleaning; the lower grille is connected with the housing by an internal thread. The robust metal grille protects the capsule against impact, rolling and pop noise, and ensures clarity of sound.
  • An LCD on the housing displays the working channel, battery status and operating information.
  • Powered by two AA alkaline batteries.
  • Pairs with MIPRO’s capsule modules featuring high dynamic range for loud singing without distortion. The patented capsule suspension design virtually eliminates vibration and handling noise
  • A color-coded channel identification ring is put on the end of the housing which has a built-in high efficiency antenna.
Product Introduction
NameUHF Analog Handheld Transmitter
Frequency RangeUHF 480 – 934 MHz (country dependent)
Bandwidth24 MHz
Mic. Capsule ModulesInterchangeable condenser or dynamic capsule module
RF Power Output30 mW (country dependent)
Spurious Emission< 4 nW
AF SensitivityPreset at 0 dB (equal to capsule sensitivity)
Battery TypeTwo AA alkaline
Dimensions51 × 234 mm (Ø × L)
WeightApprox. 250 g


ACT-32H Handheld Transmitter 0.39M | 2021/08/11
Spec Sheet
ACT-32H UHF Analog Handheld Transmitter (Ver.2024) 0.16M | 2024/03/15
User Guide
ACT Series Handheld Microphones (ACT-24H / ACT-58H / ACT-52H / ACT-33H / ACT-32H / ACT-32HR / ACT-31H) 2.65M | 2022/05/04
