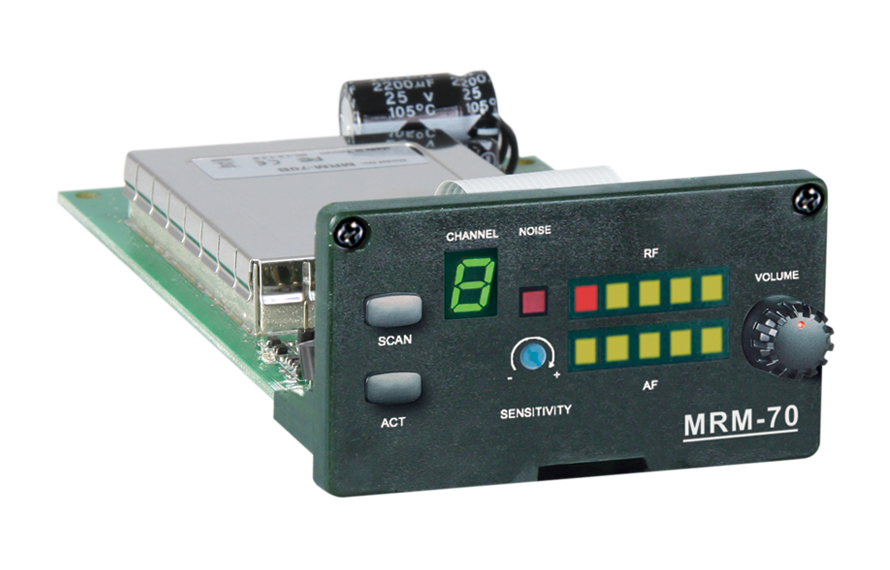

MRM-70 UHF Diversity Single-Channel Receiver Module
*The product images and specifications shown on our website may differ from the actual products due to different versions.
UHF
24
LED
- Preset 16 auto-scannable frequencies.
- “SCAN” and “ACT” buttons, interference warning indicator and “Sensitivity” adjustor.
- An easy-to-read LED channel display, 5-segment RF and AF meters.
- CPU-controlled diversity receiving technology for optimum reception quality.
- Modular design allows for easy installation and replacement.
Product Introduction
| Model | MRM-70 |
|---|---|
| Name | UHF Diversity Single-Channel Receiver Module |
| Frequency Band | UHF 480 – 934 MHz |
| Bandwidth | 24 MHz |
| Preset Channels | 16 |
| Channel Setting | Manually set up the desired channel or scan for an open channel. Press the ACT button to synchronize the transmitter and receiver |
| Display | Channel, RF/AF meters, sensitivity meters and interference warning indicator |
| Receiving Mode | MCU-controlled diversity receiving |
| Sensitivity | S/N > 80 dB at 10 dBμV |
| S/N Ratio | > 100 dBA |
| THD | < 0.5% @ 1 kHz |
| Frequency Response | 50 Hz – 18 kHz |
| AF Output | 610 mV RMS |
| Power Supply | DC 12 – 15 V |
| Note | Refer to the actual product in the event of product description discrepancy |
