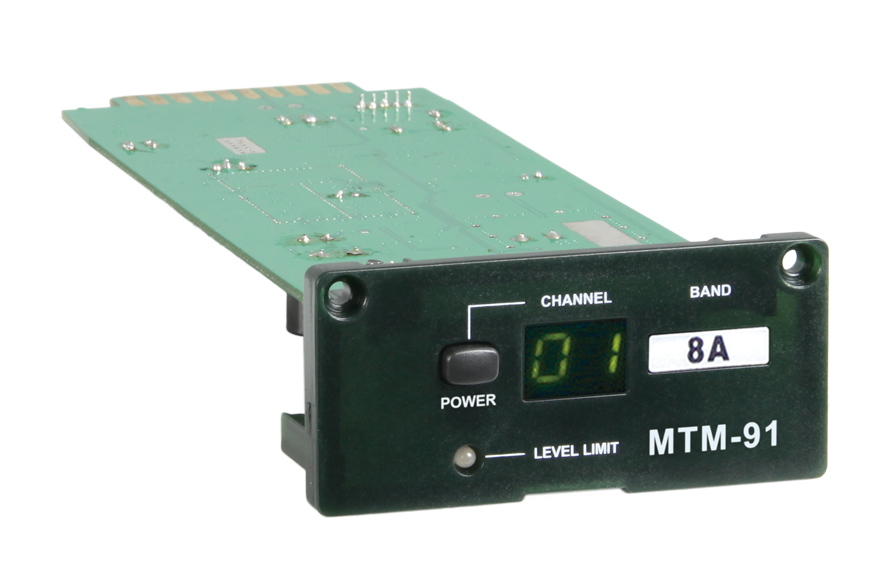

Product Name : UHF Interlinking Transmitter Module

*The product images and specifications shown on our website may differ from the actual products due to different versions.


  • Analog

  • UHF Band

  • 24 MHz

  • LED Display
  • Compatible with UHF band receiver modules
  • 16 selectable channels, with LED display.
  • Modular design allows for easy installation and maintenance.
Product Introduction
ModelMTM-91
Name UHF Wireless Interlinking Transmitter Module
Matching Receiver Modules UHF band receiver modules
Frequency Range 480~934 MHz
Bandwidth 24 MHz
Oscillation Mode PLL synthesized
RF Output Power 10 mW or 100 mW (country dependent)
Spurious Emissions < -45 dBm
Dimensions 75 × 35 × 165 mm (W×H×D)
Weight Approx. 77 g
Note Refer to the actual product in the event of product description discrepancy.

Download

Spec Sheet
MTM-91 UHF Interlinking Transmitter Module (Ver.2021) 0.16M | 2021/09/02
User Guide
MTM Series Interlinking Transmitter Module (MTM-24 / MTM-58 / MTM-91) 2.12M | 2021/09/10
