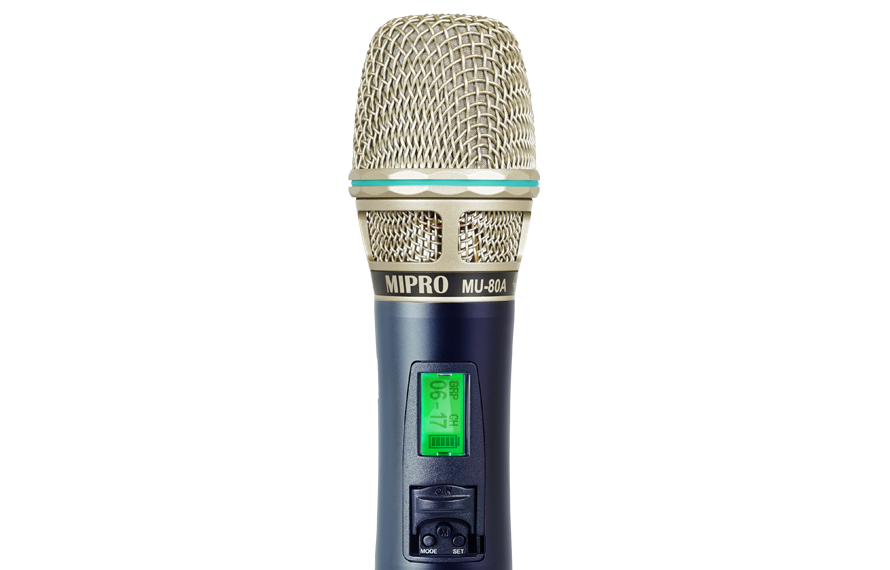

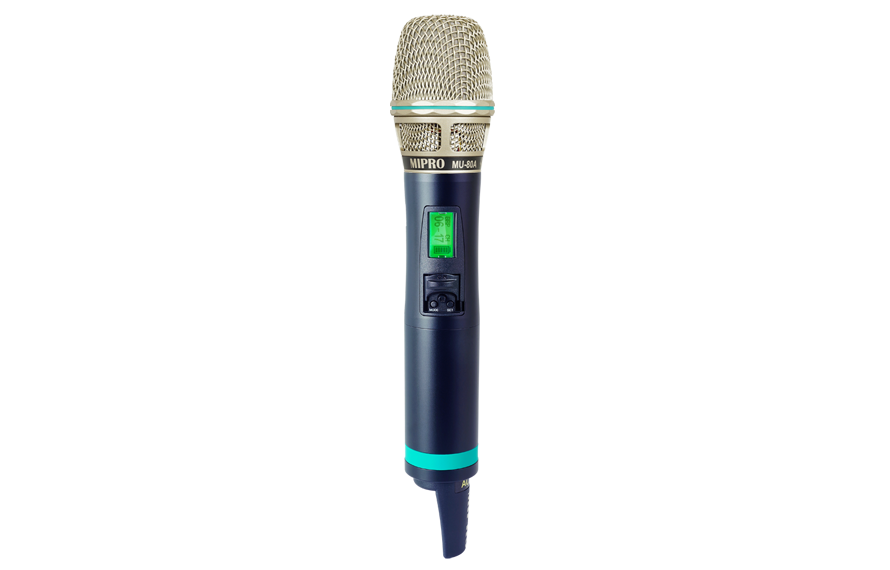

Product Name : UHF Analog Handheld Transmitter
with MU-80A Capsule

*The product images and specifications shown on our website may differ from the actual products due to different versions.

UHF
24
LCD
  • Aesthetically designed in special fog black color metal housing features the most comfortable handheld size and presents ultra-low handling noise and a luxurious professional appearance.
  • The unique metal grille of the capsule module can be divided into the upper and lower grille. The upper grille can be detached for cleaning; the lower grille is connected with the housing by an external thread. The robust metal grille protects the capsule against impact, rolling and pop noise, and ensures clarity of sound.
  • The patented power switch module integrates mute, mode and set buttons, and LCD for convenience to operate.
  • The patented battery compartment can be inserted with two AA-type batteries or one rechargeable Li-ion battery, charging via USB Type-C with the foolproof and safe charging circuit. The second-generation ACT-500H features charging contacts and can also be placed on an optional single-slot or dual-slot charging station for charging.
  • In addition to the power switch and the mute button, functions such as input sensitivity, low frequency reduction, volume limit, power output and mute mode are also programmable.
  • 5 switchable gain levels with input sensitivity preset to equal the sensitivity of the microphone capsule at 0 dB.
  • The world’s first ACT™ function provides precise and rapid frequency sync to the receiver.
  • A color-coded channel identification ring is put on the end of the housing. A high efficiency wideband transmitting antenna and USB Type-C charging socket built in a patented antenna cover on the bottom of the housing.
  • Pairs with all MIPRO’s new interchangeable microphone modules featuring high dynamic range for loud singing without distortion. Also accepts some other brands’ microphone modules with similar specifications.
Product Introduction
ModelACT-500H
Name UHF Analog Handheld Transmitter
Frequency Range UHF 480 – 934 MHz (country dependent)
Bandwidth 24 MHz
Display Backlit LCD
Mic. Capsule Modules MU-80A condenser or optional MU-59A dynamic
AF Sensitivity Preset at 0 dB (equal to capsule sensitivity)
5 switchable levels: -6 dB to 6 dB
RF Power Output 10 mW / 50 mW switchable (country dependent)
Spurious Emission < 4 nW
Battery Type One 18500 Li-ion battery or two AA alkaline
Battery Charging MP-800 / MP-820 charging station or USB Type-C
Dimensions 51 × 272 mm (Ø × L)
Weight Approx. 320 g

Download

Spec Sheet
ACT-500H UHF Analog Handheld Transmitter (Ver.2024) 0.17M | 2024/03/15
User Guide
ACT Series Handheld Microphones (ACT-800H / ACT-700H / ACT-500H / ACT-240H / ACT-580H) 0.98M | 2024/04/03
