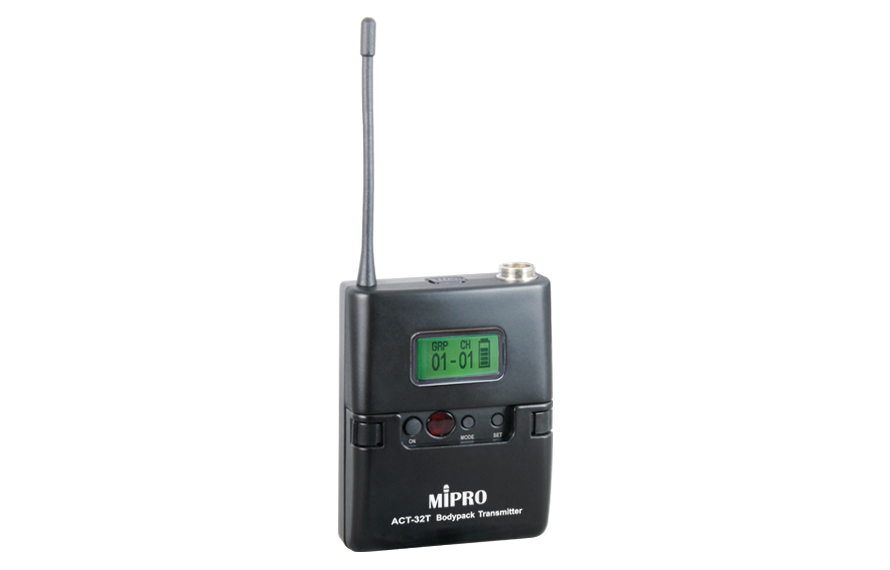

Product Name : UHF Bodypack Transmitter

*The product images and specifications shown on our website may differ from the actual products due to different versions.


  • Analog

  • UHF Band

  • 24 MHz

  • LCD Display

  • ACT™ Channel Synchronization

  • AA
  • Compact and lightweight rugged plastic housing for easy to wear.
  • On top of the housing is equipped with an antenna, mute button and mini XLR connector. The Mini XLR audio input connector accepts either a screw-lock or a TA4F quick-lock plug. A remote-control mute jack is for easy activation of the mute function.
  • An LCD on the panel displays the working channel, battery status and operating information.
  • Powered by two AA alkaline batteries.
  • Innovatively designed battery cover allows easy access to operate buttons and prevent accidental operation.
  • High/low impedance for microphone or guitar / line inputs. Five selectable gain settings with Auto Limiter to prevent distortion.
Product Introduction
ModelACT-32T
Name UHF Bodypack Transmitter
Mic Capsule Modules Paired lavalier mic MU-55L or optional other MIPRO’s lavalier and headworn mic capsule modules.
Max. Audio Input 0 dBV
Display Green backlit LCD
Frequency Range UHF 480 ~ 934 MHz (country dependent)
Bandwidth 24 MHz
Input Impedance Setting High impedance
RF Power Output 10 mW / 50 mW switchable (country dependent)
Spurious Emission < 4 nW
Battery Two AA alkaline
Dimensions 63 × 82 × 22 mm (W×H×D)
Weight Approx. 86 g
Note Refer to the actual product in the event of product discrepancy.

Download

User Guide
ACT Series Bodypack Transmitters (ACT-70T / ACT-52T / ACT-32T / ACT-24T / ACT-58T) 3.83M | 2021/06/09
DOC
ACT-32T Bodypack Transmitter 0.38M | 2021/08/11
Spec Sheet
ACT-32T UHF Bodypack Transmitter (Ver.2021) 0.18M | 2021/08/18
