Product Name : 5 GHz Digital Handheld Transmitter with MU-80A Capsule

*The product images and specifications shown on our website may differ from the actual products due to different versions.

ISM
5
LCD

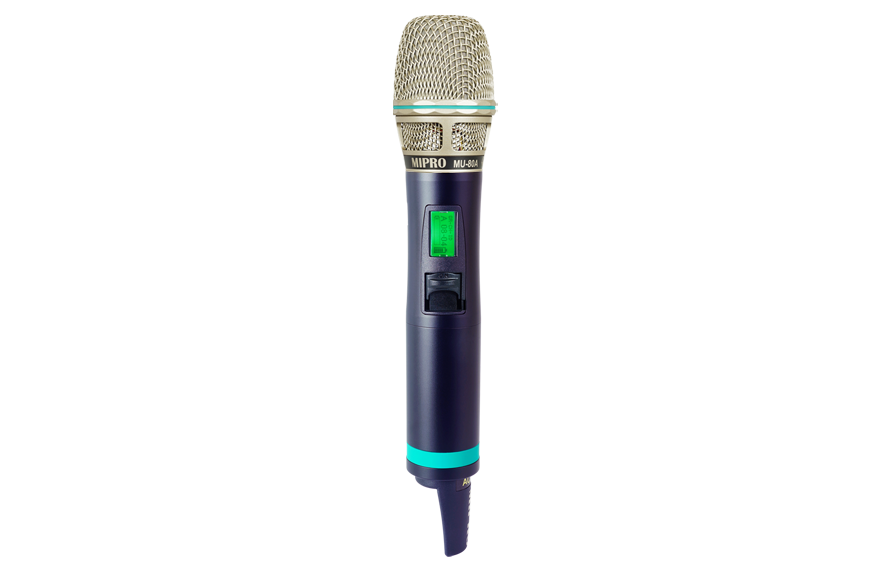

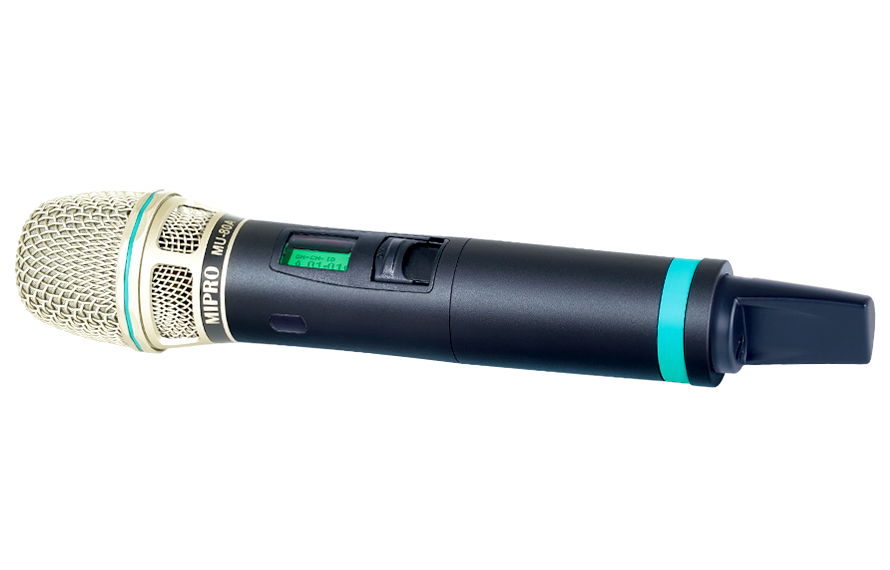

  • Aesthetically designed in special fog black color metal housing features the most comfortable handheld size and presents ultra-low handling noise and a luxurious professional appearance.

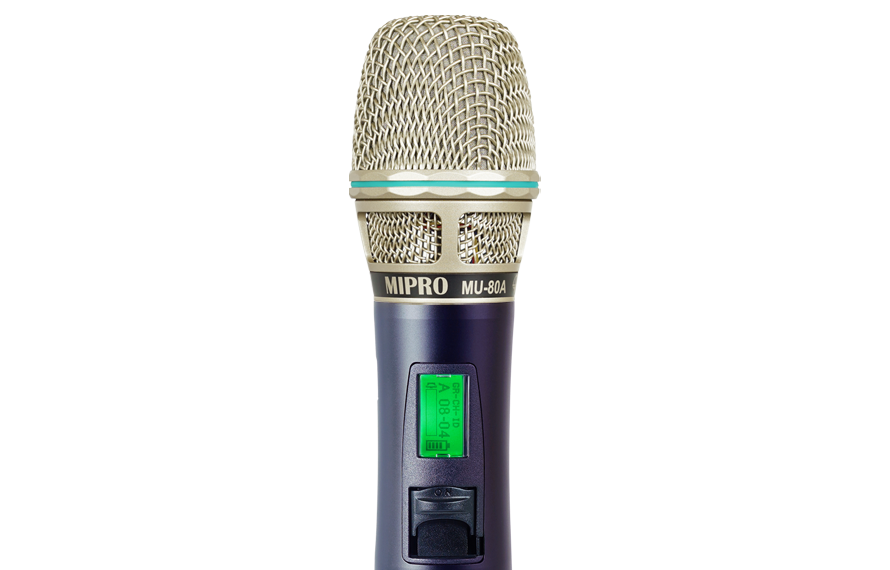

  • The unique metal grille of the microphone capsule module can be divided into the upper grille and the lower grille. The upper grille can be detached for cleaning; the lower grille is connected with the housing by an external thread. The robust metal grille protects the capsule against impact, rolling and pop noise, and ensures clarity of sound.
  • The patented power switch module integrates an LCD for convenience to operate.
  • The patented battery compartment can be inserted with two AA-type batteries or one Li-ion rechargeable battery, charging via USB Type-C with the foolproof and safe charging circuit.
  • A color-coded channel identification ring is put on the end of the housing. A high efficiency wideband transmitting antenna and USB Type-C charging socket built in a patented antenna cover on the bottom of the housing.
  • Pairs with all MIPRO’s new interchangeable microphone modules featuring high dynamic range for loud singing without distortion. Also accepts some other brands’ microphone modules with similar specifications.
Product Introduction
ModelACT-580H
Name 5 GHz Digital Handheld Transmitter
Frequency Band ISM 5.8 GHz
Display Backlit LCD
RF Power Output 20 mW (country dependent)
Mic. Capsule Module MU-80A condenser or MU-59A dynamic modules
AF Sensitivity Preset at 0 dB (equal to capsule sensitivity)
Battery Type One 18500 Li-ion battery or two AA alkaline
Battery Charging USB Type-C
Dimensions 51 × 272 mm (Ø × L)
Weight Approx. 320 g

Download

Spec Sheet
ACT-580H 5 GHz Digital Handheld Transmitter (Ver.2024) 0.17M | 2024/03/18
User Guide
ACT Series Handheld Microphones (ACT-800H / ACT-700H / ACT-500H / ACT-240H / ACT-580H) 0.98M | 2024/04/03
