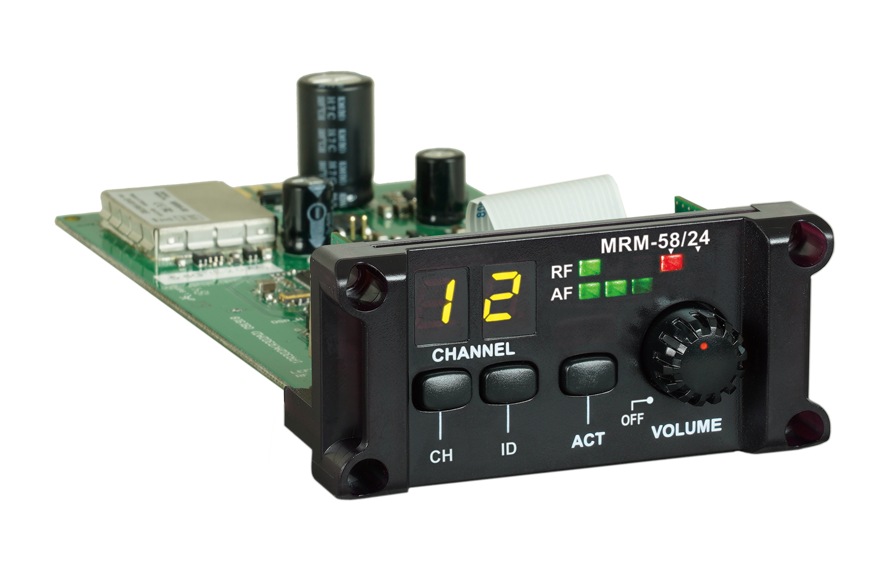

Product Name : 5.8 GHz Digital Receiver Module

*The product images and specifications shown on our website may differ from the actual products due to different versions.


  • New Product

  • Digital

  • ISM Band

  • ISM 5 GHz

  • 125 MHz

  • LED Display

  • ACT™ Channel Synchronization
  • 12 preset compatible channels with 8 selectable ID codes to prevent interference at the same location. One specific ID is exclusively for 1-to-1 pairing.
  • Digital modulation and true diversity receiving eliminate signal dropouts.
  • An easy-to-read LED channel display, RF indicator and AF meters.
  • The modular design allows for fast and easy installation or replacement.
  • Affordable for personal, family users and musical instrument players.
Product Introduction
ModelMRM-58
Name ISM 5.8 GHz Single-Channel Receiver Module
Frequency Range 5.725~5.850 GHz
Bandwidth 125 MHz
Preset Channels 12 preset compatible channels with 8 selectable ID codes and one specific ID to prevent the audio crosstalk on the same channel.
Channel Setup Manually set up the desired channel or scan for an open channel. Press the ACT button to synchronize the transmitter and receiver.
ID Code Setup d1, d2, … d8 for general selection. dP for 1-to-1 Pairing mode.
Display LED channel, RF indicator and AF meters.
Receiving Mode Dual-tuner digital true diversity
Sensitivity +12 dBμV
Latency < 2.6 ms
S/N Ratio > 113 dBA, analog output
T.H.D. < 0.1% at 1 kHz
Frequency Response 20 Hz ~ 20 kHz
AF Output 2 V rms
Power Supply 12 ~ 15 V DC
Dimensions 75 × 35 × 147 mm (W×H×D)
Weight Approx. 80 g
Note Refer to the actual product in the event of product description discrepancy.

Download

Spec Sheet
MRM-58 5.8 GHz Digital Receiver Module (Ver.2021) 0.16M | 2021/09/02
User Guide
MRM-58 5.8 GHz Digital Receiver Module 2.32M | 2022/05/04
