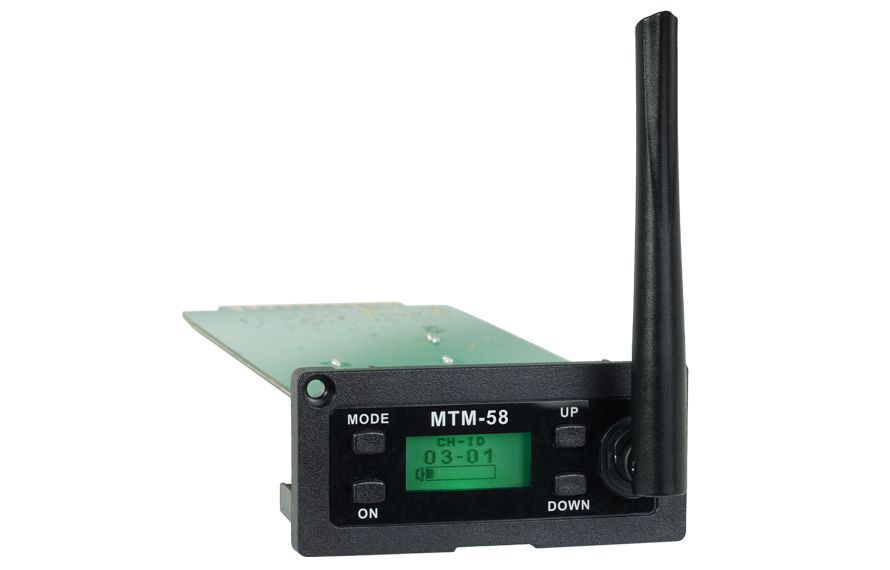

MTM-58 5.8 GHz Interlinking Transmitter Module
*The product images and specifications shown on our website may differ from the actual products due to different versions.
New Product
Digital
ISM Band
ISM 5 GHz
LCD Display
- Compatible with ISM 5.8 GHz receiver modules.
- 12 selectable channels, with LCD display.
- Modular design allows for easy installation and maintenance.
Product Introduction
| Model | MTM-58 |
|---|---|
| Name | 5.8 GHz Wireless Interlinking Transmitter Module |
| Matching Receiver Modules | ISM 5.8 GHz receiver modules |
| Frequency Range | 5725~5850 MHz |
| Bandwidth | 125 MHz |
| Oscillation Mode | PLL synthesized |
| RF Output Power | 20 mW |
| Spurious Emissions | < -40 dBm |
| Dimensions | 75 × 35 × 165 mm (W×H×D) |
| Weight | Approx. 78 g |
| Note | Refer to the actual product in the event of product description discrepancy. |
Download
| Spec Sheet | |||||
|---|---|---|---|---|---|
 |
MTM-58 | 5.8 GHz Interlinking Transmitter Module (Ver.2021) | 0.16M | 2021/09/02 |  |
|
| User Guide | |||||
|---|---|---|---|---|---|
 |
MTM Series | Interlinking Transmitter Module (MTM-24 / MTM-58 / MTM-91) | 2.12M | 2021/09/10 | |
|
