• BC-24T II
  • BC-58T II
Product Name : ISM BC-T II Series

*The product images and specifications shown on our website may differ from the actual products due to different versions.

ISM
2.4
5
LED

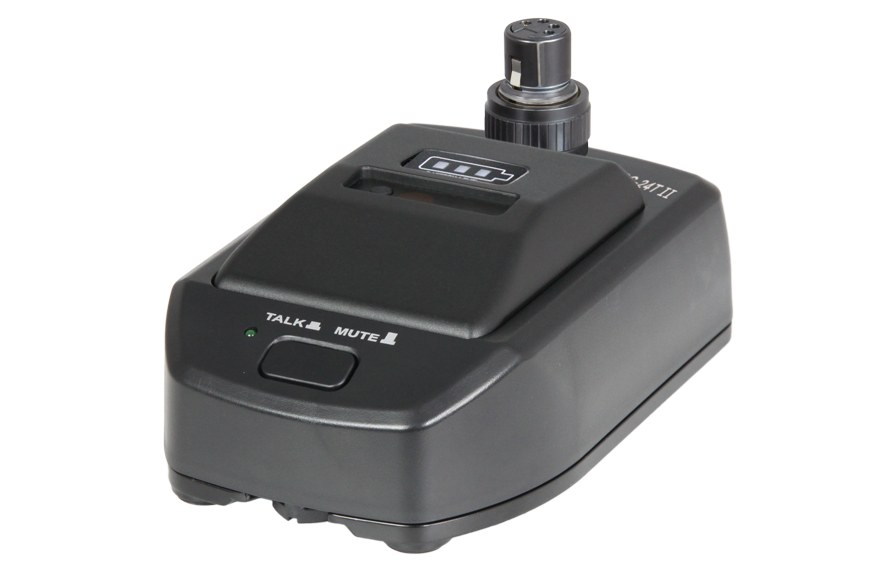

  • BC-T II Series encloses the transmitter PCB for wireless transmission and can also connect directly with MM-series 4-Pin gooseneck microphone for wired transmission.
  • For wired transmission, the output jack requires phantom power from the mixer.
  • For wireless transmission, the operational controls are the same as any ACT bodypack transmitter. A built-in ICR 18500 Li-ion battery can be charged by an external charger or simply replace with another spare battery.
  • Feature a TALK / MUTE button. When pushing the button to talk, the green indicator on the base and LED ring indicator on MM-206L / 205L / 204L will light up indicating the system in the state of speaking. Push the button again to mute the system and all indicators are off.
Product Introduction
ModelBC-24T IIBC-58T II
Name 2.4 GHz Wireless Conference Microphone Base 5 GHz Wireless Conference Microphone Base
Built-in Transmitter 2.4 GHz Digital 5.8 GHz Digital
Receiver ACT-2400 Series ACT-5800 Series
Gooseneck Microphone To use with MM-206L, MM-205L, MM-204L To use with MM-206L, MM-205L, MM-204L
Input Jack 4-Pin XLR female 4-Pin XLR female
Output Jack Balanced XLR male Balanced XLR male
TALK / MUTE Button Mechanical PUSH-HOLD switch, with a LED status indicator Mechanical PUSH-HOLD switch, with a LED status indicator
Power Supply One ICR 18500 Li-ion battery and the charging circuit One ICR 18500 Li-ion battery and the charging circuit
Phantom Power DC 24 – 48 V phantom power is required (external cable) DC 24 – 48 V phantom power is required (external cable)
Dimensions 100 × 78 × 150 mm (W × H × D) 100 × 78 × 150 mm (W × H × D)
Weight Approx. 700 g Approx. 670 g
Note Refer to the actual product in the event of product discrepancy Refer to the actual product in the event of product discrepancy

Download

Spec Sheet
BC-24T II 2.4 GHz Wireless Conference Microphone Base (Ver.2023) 0.20M | 2023/03/21
BC-58T II 5 GHz Wireless Conference Microphone Base (Ver.2023) 0.20M | 2023/03/21
User Guide
BC-T II Series Wireless Conference Microphone Base (BC-24T II / BC-58T II / BC-100 II / BC-100T II) 7.77M | 2023/04/25
