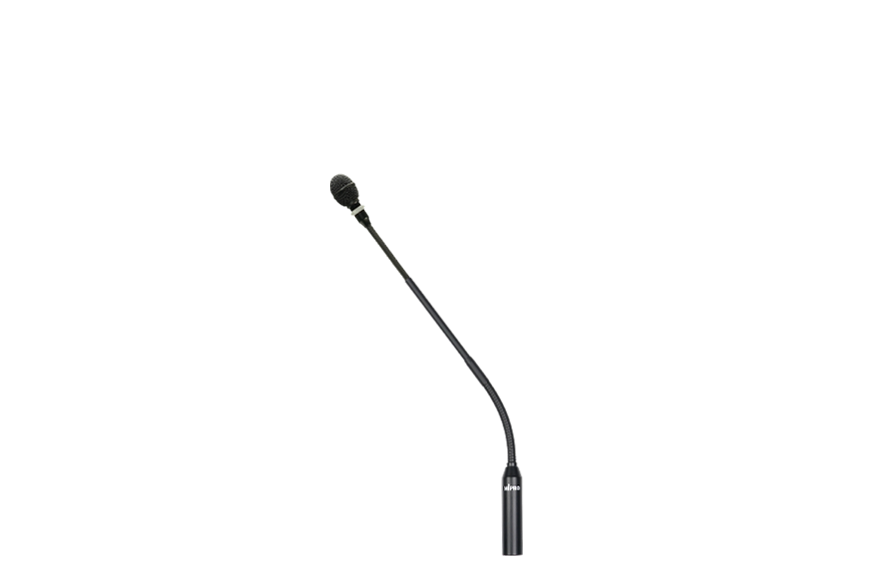

MM-204 385 mm Gooseneck Microphone
Directional
Condenser
4 Pin XLR Male
- MM-2 Series gooseneck microphones can be bent in wide angles and are ideal for conference room and church applications.
- Multi-layered microphone grille effectively eliminates pop noise.
- MM-206/205/204 which has 4 pin XLR plug fits wired BC-100 and wireless BC-T Series conference microphone bases.
Product Introduction
| Model | MM-204 | MM-205 | MM-206 |
|---|---|---|---|
| Name | 385 mm Gooseneck Microphone | 485 mm Gooseneck Microphone | 585 mm Gooseneck Microphone |
| Color | Black | Black | Black |
| Capsule | Ø 10 mm unidirectional condenser microphone | Ø 10 mm unidirectional condenser microphone | Ø 10 mm unidirectional condenser microphone |
| Frequency Response | 50 Hz ~ 18 kHz | 50 Hz ~ 18 kHz | 50 Hz ~ 18 kHz |
| Sensitivity | -46 dBV ± 3 dBV / Pa (0 dB = 1 V / Pa) | -46 dBV ± 3 dBV / Pa (0 dB = 1 V / Pa) | -46 dBV ± 3 dBV / Pa (0 dB = 1 V / Pa) |
| Max. SPL | 142 dB | 142 dB | 142 dB |
| Output Jack | 4 pin XLR male | 4 pin XLR male | 4 pin XLR male |
| Phantom Power | 5 ~ 9 V DC | 5 ~ 9 V DC | 5 ~ 9 V DC |
| Length | 385 mm | 485 mm | 585 mm |
| Net Weight | Approx. 170 g | Approx. 180 g | Approx. 180 g |
| Note | Refer to actual product in the event of product discrepancy. | Refer to actual product in the event of product discrepancy. | Refer to actual product in the event of product discrepancy. |
Related Products
Download
| Spec Sheet | |||||
|---|---|---|---|---|---|
 |
MM-204 | 4 pin Gooseneck Microphone (Ver.2021) | 0.16M | 2021/11/02 |  |
|
|
MM-205 | 4 pin Gooseneck Microphone (Ver.2021) | 0.16M | 2021/11/02 | |
|
|
MM-206 | 4 pin Gooseneck Microphone (Ver.2021) | 0.16M | 2021/11/02 | |
|
| User Guide | |||||
|---|---|---|---|---|---|
 |
MM-2 Series | Gooseneck Microphone (MM-204 / MM-205 / MM-206 / MM-204J / MM-205J / MM-206J / MM-202P / MM-202S) | 1.58M | 2022/02/10 | |
|
