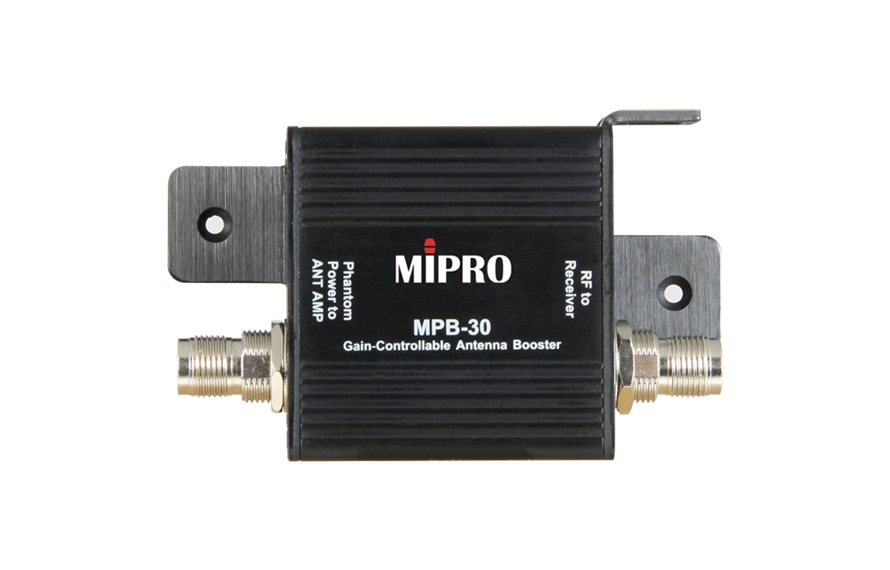

Product Name : UHF Gain-Controllable Antenna Booster

*The product images and specifications shown on our website may differ from the actual products due to different versions.


  • UHF Band
  • It is optimized in the 470 ~ 960 MHz frequency range to amplify the antenna signal. It is designed for pairing with the AD-708 antenna divider to detect the cable loss and automatically adjust the gain of the booster output between 0 ~ 14 dB to compensate precisely for the cable loss to obtain the optimal signal quality.
  • The antenna booster can be powered by the bias of the receiver’s antenna connector or by an external power supply, allowing longer antenna cables can be connected with more boosters.
  • With an aluminum casing, it features superb heat dissipation and waterproof.
Product Introduction
ModelMPB-30
Name UHF Gain-Controllable Antenna Booster
Frequency Range UHF 470 ~ 960 MHz
Gain Variable 0 ~ 14 dB ± 1 dB
Input / Output Connectors 1-to-1 TNC. 50 Ω Impedance.
Input Power 12 ~ 24 V DC / 350 mA
Regulated Power Output 8 V DC / 250 mA
Dimensions 55 × 90 × 25 mm (W×H×D)
Weight Approx. 110 g
Note Refer to the actual product in the event of product description discrepancy.

Download

Spec Sheet
MPB-30 UHF Gain-Controllable Antenna Booster (Ver.2021) 0.20M | 2021/08/23
User Guide
MPB-30 UHF Gain-Controllable Antenna Booster 0.90M | 2021/09/09
