Product Name : UHF 4-channel Antenna Divider

*The product images and specifications shown on our website may differ from the actual products due to different versions.


  • UHF Band

  • Quad-Channel

  • LED Display

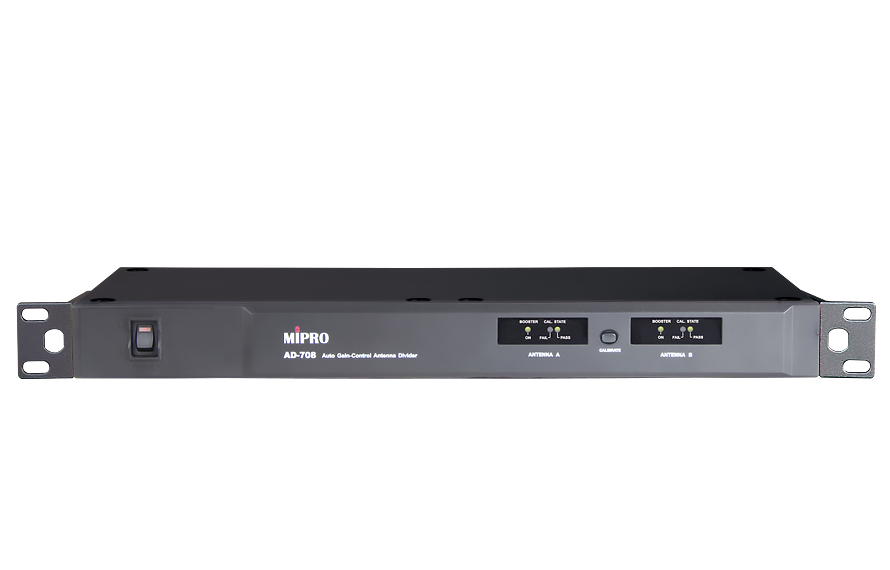

  • Optimized in the 470 ~ 850 MHz frequency range and complies with FCC and EU telecom regulations. Output gain is about 1 dB. The antenna connector supplies bias for boosters. Designed with high dynamic, low noise components and an ultra-wideband circuit, it features ultra-low intermodulation and insertion loss and can eliminate the multi-channel spurious interference. Bright LED indicators on the panel are designed for correctly identifying if the antenna cable is connected and the status of booster compensation.
  • Pairing with an MPB-30 gain-controllable antenna booster, the AD-708 can detect the cable loss, automatically adjust the booster to precisely compensate for the loss, and eliminate the intermodulation distortion.
Product Introduction
ModelAD-708
Name Wideband 4-channel with Auto Gain Controller Antenna Divider
Frequency Range UHF 470 ~ 850 MHz
Signal Loss Detection Detects the cable loss for automatic gain adjustment of antenna booster.
Input / Output Gain 1 dB ± 1 dB

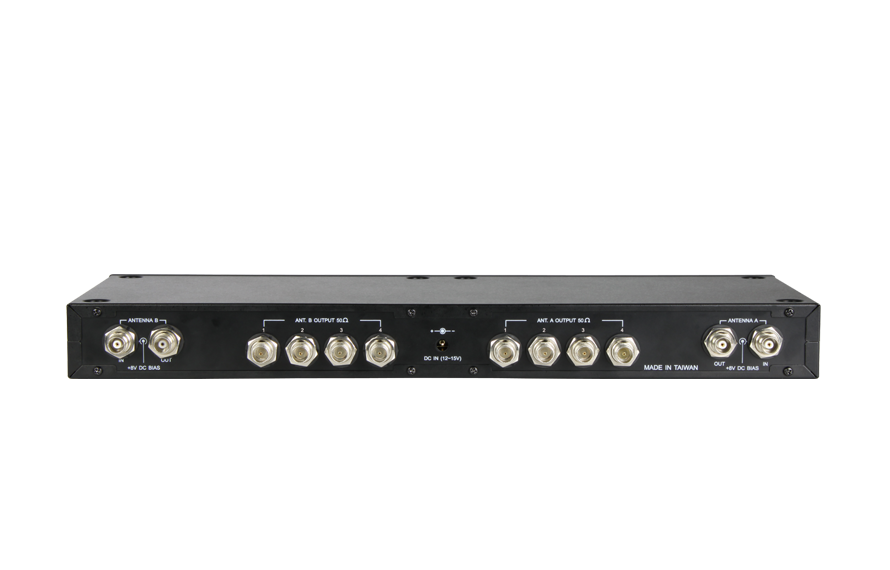

Input / Output Connectors 2 sets of 1-to-4 active divider outputs; 2 sets of 1-to-1 active outputs. TNC female. 50 Ω Impedance.
Antenna Input Bias 8.3 V DC, 230 mA
Power Supply 12 ~ 15 V DC
Dimensions 420 × 44 × 164 mm (W×H×D)
Weight Approx. 1.5 kg
Note Refer to the actual product in the event of product description discrepancy.

Download

Spec Sheet
AD-708 UHF Wideband 4-channel Auto-Gain Control Antenna Divider (Ver.2021) 0.24M | 2021/08/23
User Guide
AD-708 UHF Wideband 4-channel Auto-Gain Control Antenna Divider 2.47M | 2021/09/09
