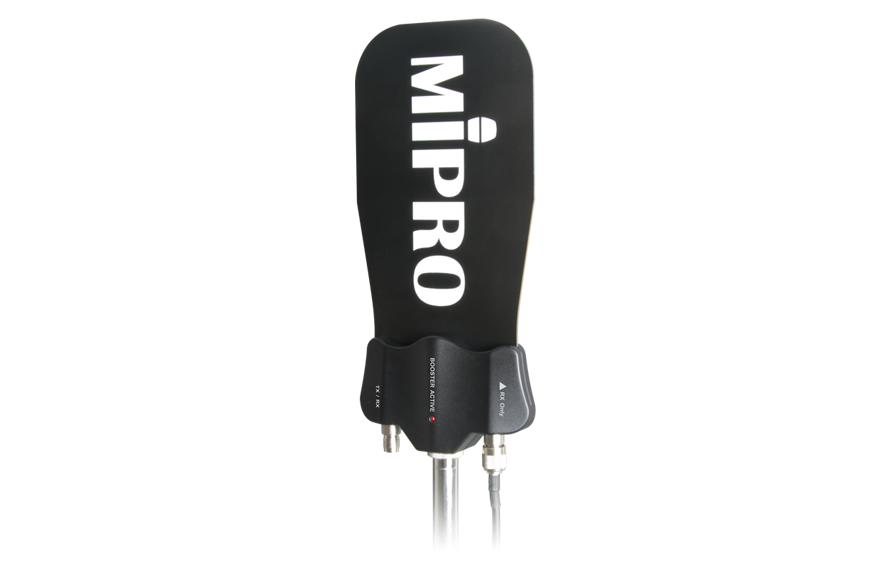

AT-70W Wideband Multi-function Omnidirectional Antenna
*The product images and specifications shown on our website may differ from the actual products due to different versions.
UHF
- AT-70W, a wideband multi-function omnidirectional antenna has a "TX/RX" connector and “RX Only” connector. Providing omnidirectional high-efficiency transmission and reception range.
- AT-90W, a wideband multi-function directional antenna has a “TX/RX” connector and “RX Only” connector. Providing directional high-efficiency transmission and reception range.
- AT-100, a wideband multi-function circularly polarized antenna, its front area is the main focus of antenna direction for either vertical or horizontal polarization, having “TX/RX” connector and “RX Only” connector. Providing high-efficiency transmission and reception range and reducing the polarization loss of the antenna to eliminate the signal drop-out in complex environment applications.
Product Introduction
| Model | AT-70W | AT-90W | AT-100 |
|---|---|---|---|
| Name | Wideband Multi-function Omnidirectional Antenna | Wideband Multi-function Directional Antenna | Wideband Multi-function Directional Circularly Polarized Antenna |
| Frequency Band | UHF 470 – 1000 MHz | UHF 470 – 1000 MHz | UHF 470 – 1000 MHz |
| Antenna Gain | 2 – 4 dBi | 4 – 6 dBi | 6 – 8 dBi |
| Built-in Booster | Built-in 0 – 12 dB gain controllable booster | Built-in 0 – 12 dB gain controllable booster | Built-in 0 – 12 dB gain controllable booster |
| Connectors | TNC | TNC | TNC |
| Power Supply | DC 8 – 15 V bias supplied from the receiver antenna connector | DC 8 – 15 V bias supplied from the receiver antenna connector | DC 8 – 15 V bias supplied from the receiver antenna connector |
| Impedance | 50 Ω | 50 Ω | 50 Ω |
| Dimensions | 120 × 257 × 32 mm (W × H × D) | 319 × 270 × 25 mm (W × H × D) | 350 × 225 mm (Ø × H) |
| Weight | Approx. 220 g | Approx. 480 g | Approx. 1.5 kg |
| Note | Refer to the actual product in the event of product description discrepancy | Refer to the actual product in the event of product description discrepancy | Refer to the actual product in the event of product description discrepancy |
