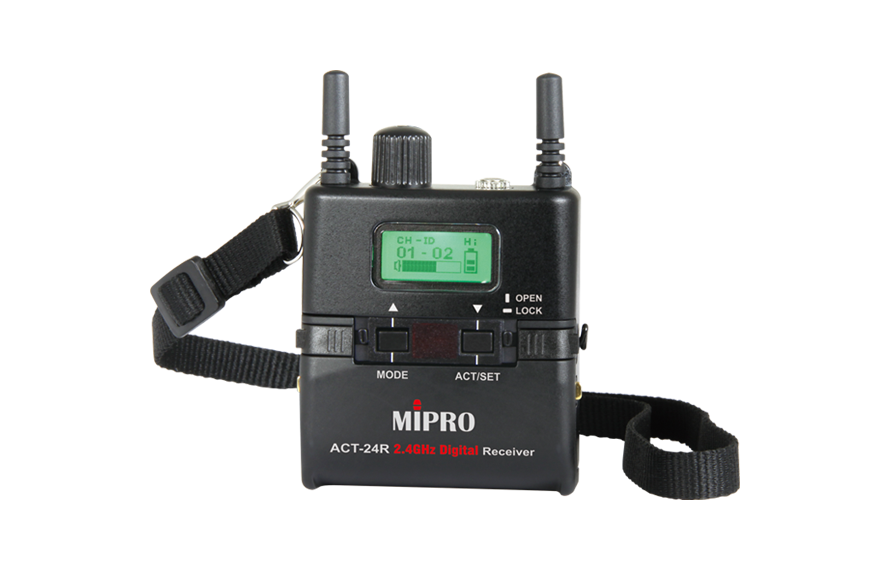

ACT-24R 2.4 GHz Digital Receiver
*The product images and specifications shown on our website may differ from the actual products due to different versions.
New Product
Digital
ISM Band
ISM 2.4 GHz
LCD Display
ACT™ Channel Synchronization
Li-ion
- Industry’s most compact and smallest housing. Featuring a lightweight and rugged plastic case to meet professional requirements.
- Stable digital modulation circuitry. All frequencies are located in one band. It can skip most Wi-Fi frequencies and eliminates interference from 2.4 GHz communication products.
- True diversity receiving technology eliminates signal dropout.
- A backlit graphic LCD displays various function settings.
- Pairs with new handheld and bodypack transmitters can be charged via USB Type-C. The ACT-24R can be recharged by a charging station and is easy for battery replacement.
Product Introduction
| Model | ACT-24R |
|---|---|
| Name | 2.4 GHz Digital Receiver |
| Frequency Band & Modulation | ISM 2.4 GHz (2,400 ~ 2,483.5 MHz). Digital modulation. |
| Bandwidth | 83 MHz |
| Receiving Mode | True diversity receiving |
| Display | Backlit graphical LCD |
| Characteristics | Latency < 4 ms, Dynamic range > 106 dBA, THD < 0.1 %. |
| Preset Channels | 12 |
| Transmitters | ACT-240H handheld, ACT-240T bodypack, MT-24A interlinking transmitter. |
| Optional Accessories | A clip and a cable |
| Power Supply | One ICR 18500 lithium battery |
| Charger | MP-24-4, MP-8 One-slot Charging Station. |
| Dimensions | 63 × 85 × 26 mm (W×H×D) |
| Weight | Approx. 84 g |
| Note | Refer to the actual product in the event of product discrepancy. |
Related Products
Download
| Spec Sheet | |||||
|---|---|---|---|---|---|
 |
ACT-24R | 2.4 GHz Digital Receiver (Ver.2021) | 0.20M | 2021/08/17 |  |
|
