Product Name : UHF Wideband RF Power Amplifier

*The product images and specifications shown on our website may differ from the actual products due to different versions.


  • UHF Band

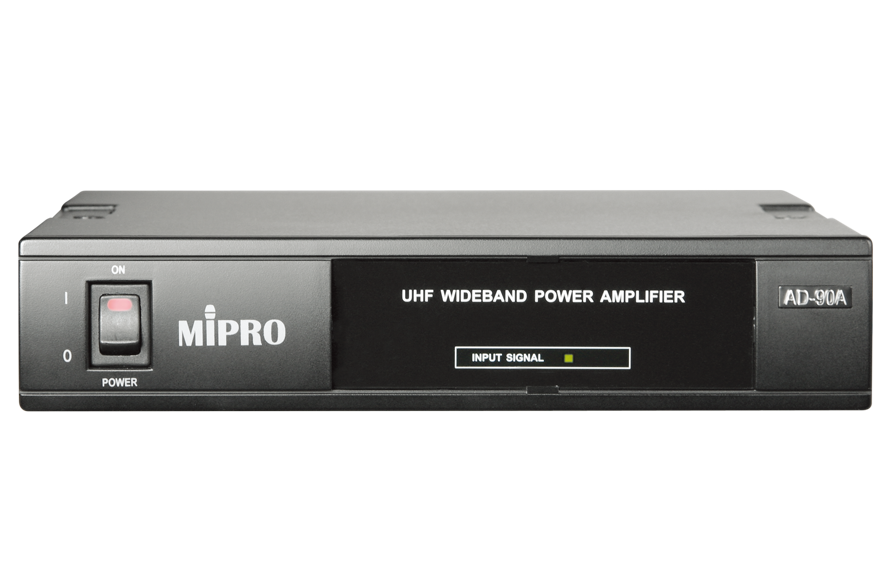

  • LED Display
Firstly introduced in 2006, the AD-90A is designed to boost signal strength for MI-909T, MT-92A, MTS-100 transmitters and the AD-90S splitter. Connect it to AT-70W, AT-90W, and AT-100 external antennas to obtain longer signal transmission distance and optimal RF reception quality.
Product Introduction
ModelAD-90A
Name UHF Wideband RF Power Amplifier
Frequency Range UHF 470 ~ 960 MHz
System Gain 8 ± 1 dB

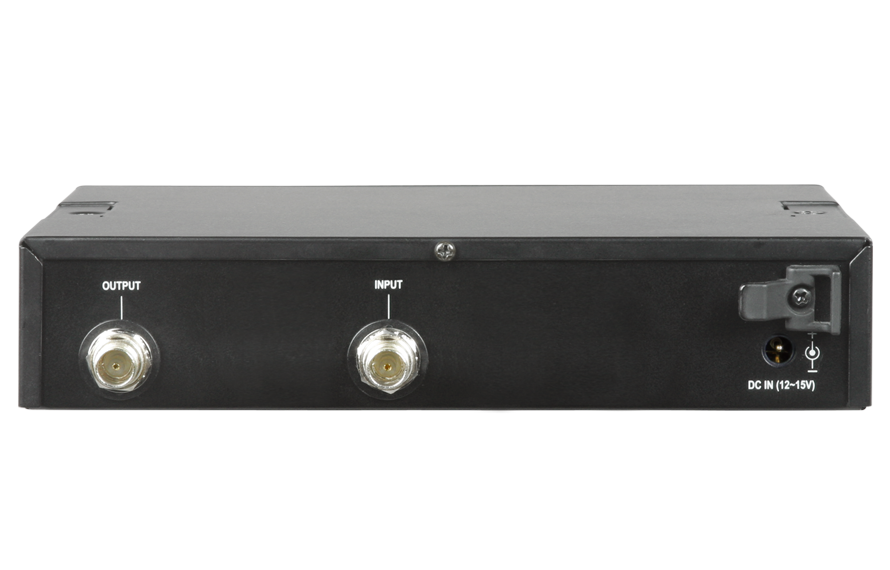

Connectors TNC female (1 input, 1 output)
Max. RF Output Power 1 W
Power Supply 12 ~ 15 V DC
Dimensions 210 × 44 × 204 mm (W×H×D)
Weight Approx. 1.0 kg
Note Refer to the actual product in the event of product description discrepancy.

Download

Spec Sheet
AD-90A UHF Wideband RF Power Amplifier (Ver.2021) 0.18M | 2021/08/23
User Guide
AD-90A UHF Wideband RF Power Amplifier 0.93M | 2021/09/09
