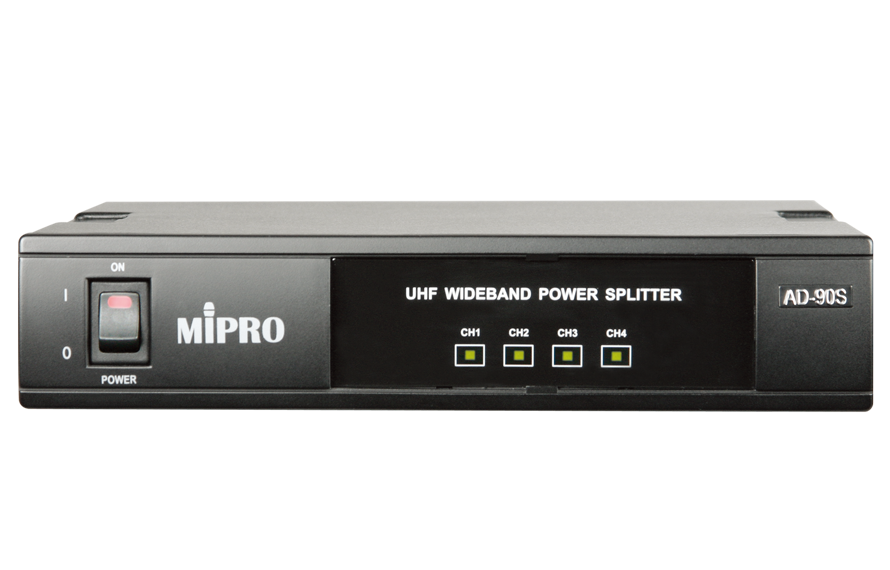

AD-90S UHF Wideband RF Power Splitter
*The product images and specifications shown on our website may differ from the actual products due to different versions.
UHF Band
LED Display
Firstly introduced into the market in 2006, the AD-90S was designed to provide MIPRO’s MI-909T stereo in-ear monitoring transmitter, MT-92A wireless interlinking transmitter or MTS-100 digital stationary transmitter to divide its output power into 4 transmitting antennas without power loss. Each channel has a maximum output level of +26 dBm (0.4 W).
Product Introduction
| Model | AD-90S |
|---|---|
| Name | UHF Wideband RF Power Splitter |
| Frequency Range | UHF 470 ~ 960 MHz |
| System Gain | 0 ~ 2 dB |

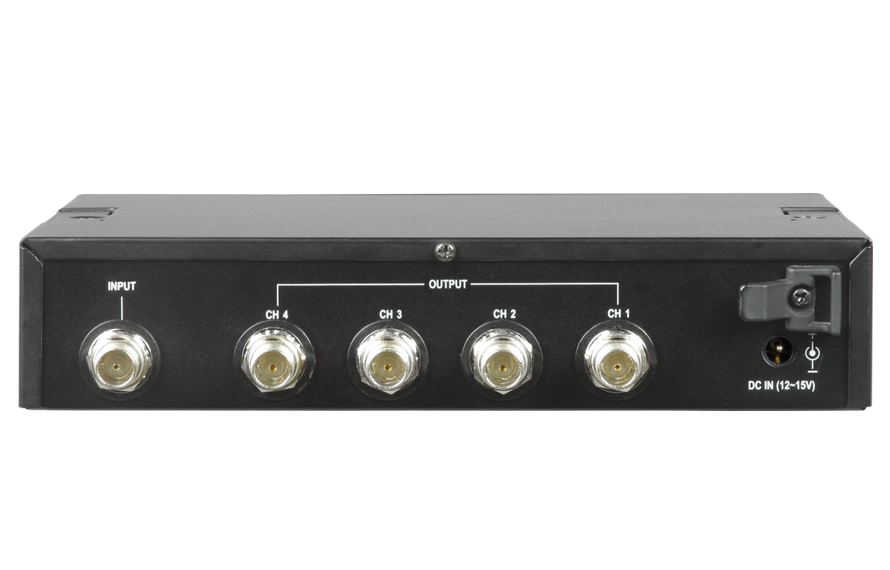

| Connectors | TNC female (1 input, 4 outputs) |
| Max. RF Output Power | 26 dBm |
| Power Supply | 12 ~ 15 V DC |
| Dimensions | 210 × 44 × 204 mm (W×H×D) |
| Weight | Approx. 1.1 kg |
| Note | Refer to the actual product in the event of product description discrepancy. |
