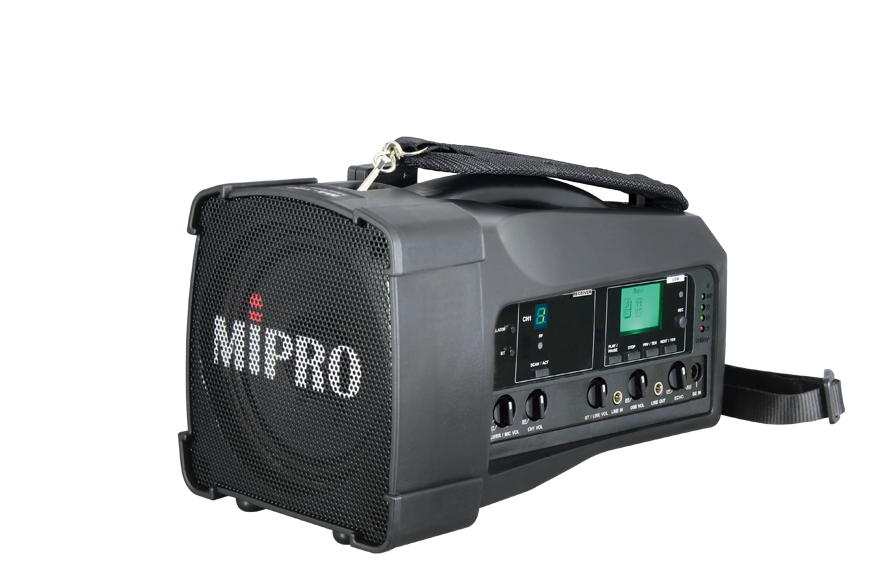

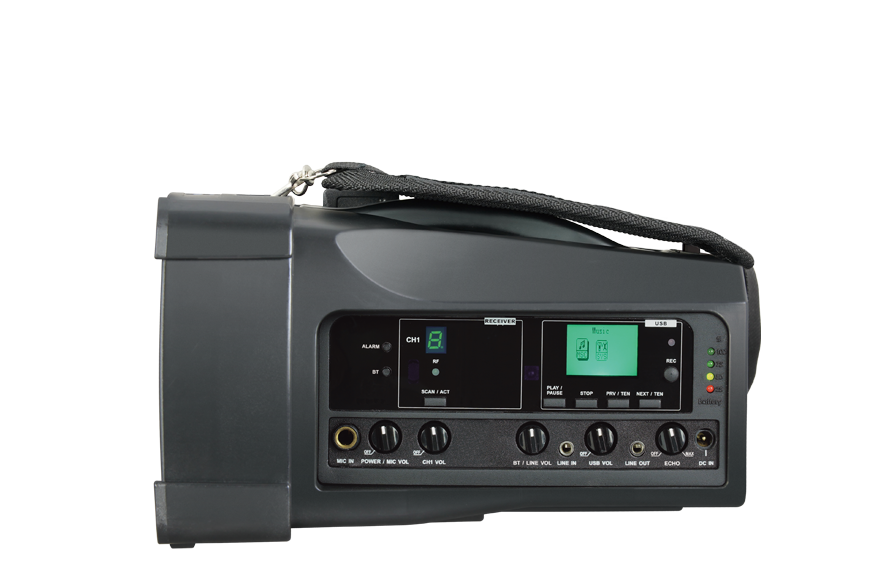

MA-100 Single-channel Compact Personal Wireless Megaphone
*The product images and specifications shown on our website may differ from the actual products due to different versions.
UHF
ISM
- Easy hand-carrying or stand-mounting makes MA-100 the most ideal megaphone for various applications.
- A robust and lightweight speaker cabinet integrates with a redesigned handle and a high efficiency full-range speaker to deliver clear and powerful sound.
- One UHF or ISM 5.8 GHz band receiver module for long-distance and reliable reception performance.
- Plug-in Bluetooth module, USB player / recorder, built-in echo function, and alarm siren which has a fade-in effect.
- Equipped with audio input mixer. Each audio source has individual volume control.
- Removable Li-ion battery holder for fast insertion and replacement.
- Bluetooth with TWS technology can combine two megaphones for stereo sound.
Product Introduction
| Model | MA-100 | MA-100D |
|---|---|---|
| Name | Single-channel Compact Personal Wireless Megaphone | Dual-channel Compact Personal Wireless Megaphone |
| Max. SPL | 101 dB | 101 dB |
| Drivers | 5" full-range | 5" full-range |
| Frequency Range | 100 Hz – 16 kHz | 100 Hz – 16 kHz |
| Audio Inputs | MIC IN: 1 × 1/4" (6.3 mm) LINE IN: 1 × 1/8" (3.5 mm) |
MIC IN: 1 × 1/4" (6.3 mm) LINE IN: 1 × 1/8" (3.5 mm) |
| Audio Output | LINE OUT: 1 × 1/8" (3.5 mm) | LINE OUT: 1 × 1/8" (3.5 mm) |
| Amplifier | Class D | Class D |
| Output Power | 50 W RMS, 85 W peak | 50 W RMS, 85 W peak |
| Receiver Module | 1 × UHF or ISM 5.8 GHz module | 2 × UHF or ISM 5.8 GHz module |
| Audio Players | Plug-in Bluetooth module & USB recorder / player | Plug-in Bluetooth module & USB recorder / player |
| Other Functions | Echo on mics & siren sound effect | Echo on mics & siren sound effect |
| Power Supply | DC (19 – 24 V) socket for external AC (100 – 240 V) power supply | DC (19 – 24 V) socket for external AC (100 – 240 V) power supply |
| Battery | 4 × 18650 Li-ion batteries (MB-14) | 4 × 18650 Li-ion batteries (MB-14) |
| Battery Indicator | 4-segment indicator (25/50/75/100%) | 4-segment indicator (25/50/75/100%) |
| Standby Time | Up to 10 hours | Up to 10 hours |
| Dimensions | 135 × 144 × 240 mm | 135 × 144 × 240 mm |
| Weight | Approx. 1.9 kg (batteries included) | Approx. 1.9 kg (batteries included) |
| Optional Accessories | SC-100 carry bag, MS-30 tripod stand, MM Series microphones | SC-100 carry bag, MS-30 tripod stand, MM Series microphones |
| Patents and Approvals | Patented. Telecom and safety regulations approved | Patented. Telecom and safety regulations approved |
| Note | Refer to the actual product in the event of product description discrepancy | Refer to the actual product in the event of product description discrepancy |
Related Videos
-

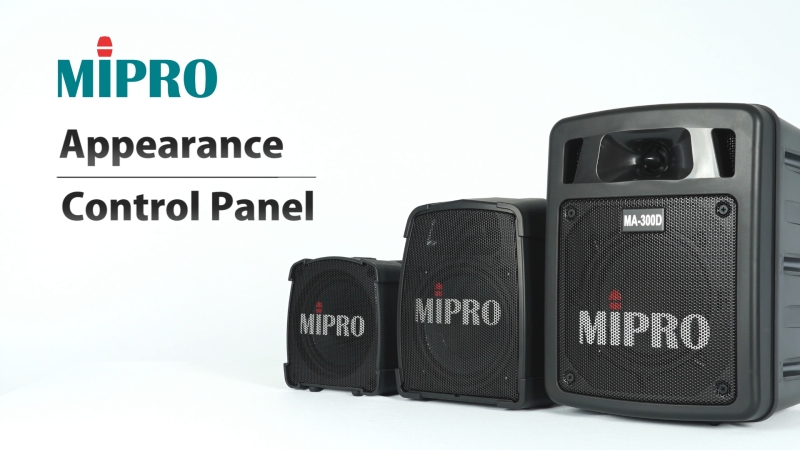

MA-100 / MA-200 / MA-300 Appearance and Control Panel
-

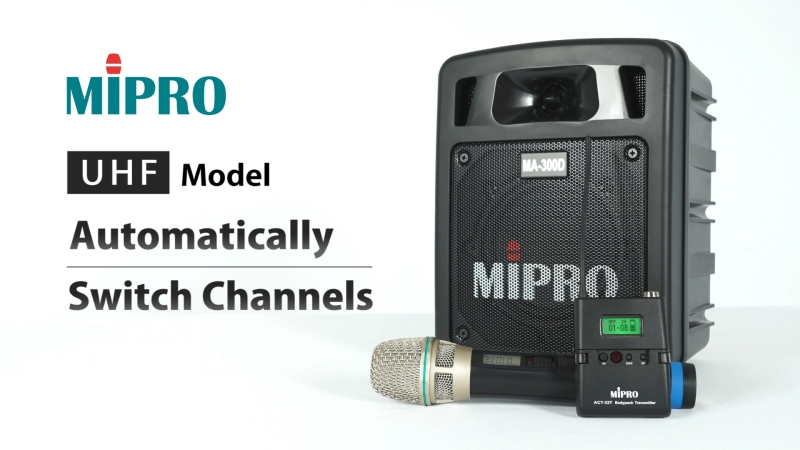

MA-100 / MA-200 / MA-300 UHF models - ACT Synchronization and Switch Channels
-

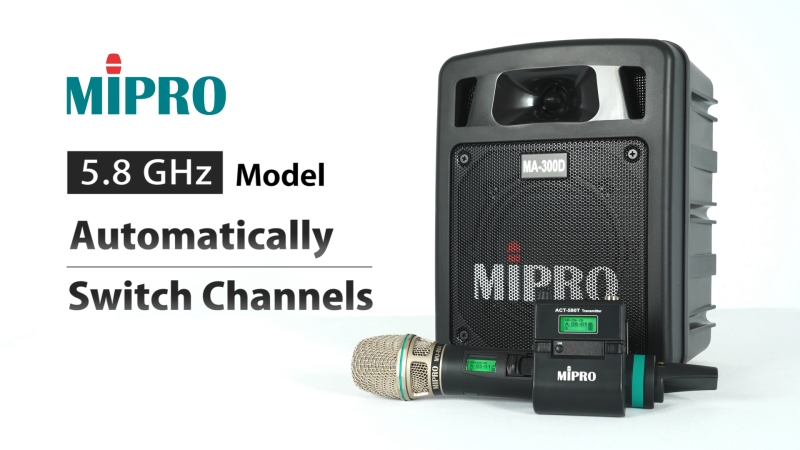

MA-100 / MA-200 / MA-300 5.8 GHz models - ACT Synchronization and Switch Channels
-

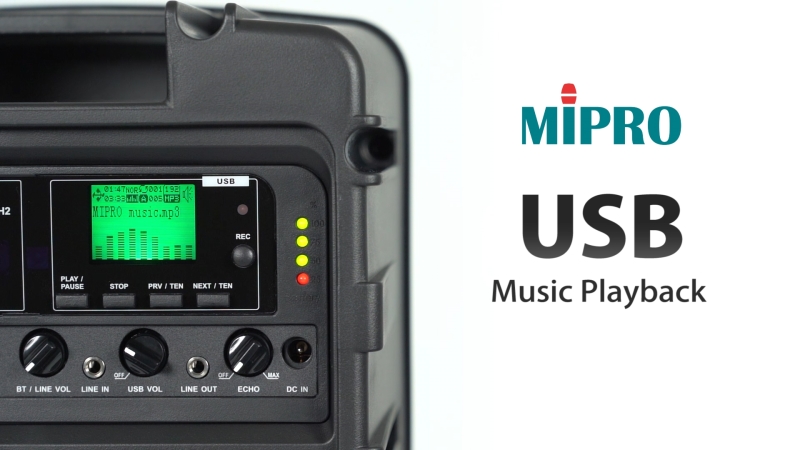

MA-100 / MA-200 / MA-300 USB Music Playback and Recording Function
-

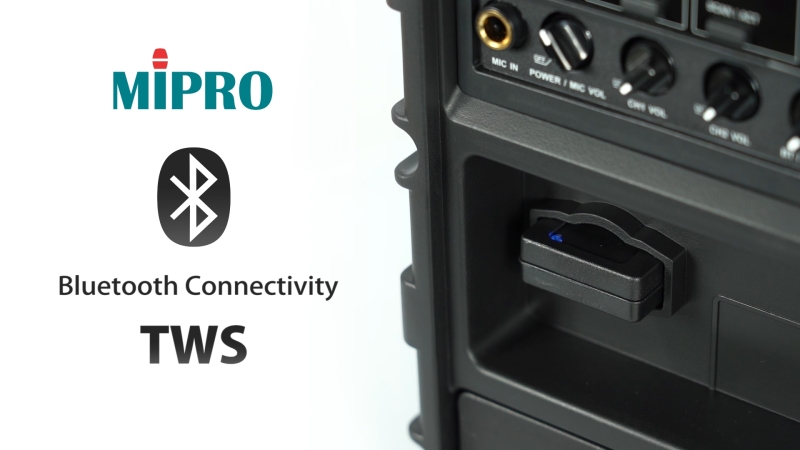

MA-100 / MA-200 / MA-300 Bluetooth Connectivity and True Wireless Stereo Pairing
-

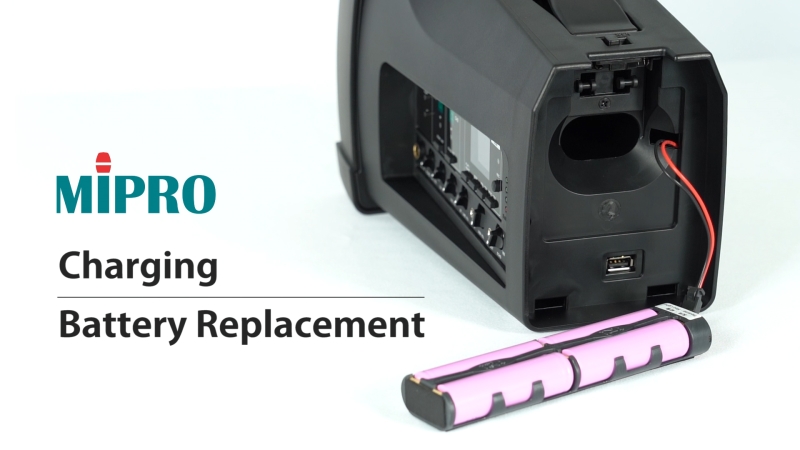

MA-100 / MA-200 / MA-300 Battery Charging and Replacement
Related Products
Download
| Spec Sheet | |||||
|---|---|---|---|---|---|
 |
MA-100 | Single-channel Compact Personal Wireless Megaphone (Ver.2023) | 0.23M | 2023/03/21 |  |
|
|
MA-100D | Dual-channel Compact Personal Wireless Megaphone (Ver.2023) | 0.24M | 2023/03/21 | |
|
| User Guide | |||||
|---|---|---|---|---|---|
 |
MA-100/200 Series | Personal Wireless PA Systems (MA-100 / MA-100D / MA-200 / MA-200D) | 9.56M | 2022/05/04 | |
|
