• MA-101B
  • MA-101G

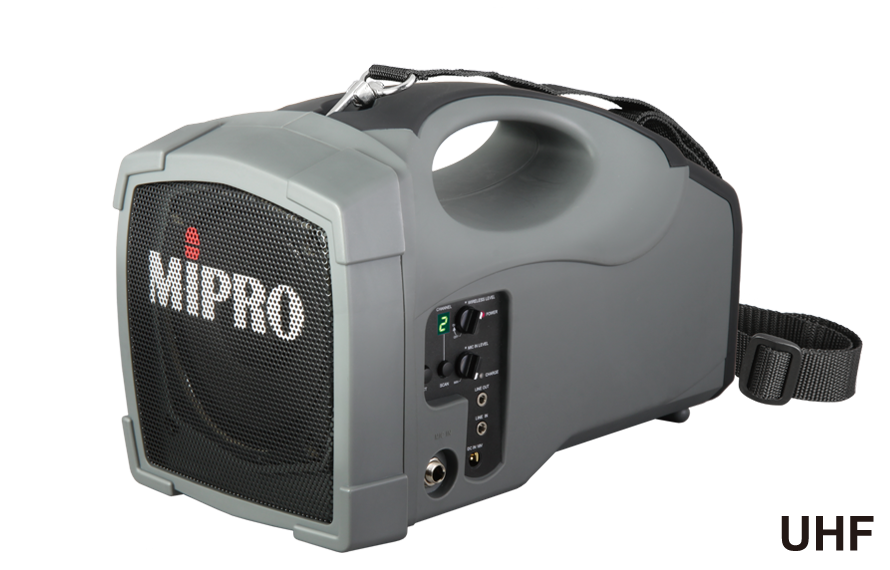

Product Name : Single-channel Personal Wireless Megaphone

*The product images and specifications shown on our website may differ from the actual products due to different versions.

  • MA-101B / MA-101G has a high efficiency full-range speaker to deliver clear and powerful sound.
  • One built-in UHF / ISM band receiver module for long-distance and reliable reception performance.
  • Simple to use and can be easily carried via the built-in handle, shoulder strap, or mounted on a microphone stand.
  • MA-101G has Bluetooth function, allowing devices such as mobile phones to stream music wirelessly.
  • Each audio source has an individual volume control.
  • Powered by rechargeable Li-ion battery instead of lead-acid battery for improved reliability, longer life and reduced weight.
Product Introduction
ModelMA-101BMA-101G
NameUHF Single-channel Personal Wireless MegaphoneISM Single-channel Personal Wireless Megaphone
Max. SPL107 dB107 dB
Drivers5" full-range5" full-range
Frequency Range125 Hz – 18 kHz125 Hz – 18 kHz
Audio InputsMIC IN: 1 × 1/4" (6.3 mm)
LINE IN: 1 × 1/8" (3.5 mm)
MIC IN: 1 × 1/4" (6.3 mm)
LINE IN: 1 × 1/8" (3.5 mm)
Audio OutputLINE OUT: 1 × 1/8" (3.5 mm)LINE OUT: 1 × 1/8" (3.5 mm)
AmplifierClass ABClass D
Output Power45 W RMS, 76 W peak50 W RMS, 85W peak
Receiver1 × UHF. Preset 16 selectable channels.1 × ISM 5.8 GHz. Preset 10 selectable channels.
Audio PlayersN/ABluetooth
Power SupplyDC (19 – 24 V) socket for external AC (100 – 240 V) power supplyDC (19 – 24 V) socket for external AC (100 – 240 V) power supply
Battery TypeBuilt-in MB-25 Li-ion batteryBuilt-in MB-25 Li-ion battery
Battery IndicatorSingle LED IndicatorSingle LED Indicator
Standby TimeUp to 10 hoursUp to 10 hours
Dimensions160 × 178 × 285 mm (W × H × D)160 × 178 × 285 mm (W × H × D)
Weight (battery included)Approx. 2.1 kgApprox. 2.1 kg
Optional AccessoriesSC-100 carry bag, MS-30 tripod stand, MM Series microphonesSC-100 carry bag, MS-30 tripod stand, MM Series microphones
Patents and ApprovalsPatented. Telecom and safety regulations approvedPatented. Telecom and safety regulations approved
NoteRefer to the actual product in the event of product description discrepancyRefer to the actual product in the event of product description discrepancy

Download

Spec Sheet
MA-101G ISM Single-channel Personal Wireless Megaphone (Ver.2023) 0.21M | 2023/03/21
MA-101B UHF Single-channel Personal Wireless Megaphone (Ver.2023) 0.20M | 2023/03/21
User Guide
MA-101 Series Personal Wireless Megaphone (MA-101B / MA-101G) 6.11M | 2023/10/04
