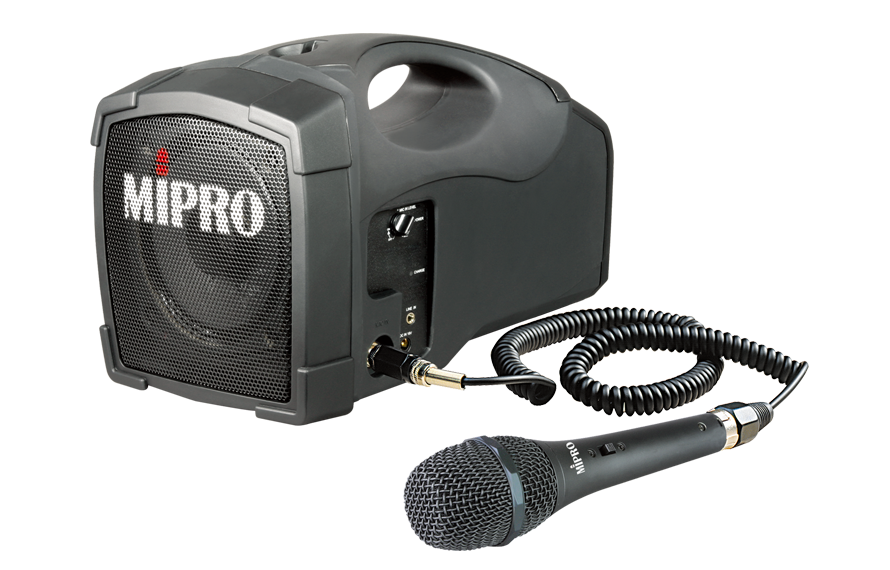

MA-101C Cabled Megaphone
*The product images and specifications shown on our website may differ from the actual products due to different versions.
- Full-range high efficiency loudspeaker.
- Wired microphone only.
- Can be easily carried via the built-in handle, shoulder strap, or mounted on a microphone stand.
- Each audio source has an individual volume control.
Product Introduction
| Model | MA-101C |
|---|---|
| Name | Cabled Megaphone |
| Max. SPL | 107 dB |
| Drivers | 5" full-range |
| Frequency Range | 125 Hz – 18 kHz |
| Audio Inputs | MIC IN: 1 × 1/4" (6.3 mm) LINE IN: 1 × 1/8" (3.5 mm) |
| Amplifier | Class AB |
| Output Power | 45 W RMS, 76 W peak |
| Receiver | N/A. MM-107 wired microphone is included. |
| Power Supply | DC (19 – 24 V) socket for external AC (100 – 240 V) power supply |
| Battery Type | Lead-acid battery pack (MB-30) |
| Battery Indicator | Single LED Indicator |
| Standby Time | Up to 8 hours |
| Dimensions | 160 × 178 × 285 mm (W × H × D) |
| Weight | Approx. 3.1 kg (battery included) |
| Optional Accessories | SC-100 carry bag, MS-30 tripod stand, MM Series microphones |
| Note | Patented. Telecom and safety regulations approved |
Download
| Spec Sheet | |||||
|---|---|---|---|---|---|
 |
MA-101C | Cabled Megaphone (Ver.2024) | 0.20M | 2024/03/20 |  |
|
| User Guide | |||||
|---|---|---|---|---|---|
 |
MA-101C | Cabled Megaphone | 3.24M | 2023/12/28 | |
|
