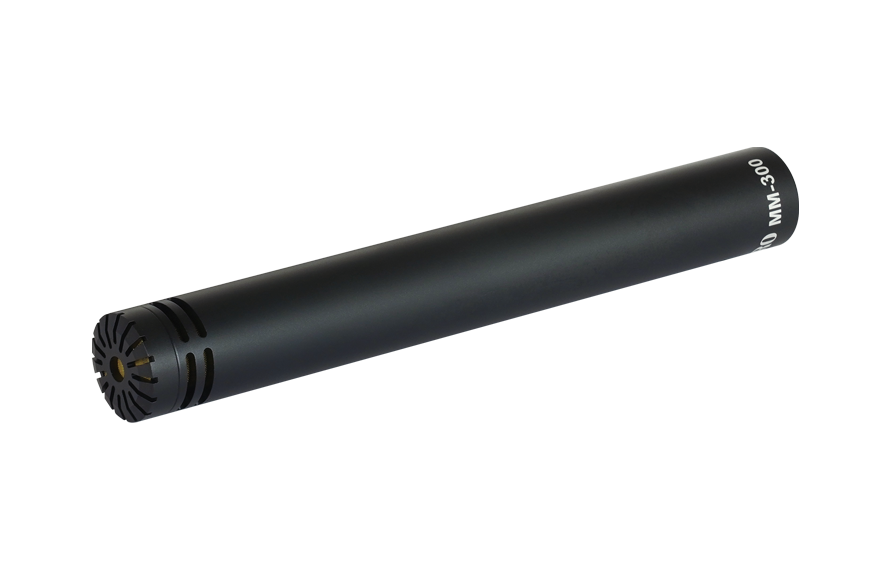

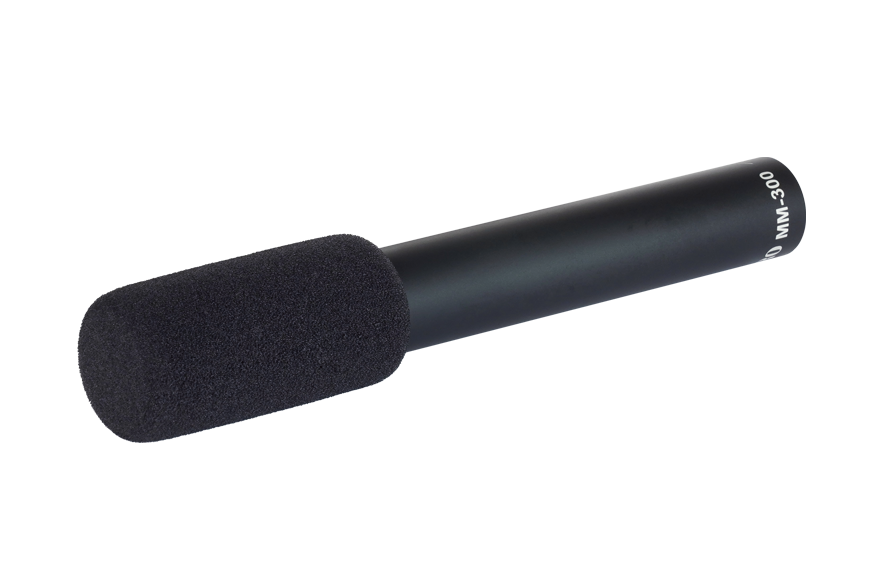

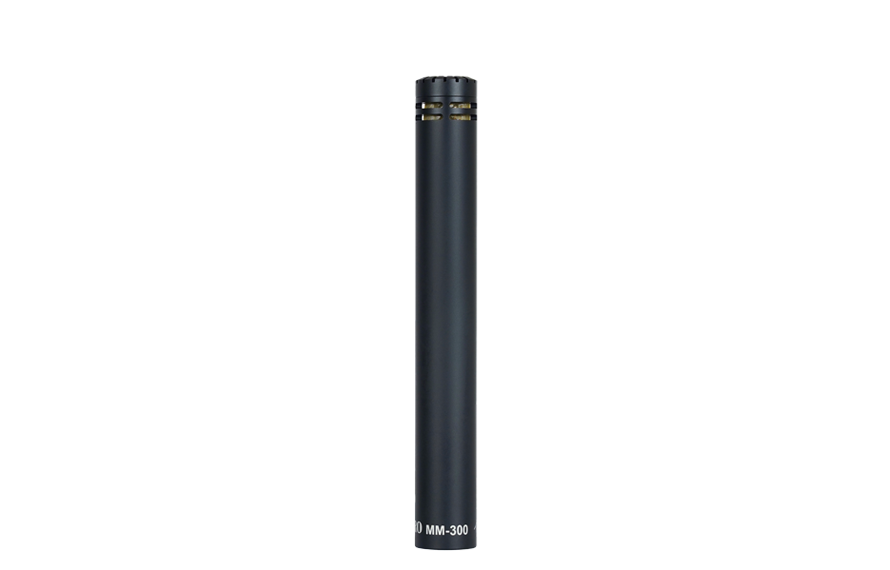

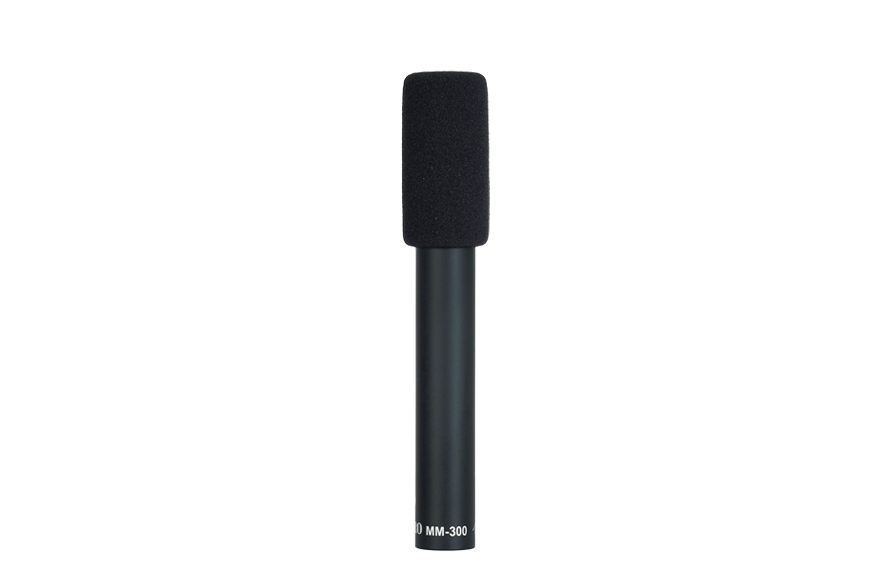

MM-300 Cardioid Instrument Microphone
*The product images and specifications shown on our website may differ from the actual products due to different versions.
- MM-300 / MM-500 equips a precise cardioid high sensitivity capsule, featuring wide directionality, low feedback and high dynamic range.
- Ideal for live shows and pick-ups and recordings of musical instruments.
Product Introduction
| Model | MM-300 | MM-500 |
|---|---|---|
| Name | Cardioid Instrument Microphone | Cardioid Instrument Microphone |
| Capsule Module | Fixed capsule unit | Fixed capsule unit |
| Polar Pattern | Cardioid | Cardioid |
| Type | Condenser | Condenser |
| Housing | Aluminum alloy | Aluminum alloy |
| Sensitivity | -43 dBV / Pa | -43 dBV / Pa |
| Frequency Response | 50 Hz – 20 kHz | 50 Hz – 20 kHz |
| Self-Noise | < 17 dBA SPL | < 17 dBA SPL |
| S/N Ratio | > 77 dB @ 94 dB SPL | > 77 dB @ 94 dB SPL |
| Max. SPL | 149 dB | 149 dB |
| Dynamic Range | 132 dB | 132 dB |
| Power Supply | Phantom power DC 12 – 48 V │ Current Drain: Approx. 2.0 mA | Phantom power DC 12 – 48 V │ Current Drain: Approx. 2.0 mA |
| Output Impedance | 200 Ω | 200 Ω |
| Dimensions | 21 × 160 mm (Ø × L) | 23 × 180 mm (Ø × L) |
| Weight | Approx. 88 g | Approx. 130 g |
Download
| Spec Sheet | |||||
|---|---|---|---|---|---|
 |
MM-300 | Cardioid Instrument Microphone (Ver.2024) | 0.24M | 2024/03/21 |  |
|
|
MM-500 | Cardioid Instrument Microphone (Ver.2024) | 0.24M | 2024/03/21 | |
|
| User Guide | |||||
|---|---|---|---|---|---|
 |
MM Series | Recording Microphones (MM-300 / MM-500) | 1.06M | 2021/09/10 | |
|
