Product Name : UHF Digital Plug-on Transmitter

*The product images and specifications shown on our website may differ from the actual products due to different versions.


  • iF DESIGN AWARD 2018

  • Digital

  • UHF Band

  • 72 MHz

  • LCD Display

  • ACT™ Channel Synchronization

  • Li-ion

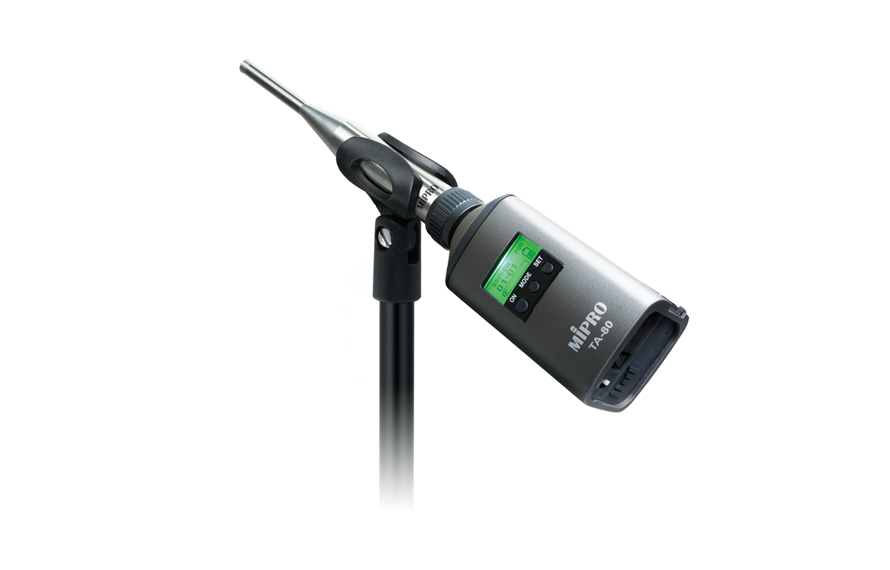

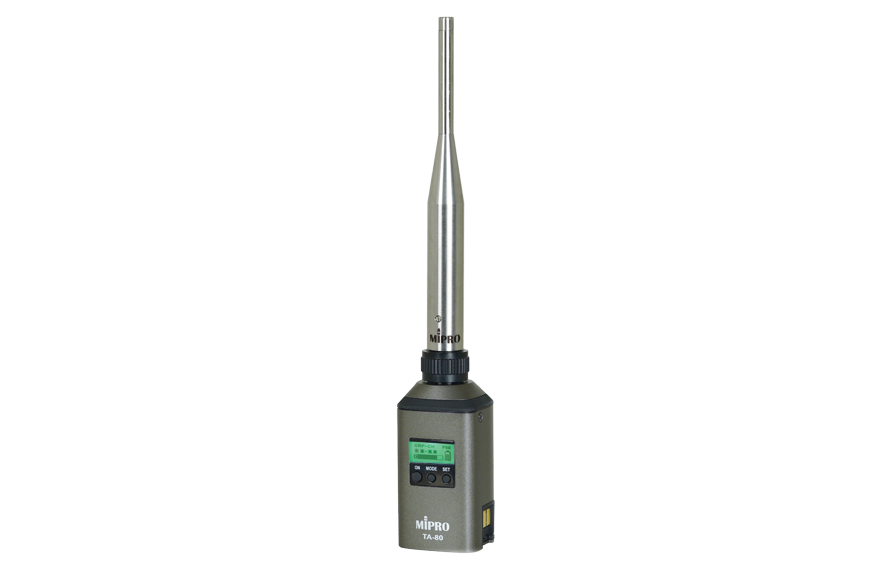

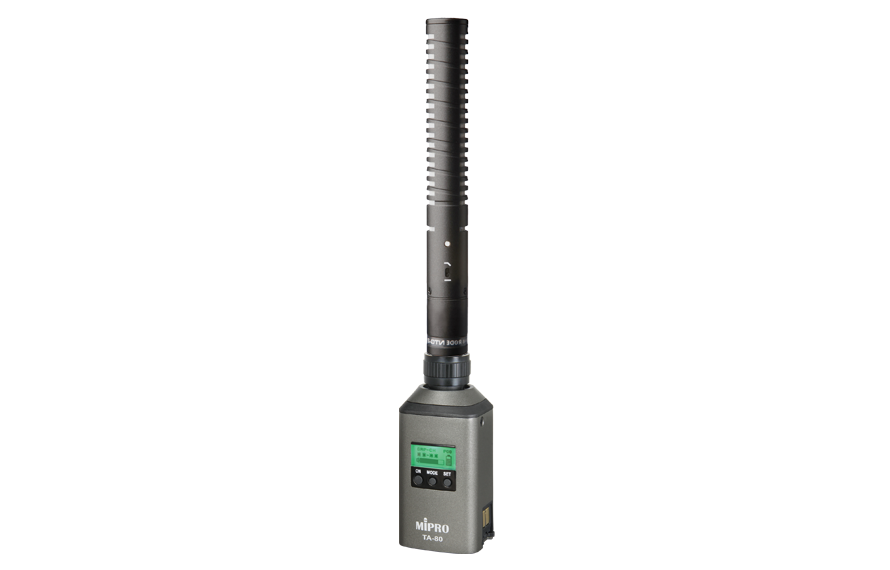

  • The TA-80 features a flat and wide frequency response, ultra-low T.H.D. and noise floor, fast transient response, and high S/N ratio. It solves the problems of tangling microphone cables and defects of analog transmission. Thus, it is an ideal plug-on transmitter to reproduce the natural sound of any premium wired microphone.
  • A balanced XLR input jack for any condenser microphone to plug on. It provides 8 gain levels and supplies selectable 12 / 48V, up to 10 mA phantom power for condenser microphone, and can be switched off for the dynamic microphones.
  • A built-in high-capacity lithium-ion battery enables up to 8 hours of use per charge. The TA-80 can be plugged into an intelligent charging station to recharge or simply remove the battery to recharge.

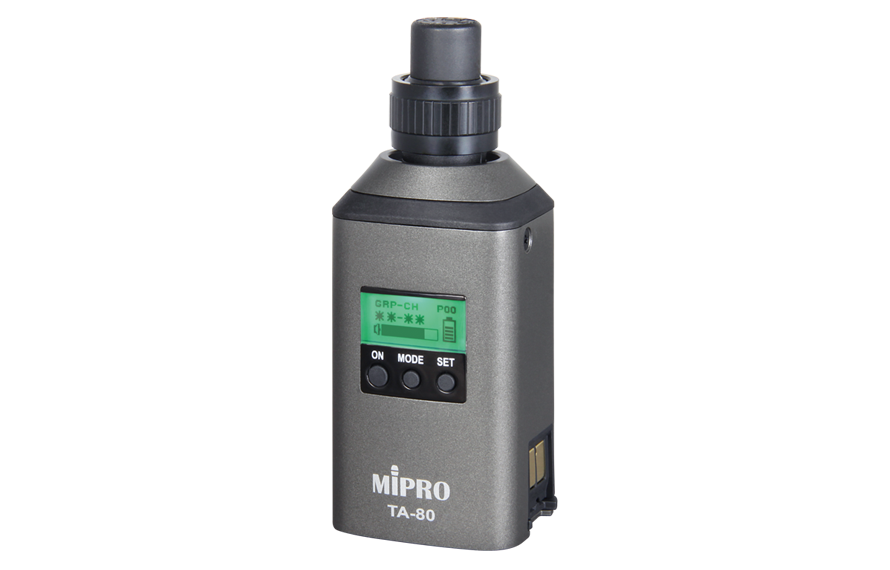

  • The compact metal housing isolates RF spurious and noise interference. It has built-in a high efficiency transmitting antenna and a green backlit LCD displaying operation parameters.
Product Introduction
ModelTA-80
Name UHF Digital Wireless Plug-on Transmitter
Carrier-Frequency Range UHF 480 ~ 960 MHz
Bandwidth 72 MHz
RF Output Power 10 / 50 mW switchable (country dependent)
Gain Setting 0 dB (default), 9 selectable settings
AF Input Level 2V max. at 0 dB
Phantom Power Selectable 12 V and 48 V at 10 mA max.
Battery Type ICR 18500 lithium-ion battery
Charger MP-8T
Dimensions 44 × 114 × 37 mm (W×H×D)
Weight Approx. 180 g
Note Refer to the actual product in the event of product discrepancy.

Download

Spec Sheet
TA-80 UHF Digital Plug-on Transmitter (Ver.2021) 0.18M | 2021/08/24
User Guide
TA-80 UHF Digital Plug-on Transmitter 6.29M | 2021/09/09
Brochure
TA-80 UHF Digital Plug-on Transmitter 3.34M | 2022/02/08
