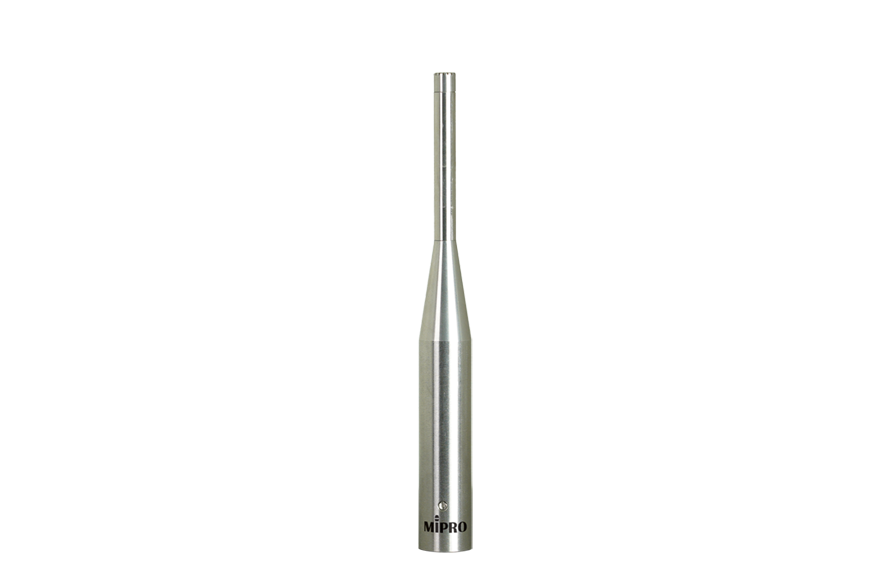

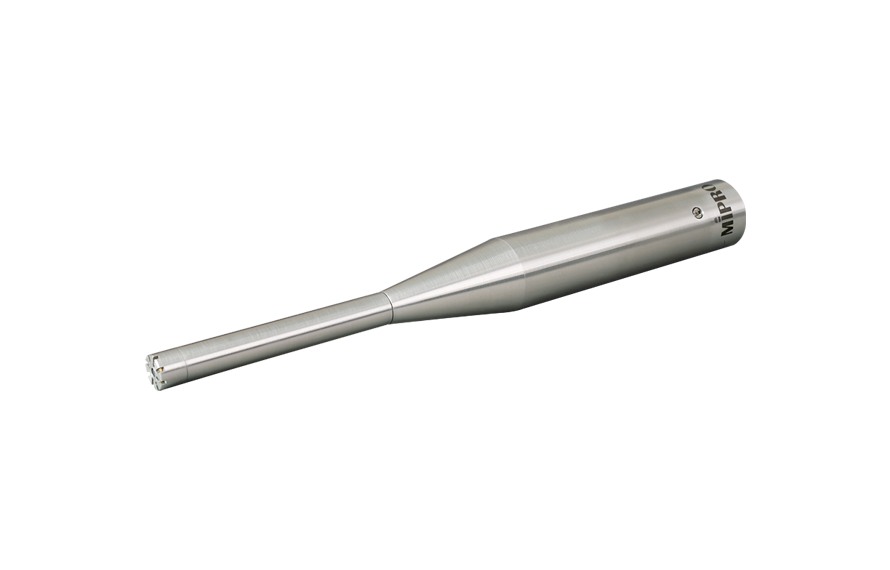

MM-100 Omnidirectional Measurement Microphone
*The product images and specifications shown on our website may differ from the actual products due to different versions.
New Product
Condenser
- Equips a precision omnidirectional capsule and features flat and wide frequency response, high sensitivity and ultra-low noise and is ideal for sound field measurement and pick-up of various musical instruments.
Product Introduction
| Model | MM-100 |
|---|---|
| Name | Omnidirectional Measurement Microphone |
| Capsule Module | Fixed capsule unit |
| Polar Pattern | Omnidirectional |
| Capsule Installation | Fixed |
| Housing | Stainless steel |
| Sensitivity | -36±2 dBV / Pa |
| Frequency Response | 20 Hz ~ 20 kHz |
| Self-Noise | < 18 dBA SPL |
| S/N Ratio | > 75 dB, at 94 dB SPL |
| Max. Input SPL | 138 dB |
| Dynamic Range | 120 dB |
| Power Supply | External phantom power 12 ~ 48 V DC |
| Current Consumption | 2.0 mA |
| Output Impedance | 200 Ω |
| Dimensions | 19 × 168 mm (Ø×L) |
| Weight | Approx. 110 g |
| Note | Refer to the actual product in the event of product description discrepancy. |
Download
| Spec Sheet | |||||
|---|---|---|---|---|---|
 |
MM-100 | Omnidirectional Measurement Microphone (Ver.2021) | 0.18M | 2021/11/16 |  |
|
| User Guide | |||||
|---|---|---|---|---|---|
 |
MM-100 | Omnidirectional Measurement Microphone | 6.29M | 2021/09/09 | |
|
