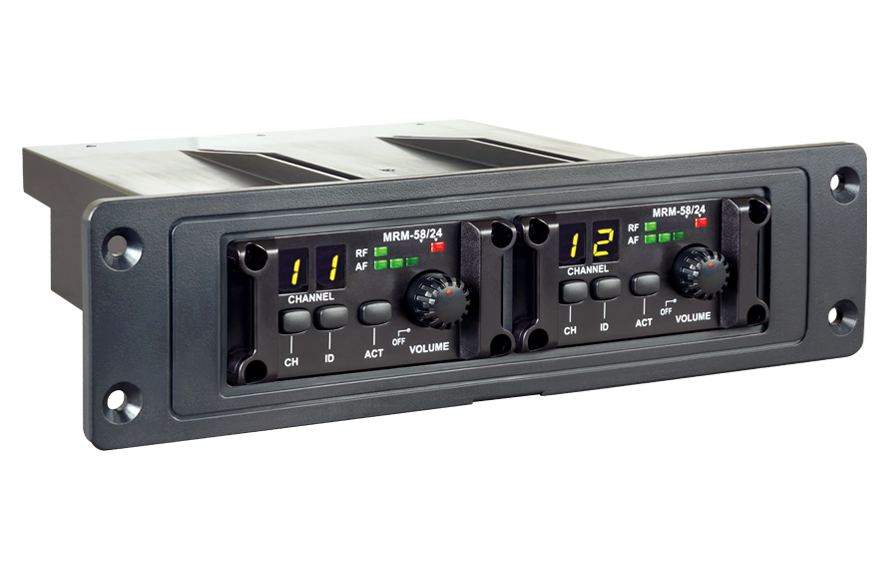

MRM-24D 2.4 GHz Digital Dual-Channel Receiver Module
*The product images and specifications shown on our website may differ from the actual products due to different versions.
ISM
2.4
LED
- 12 preset compatible channels with 8 selectable ID codes to prevent interference at the same location.
- Digital modulation and true diversity receiving eliminate signal dropouts.
- An easy-to-read LED channel, RF indicator and AF meters.
- The modular design allows for fast and easy installation or replacement.
- Affordable for personal, family users and musical instrument players.
Product Introduction
| Model | MRM-24D |
|---|---|
| Name | 2.4 GHz Digital Dual-Channel Receiver Module |
| Frequency Band | ISM 2.4 GHz |
| Bandwidth | 83.5 MHz |
| Preset Channels | 12 preset compatible channels with 8 selectable ID codes |
| Channel Setting | Manually set up the desired channel or scan for an open channel. Press the ACT button to synchronize the transmitter and receiver |
| ID Code Setup | 8 ID Codes |
| Display | LED channel, RF indicator and AF meters |
| Receiving Mode | Dual-tuner digital true diversity |
| Sensitivity | +12 dBμV |
| Latency | < 4 ms |
| S/N Ratio | > 115 dB(A), analog output |
| THD | < 0.1% @ 1 kHz |
| Frequency Response | 20 Hz – 20 kHz |
| AF Output | 2 V RMS |
| Power Supply | DC 12 – 15 V |
| Note | Refer to the actual product in the event of product description discrepancy |
