• MTG-100R
  • MTG-100Ra

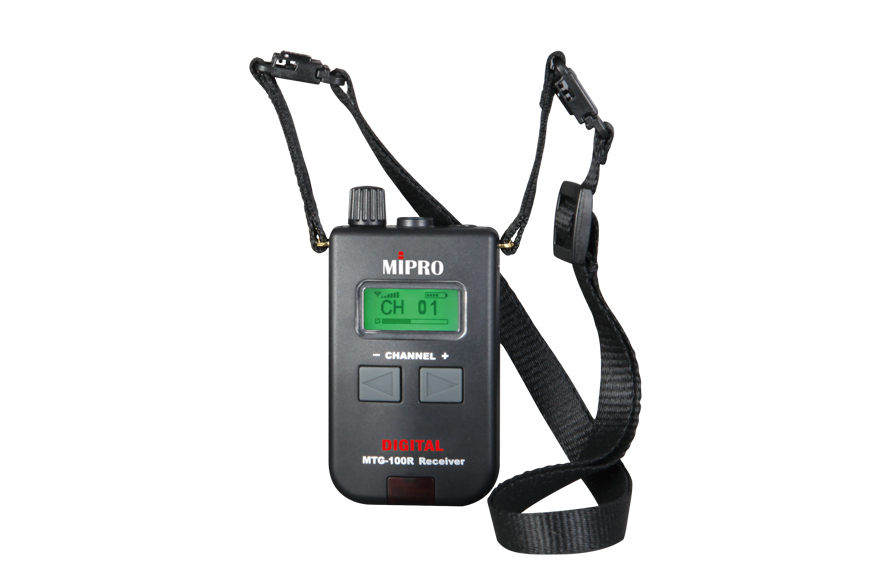

Product Name : UHF Digital Tour Guide Receivers

*The product images and specifications shown on our website may differ from the actual products due to different versions.


  • Digital

  • UHF Band

  • LCD Display

  • ACT™ Channel Synchronization
  • Up to 60-meter line-of-sight reception range. A channel-lock setting prevents accidental operation. Ethernet interface allows for system setting and management.
Product Introduction
ModelMTG-100RMTG-100Ra
Name UHF Rechargeable Battery Digital Receiver UHF AA Battery Digital Receiver
Power Supply Built-in lithium-ion battery 2 AA alkaline or 2 AA rechargeable batteries
Housing Ultra-compact, pocket-sized. Ultra-compact, pocket-sized.
Display LCD with advanced function settings and battery status. LCD with advanced function settings and battery status.
Frequency Range CEPT/EU: 863 ~ 865 MHz & USA: 926 ~ 928 MHz, license-free for users in ISM bands. CEPT/EU: 863 ~ 865 MHz & USA: 926 ~ 928 MHz, license-free for users in ISM bands.
Modulation Type Digital modulation Digital modulation
Preset Channels 16 preset channels. At least 3 compatible channels for different tour groups can be used simultaneously at the same place. 16 preset channels. At least 3 compatible channels for different tour groups can be used simultaneously at the same place.
Channel Setup Manual ACT sync or via MTG-100C-12 or MTG-100C-12-28 charger carry case. Manual ACT sync
Receiving Mode True diversity receiving with proprietary built-in dual antennas. True diversity receiving with proprietary built-in dual antennas.
Earphones E-5S, E-10S, E-20S (optional) E-5S, E-10S, E-20S (optional)
Dimensions 45 × 84 × 21 mm (W×H×D) 45 × 84 × 28 mm (W×H×D)
Weight Approx. 67 g Approx. 63 g
Note Refer to the actual product in the event of product description discrepancy. Refer to the actual product in the event of product description discrepancy.

Download

DOC
MTG-100R / MTG-100Ra Digital Receiver 0.39M | 2021/08/12
Spec Sheet
MTG-100R UHF Digital Receiver (Rechargeable Battery) (Ver.2021) 0.19M | 2021/08/25
MTG-100Ra UHF Digital Receiver (AA Battery) (Ver.2021) 0.19M | 2021/08/25
User Guide
MTG-100 Series Digital Wireless Tour Guide System (MTG-100T / MTG-100Ta / MTG-100R / MTG-100Ra / MTG-100C-4 / MTG-100C-12 / MTG-100C-28 / MTG-100C-CR) 11.24M | 2021/09/10
