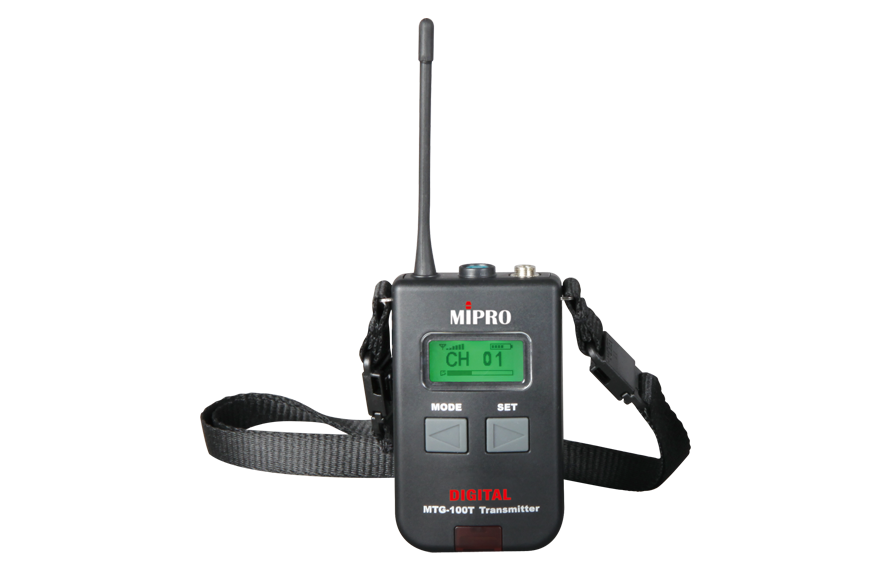

MTG-100T UHF Digital Transmitter (Rechargeable Battery)
*The product images and specifications shown on our website may differ from the actual products due to different versions.
UHF
LCD
- Industry’s smallest, ultra-compact housing.
- The LCD screen displays various function settings and battery status.
- Operates in the universal user license-free ISM band: CEPT/EU 863 – 865 MHz and USA 926 – 928 MHz.
- Digital modulation.
- Presets 16 channels. At least 3 compatible channels can be used simultaneously at the same venue.
- Manual ACT™ sync channel set-up or via charger carry case.
- Channel-lock setting prevents accidental change.
- Has Low / Mid / High switchable output power for battery saving or extending distance.
Product Introduction
| Model | MTG-100T | MTG-100Ta |
|---|---|---|
| Name | UHF Digital Transmitter (Rechargeable Battery) | UHF Digital Transmitter (AA Battery) |
| Display | Backlit LCD | Backlit LCD |
| Frequency Band | CEPT/EU: 863 – 865 MHz USA: 926 – 928 MHz | CEPT/EU: 863 – 865 MHz USA: 926 – 928 MHz |
| Preset Channels | 16 preset channels | 16 preset channels |
| Battery Type | Rechargeable Li-ion battery | 2 AA alkaline |
| Optional Accessories | MM-10, MM-202P, MU-101P, MU-53HNP, MU-23P | MM-10, MM-202P, MU-101P, MU-53HNP, MU-23P |
| Dimensions | 45 × 84 × 21 mm (W × H × D) | 45 × 84 × 28 mm (W × H × D) |
| Weight | Approx. 51 g | Approx. 48 g |
Related Videos
-
MTG-100 Tour Guides Interpretation
Download
| DOC | |||||
|---|---|---|---|---|---|
 |
MTG-100T / MTG-100Ta | Digital Transmitter | 0.25M | 2025/02/26 |  |
|
| Spec Sheet | |||||
|---|---|---|---|---|---|
 |
MTG-100T | UHF Digital Transmitter (Rechargeable Battery) (Ver.2024) | 0.19M | 2024/03/25 | |
|
|
MTG-100Ta | UHF Digital Transmitter (AA Battery) (Ver.2024) | 0.19M | 2024/03/25 | |
|
| User Guide | |||||
|---|---|---|---|---|---|
 |
MTG-100 Series | Digital Wireless Tour Guide System (MTG-100T / MTG-100Ta / MTG-100R / MTG-100Ra / MTG-100C-4 / MTG-100C-12 / MTG-100C-28 / MTG-100C-CR) | 7.48M | 2023/03/28 | |
|
