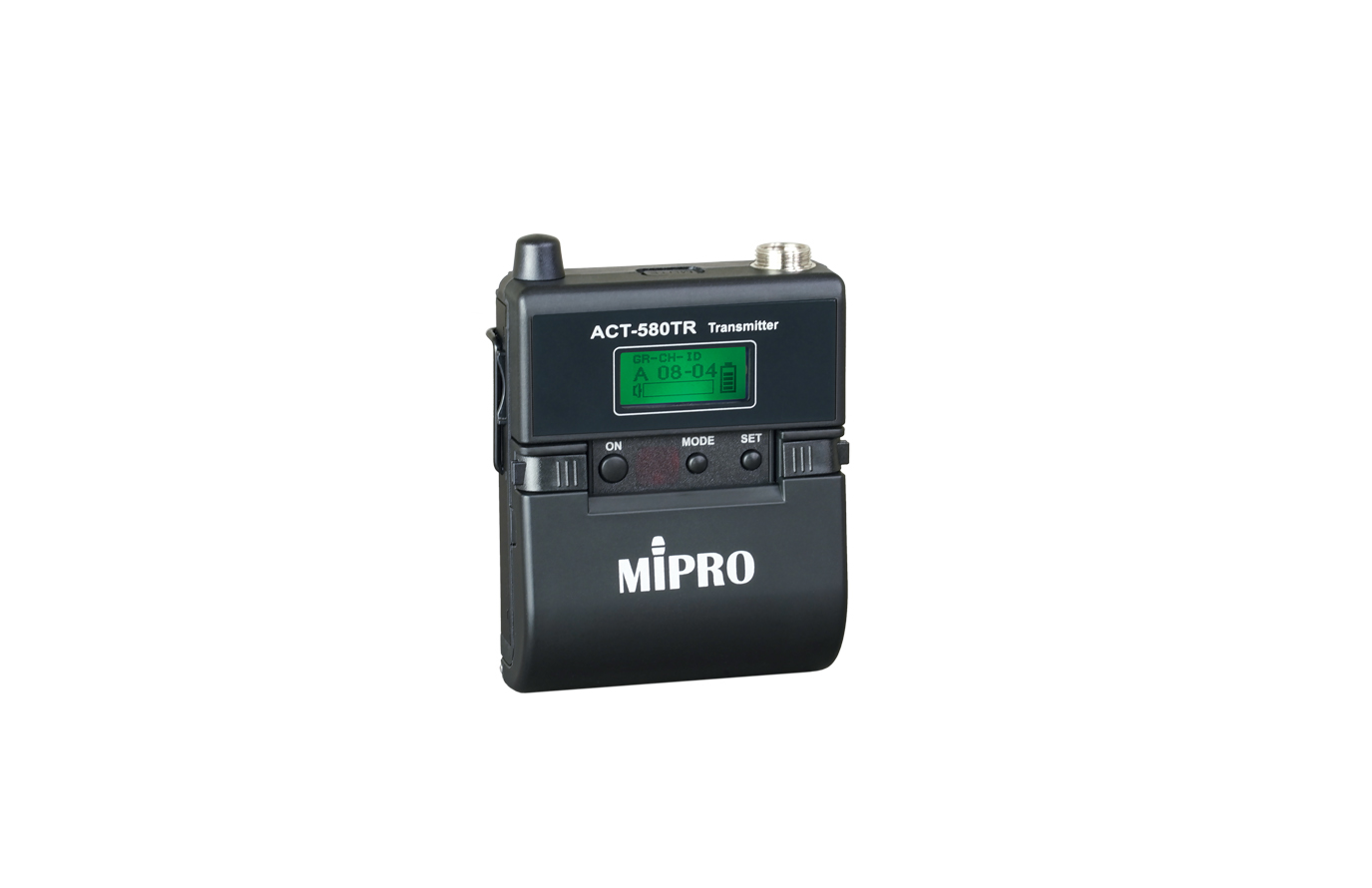

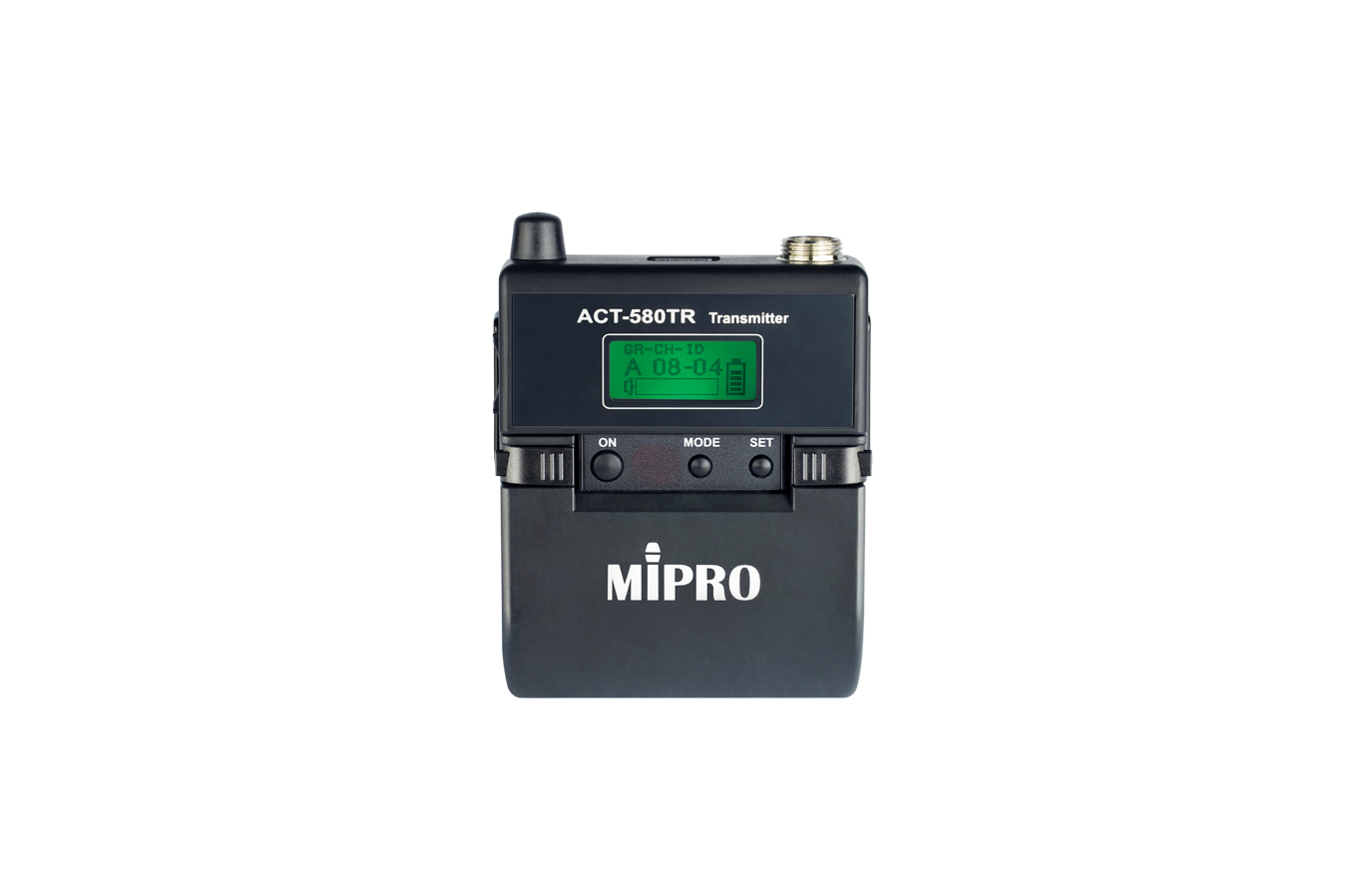

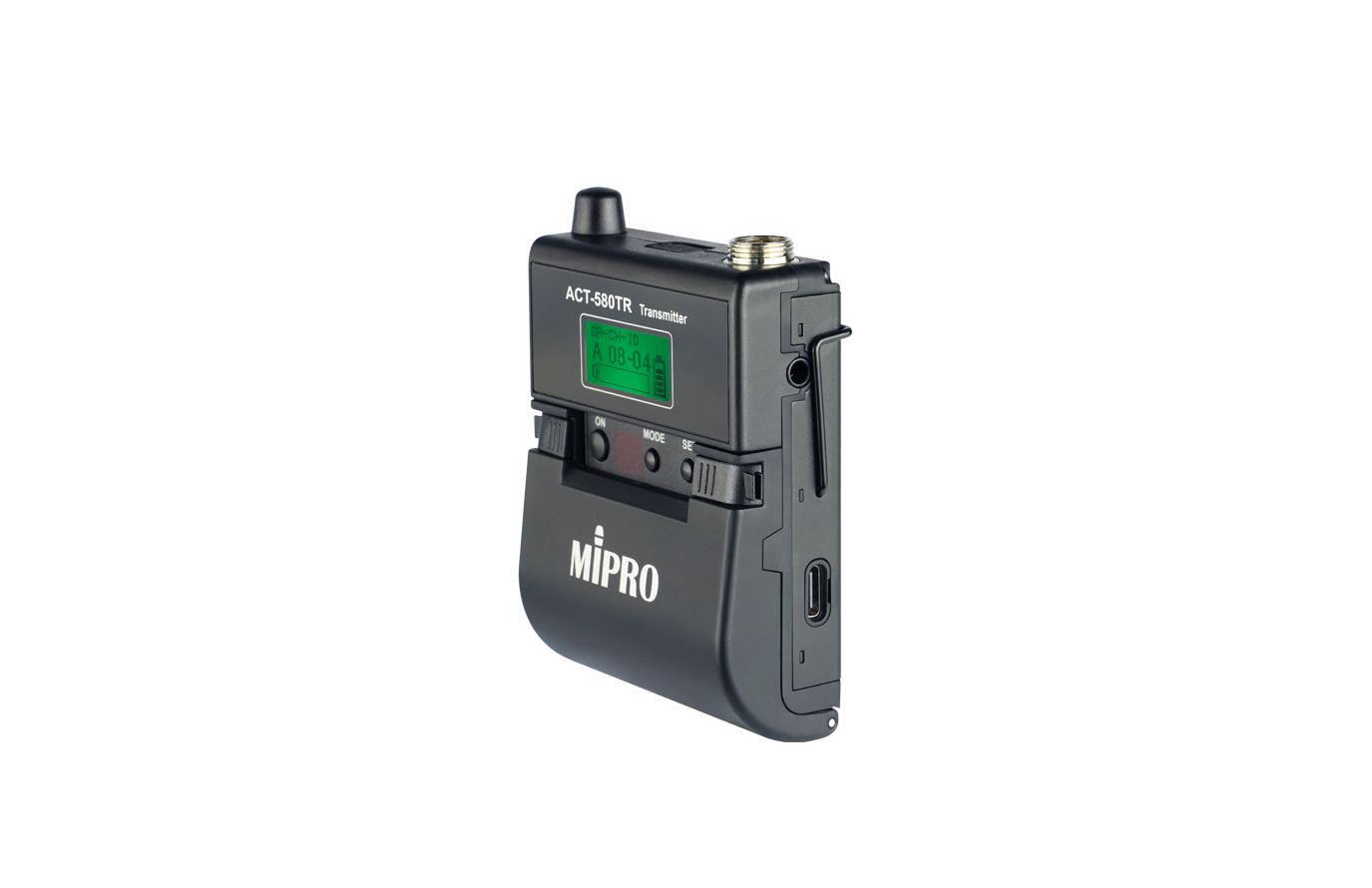

ACT-580TR

5 GHz Digital Recordable Transmitter

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Digital

Digital

UHF、ISM

ISM

Frequency_Range

5.8 GHz

VFD

LCD

ACT_Sync

ACT Sync

4_Pin_Mini_XLR

4-Pin Mini XLR

SD

SD

AA_Battery

AA

Li-ion_Battery

Li-ion

Record

Record

USB-C

USB-C

act-580tr_1
act-580tr_2
act-580tr_3
act-580tr_4
act-580tr_5
act-580tr_6
act-580tr_1
act-580tr_2
act-580tr_3
act-580tr_4
act-580tr_5
act-580tr_6
  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

  • FEATURES

    • MIPRO’s digital bodypack transmitter with integrated recording function operates in the 5 GHz ISM band and is ideal for teaching, presentations, and event documentation.
    • Compact and streamlined housing design for stable and comfortable belt-worn use.
    • A backlit LCD clearly displays channel, battery level, and AF signal strength.
    • High-resolution recording function supports 48 kHz / 24-bit WAV format with 123 dB dynamic range, low noise floor, and low distortion.
    • Supports auto-record on power-up and features a real-time clock to ensure continuous backup.
    • Equipped with a microSDHC slot supporting up to 32 GB (FAT32 format).
    • Features a MIPRO 4-Pin Mini XLR input compatible with MIPRO’s full range of lavalier and headworn microphones, as well as instrument microphones.
    • Wide dynamic range audio input supports high and low impedance sources and prevents signal overload and distortion.
    • Provides six-stage input gain control (0–36 dB) with signal strength indication for optimal adjustment.
    • Includes onboard mute switch and external mute control for flexible operation.
    • Incorporates MIPRO’s exclusive ACT™ function for fast and accurate frequency synchronization.

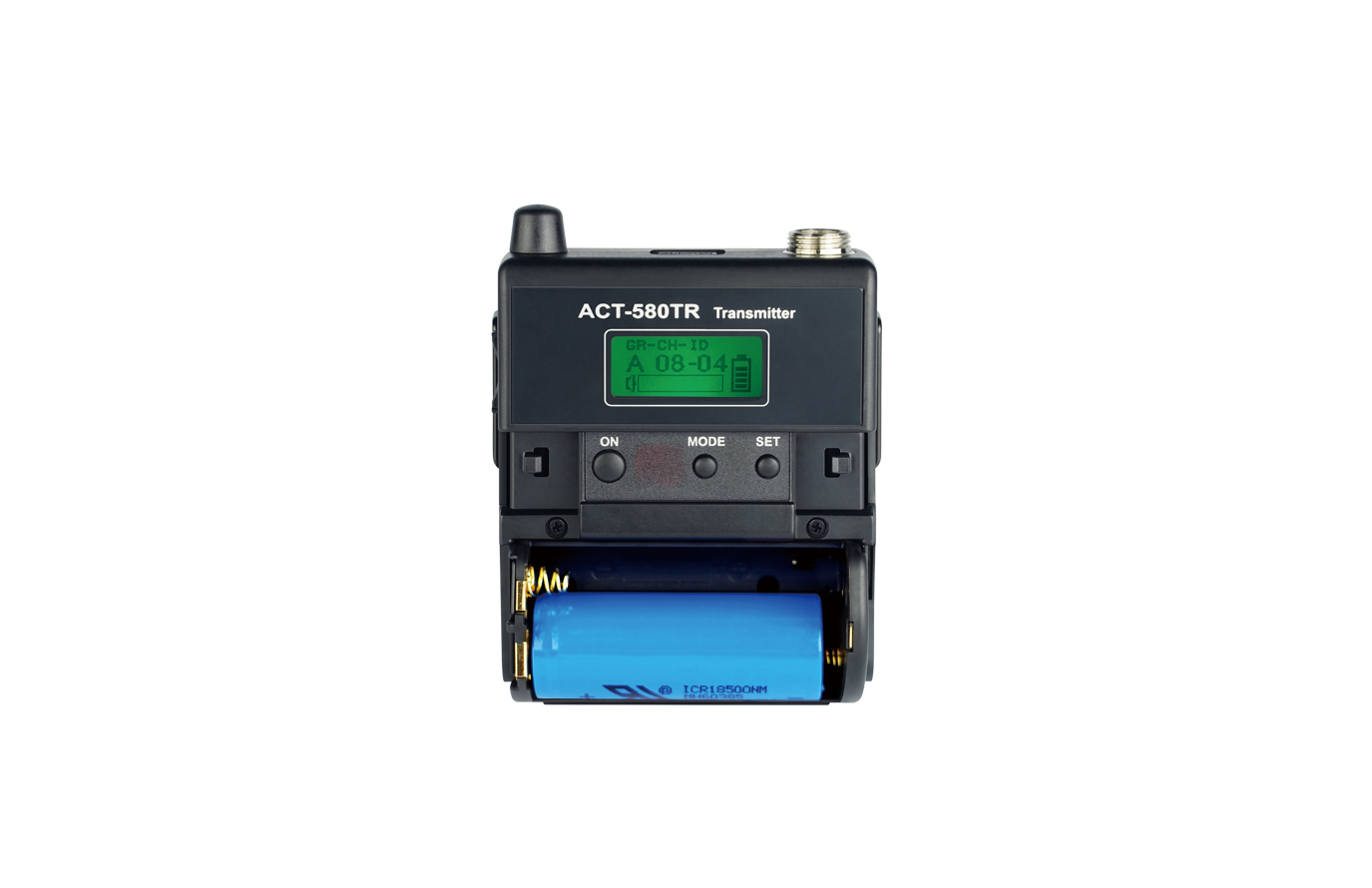

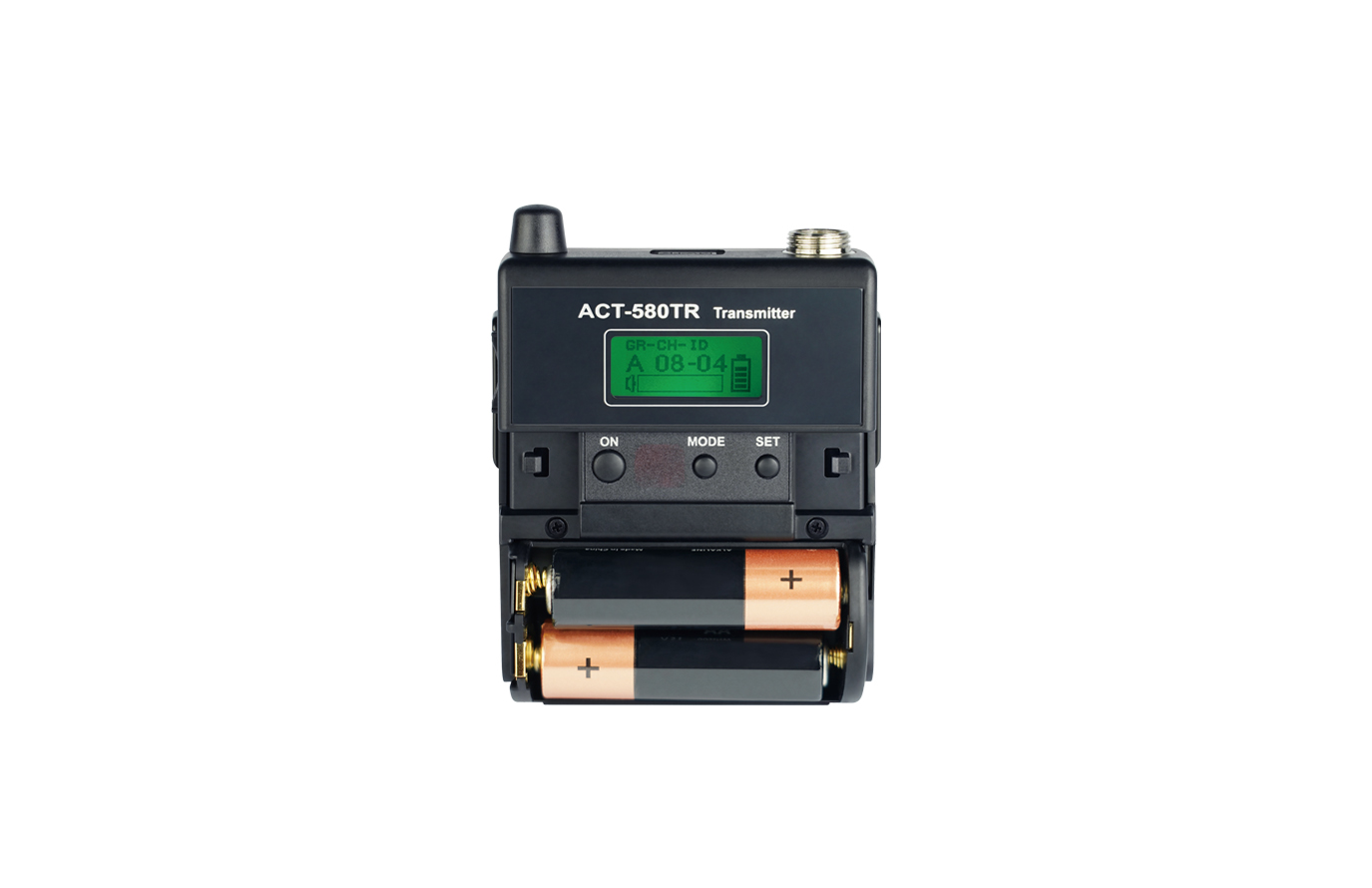

    • Patented dual-purpose battery compartment allows quick switching between AA and rechargeable Li-ion batteries.
    • USB Type-C charging interface with foolproof protection circuitry allows cable charging.

    SPECIFICATION

    Model

    ACT-580TR

    Name

    5 GHz Digital Recordable Transmitter

    Frequency Range

    ISM 5.8 GHz

    Bandwidth

    125 MHz

    Display

    Backlit LCD displays channel, battery status, AF meters and menus

    Control Interface

    ACT sync sensor, setting buttons and mute button

    Mic. Capsule Modules

    MIPRO lavalier and headworn mics

    Input Connector

    MIPRO 4-Pin Mini XLR

    Audio Control

    AF Gain

    Max. Audio Input

    6.5 dBV

    Recording Function

    WAV @ 48 kHz / 24-bit. Supports microSDHC up to 32 GB (FAT32)

    Gain Setting

    0–36 dB / 6 dB per segment

    RF Power Output

    20 mW (country dependent)

    Power Supply

    One 18500 Li-ion battery or two AA alkaline

    Battery Charging

    USB Type-C

    Dimensions

    63 × 80 × 25 mm (W × H × D)

    Weight

    Approx. 82 g

    RELATED PRODUCTS

  • All (4)

  • Wireless Systems (4)

  • act-5801_s

    ACT-5801

    5.8 GHz Digital Single-Channel Receiver

    COMPARE

    act-5802_s

    ACT-5802

    5.8 GHz Digital Dual-Channel Receiver

    COMPARE

    act-5812a_s

    ACT-5812A

    5.8 GHz Digital Dual-Channel Receiver

    COMPARE

    act-5814a_s

    ACT-5814A

    5.8 GHz Digital Quad-Channel Receiver

    COMPARE

    ACCESSORIES

  • All (27)

  • Headworn Mics (13)

  • Lavalier Mics (6)

  • Instrument Mic & Cable Sets (4)

  • Receiver Modules for Portable PA (1)

  • Rechargeable Batteries (1)

  • Carrying Bags & Dust Covers (1)

  • Mute Switches (1)

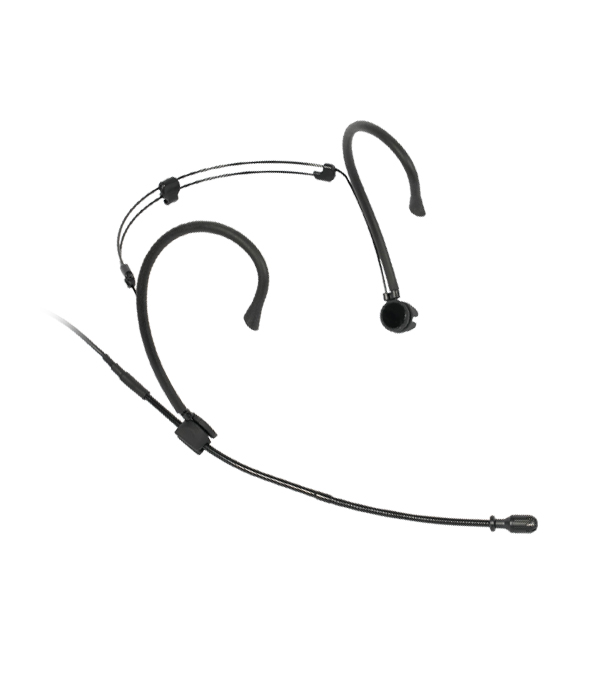

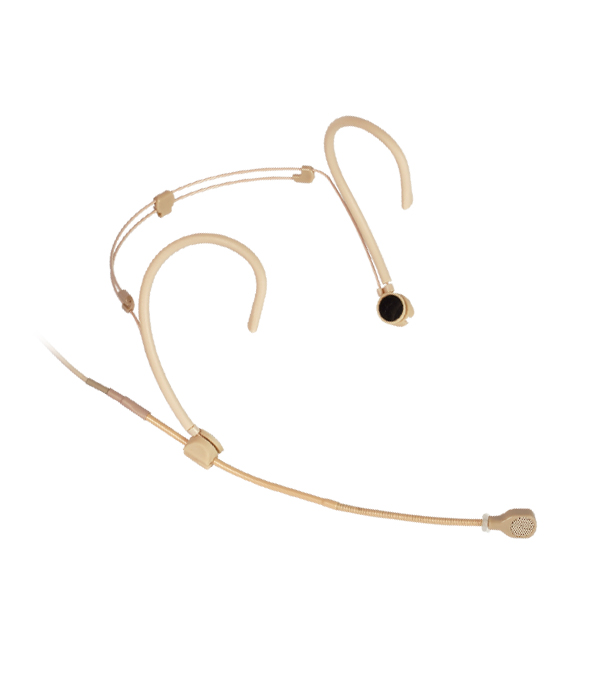

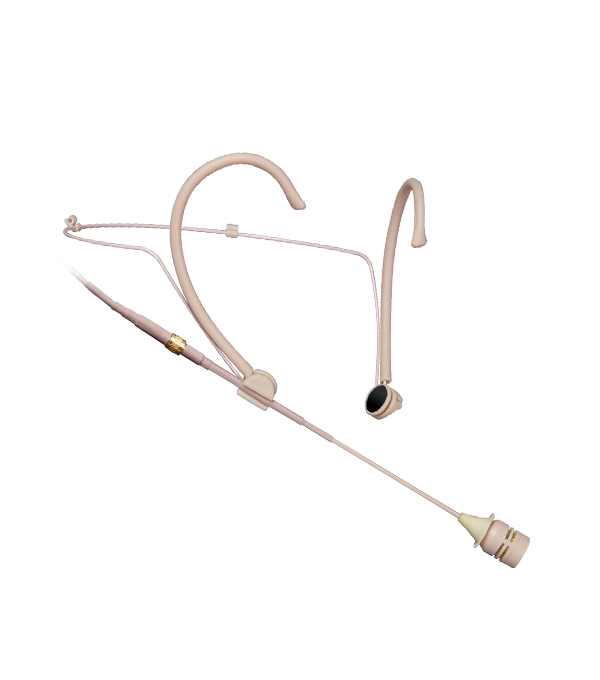

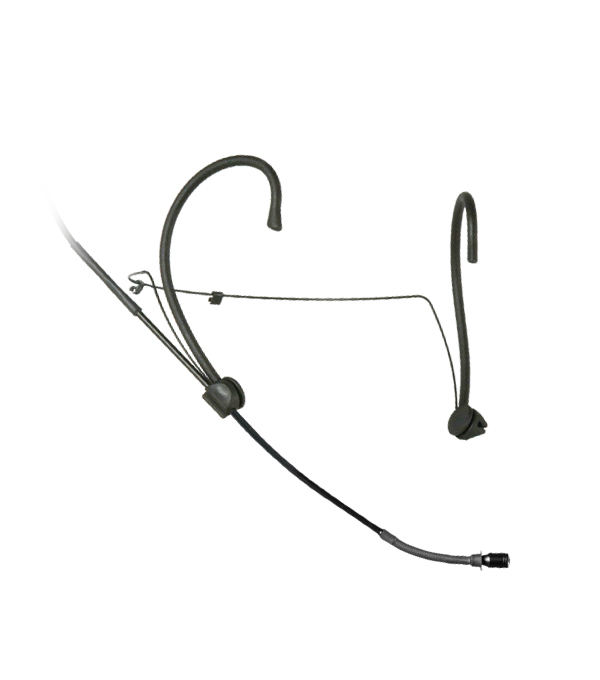

  • mu-506h_s

    MU-506H

    Unidirectional Headworn Microphone

    mu-506hs_s

    MU-506HS

    Unidirectional Headworn Microphone

    mu-57h_s

    MU-57H

    Waterproof Headworn Microphone

    mu-57hs_s

    MU-57HS

    Waterproof Headworn Microphone

    mu-13_s

    MU-13

    Single-Sided Fixed Omnidirectional Headworn Microphone

    mu-23_s

    MU-23

    Omnidirectional Headworn Microphone

    mu-23d_s

    MU-23d

    Detachable Omnidirectional Headworn Microphone

    mu-210_s

    MU-210

    Unidirectional Headworn Microphone

    mu-210d_s

    MU-210d

    Detachable Unidirectional Headworn Microphone

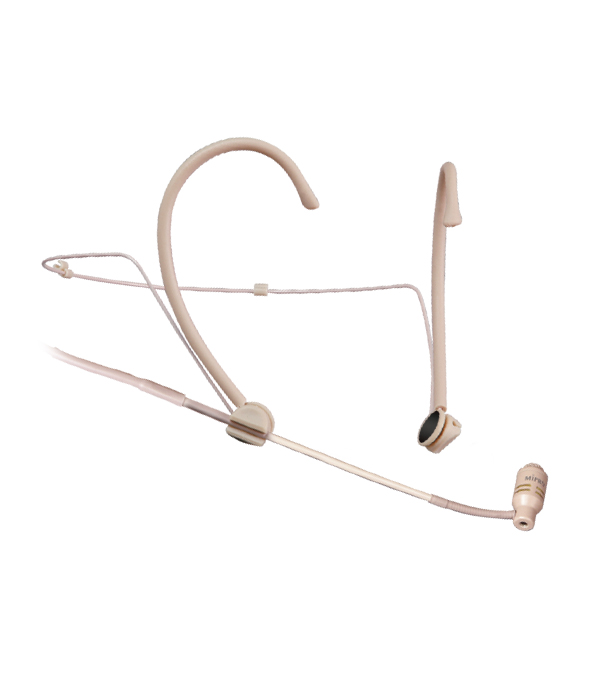

    mu-53hn_s

    MU-53HN

    Unidirectional Headworn Microphone

    mu-53hns_s

    MU-53HNS

    Unidirectional Headworn Microphone

    mu-55hn_s

    MU-55HN

    Omnidirectional Headworn Microphone

    mu-55hns_s

    MU-55HNS

    Omnidirectional Headworn Microphone

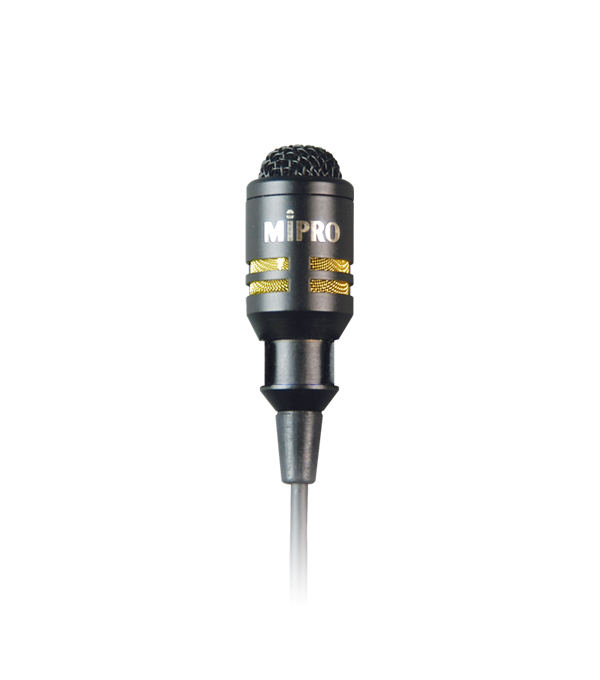

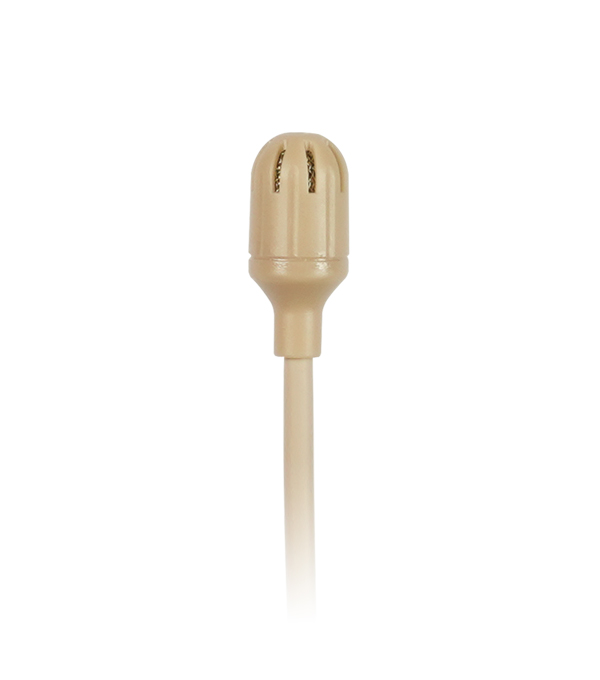

    mu-53l_s

    MU-53L

    Unidirectional Lavalier Microphone

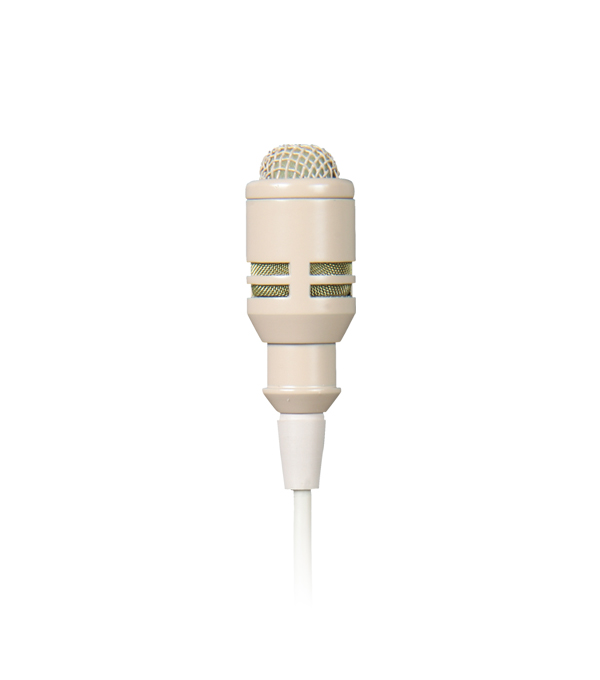

    mu-53ls_s

    MU-53LS

    Unidirectional Lavalier Microphone

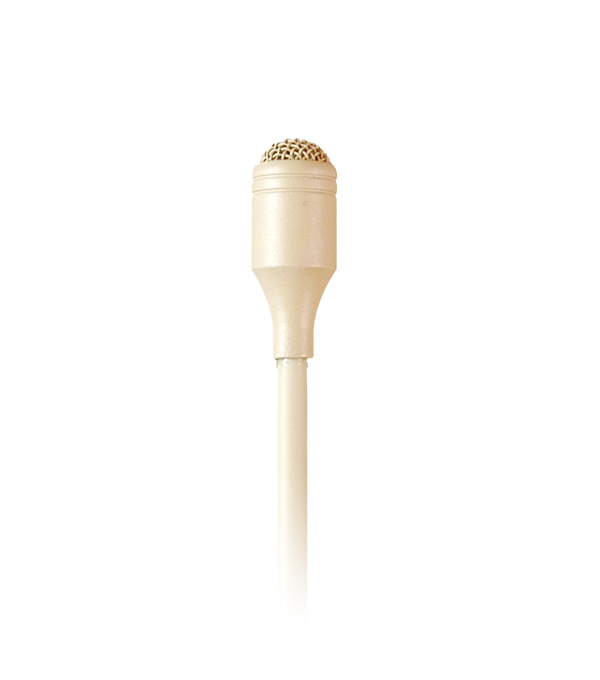

    mu-55l_s

    MU-55L

    Omnidirectional Lavalier Microphone

    mu-55ls_s

    MU-55LS

    Omnidirectional Lavalier Microphone

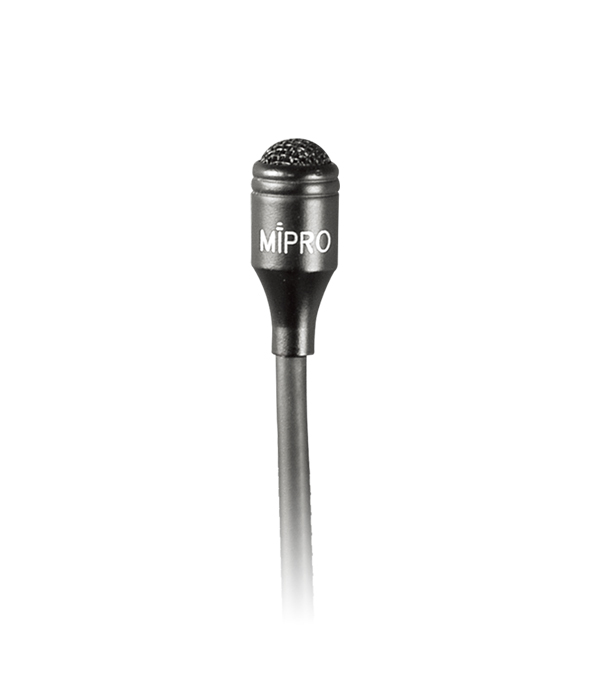

    mu-57l_s

    MU-57L

    Waterproof Lavalier Microphone

    mu-57ls_s

    MU-57LS

    Waterproof Lavalier Microphone

    mrm-58_s

    MRM-58

    5 GHz Digital Receiver Module

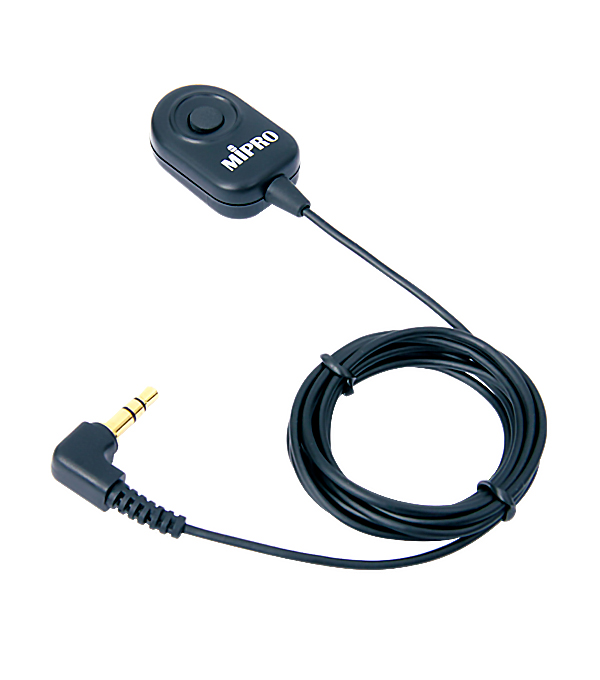

    mj-70_s

    MJ-70

    Remote Mute Switch

    cm-10e_s

    CM-10E

    Erhu Microphone Set

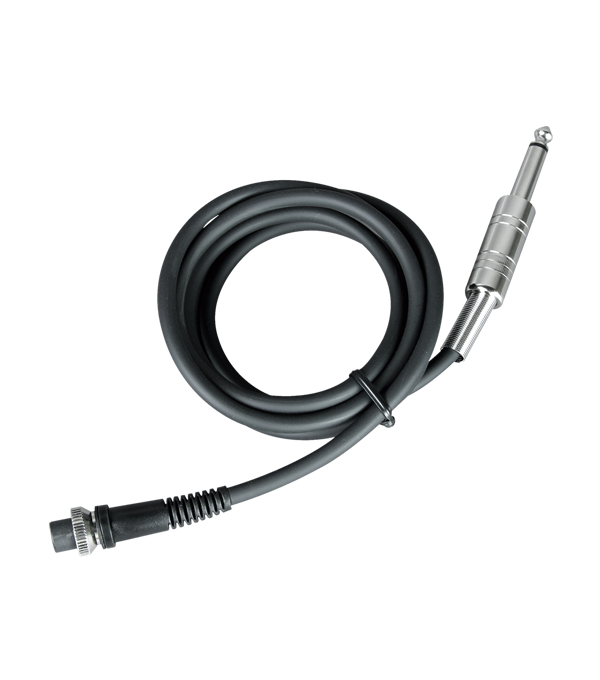

    mu-40g_s

    MU-40G

    Instrument Cable

    vm-10d_s

    VM-10D

    Double Bass Microphone Set

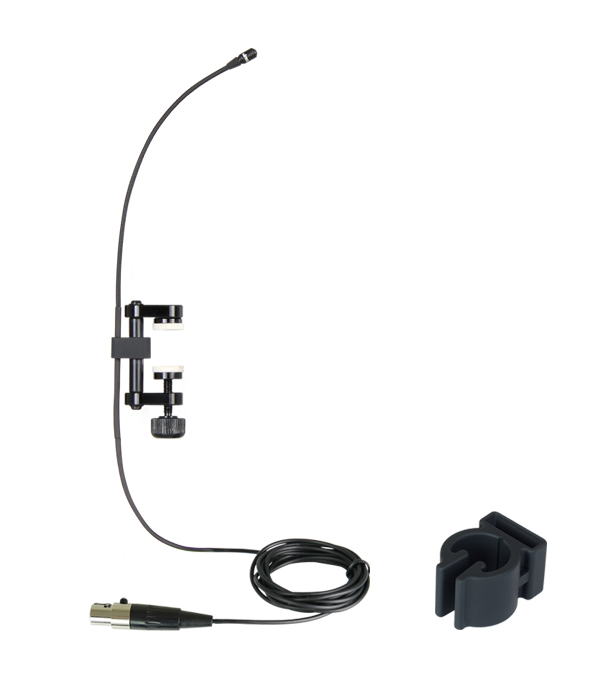

    vm-10l_s

    VM-10L

    Violin / Viola Microphone Set

    mb-5_s

    MB-5

    18500 Li-ion Battery

    asp-30_s

    ASP-30

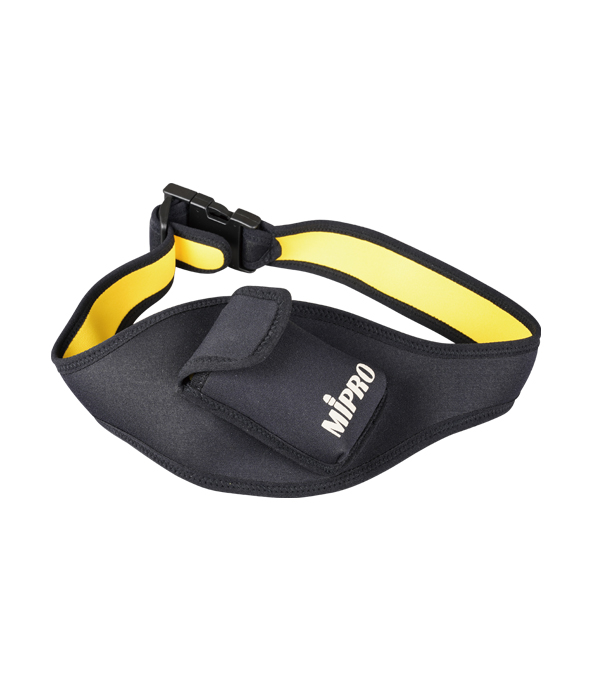

    Sport Pouch

    DOWNLOADS

  • SPEC SHEET

  • USER GUIDE

  • TITLE
    FILES
    SIZE
    DOWNLOAD
    ACT-580TR
    5 GHz Digital Recordable Transmitter (Ver.2024)
    198.03 KB
    Bodypack Transmitters
    ACT-800T / ACT-700T / ACT-500T / ACT-580TR / ACT-580T / ACT-240T (Ver.2023)
    1.51 MB
