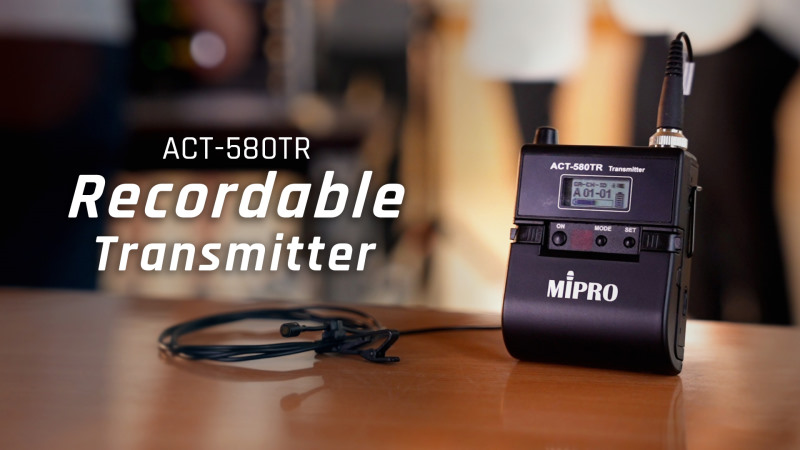

Product Name : 5 GHz Digital Recordable Transmitter

*The product images and specifications shown on our website may differ from the actual products due to different versions.

  • Newly designed compact and lightweight housing for easy wearing.
  • The panel integrates a power switch and a backlit LCD for easy operation and clear view of all operating information.
  • Records up to 48 kHz / 24-bit WAV format with uncompressed digital sound quality, 123 dB ultra-high dynamic, low noise floor, low distortion, and no need to worry about reception interruption and interference.
  • It can be programmed to start recording when the power is switched on, and the built-in uninterrupted clock provides full-time recording backup function.
  • Built-in microSDHC memory card slot.
  • The AF input sensitivity can be digitally set from 0 to 36 dB, and make appropriate gain adjustments through observing the signal strength indicator.
  • The world’s first ACT™ function provides precise and rapid frequency sync to the receiver.
  • The high dynamic range audio input prevents saturation distortion and matches up low and high input impedance.
  • Mute button and remote-control jack allow quick setting of MUTE function.
  • The patented battery compartment can be inserted with two AA-type batteries or one Li-ion rechargeable battery, charging via USB Type-C with the foolproof and safe charging circuit.
Product Introduction
Name5 GHz Digital Recordable Transmitter
Frequency BandISM 5.8 GHz
DisplayBacklit LCD
Mic. Capsule ModuleWork with all MIPRO’s lavalier and headworn mics
Input ConnectorMIPRO 4-Pin Mini XLR
Max. Audio Input6.5 dBV
AF Input Setting0 – 36 dB / 6 dB per segment
Data StoragemicroSDHC memory card, up to 32 G (FAT32)
Recording FormatWAV @ 48 kHz / 24-bit
RF Power Output20 mW (country dependent)
Battery TypeOne 18500 Li-ion battery or two AA alkaline
Battery ChargingUSB Type-C
Dimensions64 × 80 × 25 mm (W × H × D)
WeightApprox. 82 g


Spec Sheet
ACT-580TR 5 GHz Digital Recordable Transmitter (Ver.2024) 0.19M | 2024/03/18
User Guide
ACT Series Bodypack Transmitter (ACT-800T / ACT-700T / ACT-500T / ACT-240T / ACT-580T / ACT-580TR) 5.69M | 2024/04/03
