Product Name : UHF Digital Bodypack Transmitter

*The product images and specifications shown on our website may differ from the actual products due to different versions.


  • New Product

  • Digital

  • UHF Band

  • 72 MHz

  • LCD Display

  • ACT™ Channel Synchronization

  • Encryption

  • AA

  • Li-ion

  • USB Type C
  • Newly designed compact and lightweight housing for easy wearing.
  • The panel integrates a backlit LCD and setup buttons for easy operation and view of all operating information.
  • On top of the housing is equipped with an antenna, mute button and mini XLR connector. The Mini XLR audio input connector accepts either a screw-lock or a TA4F quick-lock plug. A remote-control mute jack is for easy activation of the mute function.
  • The audio input can be switched to low impedance Mic-in “MT” or high impedance Line-in “GT” to match up the input impedance. The high dynamic range audio input prevents saturation distortion.
  • The input polarization can be selected for matching various capsules.
  • The world’s first ACT™ function provides precise and rapid frequency sync to the receiver.

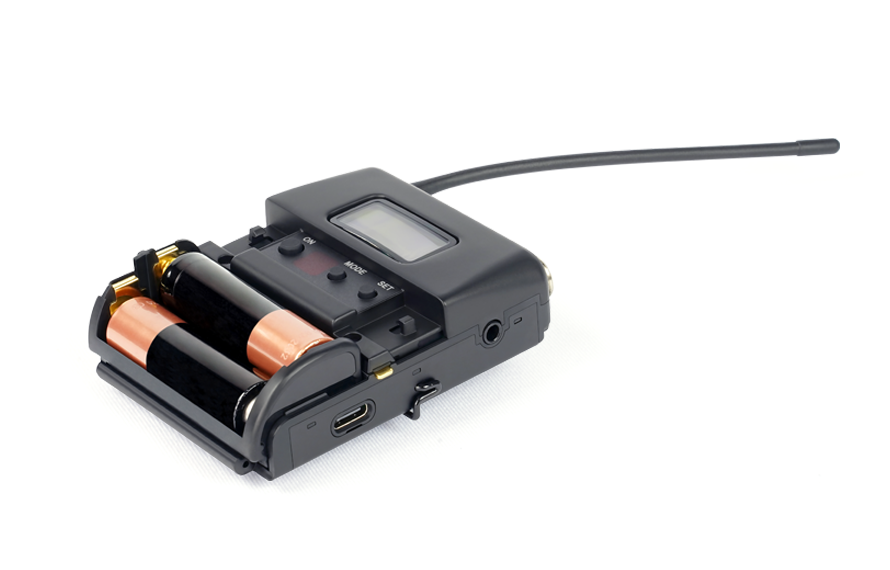

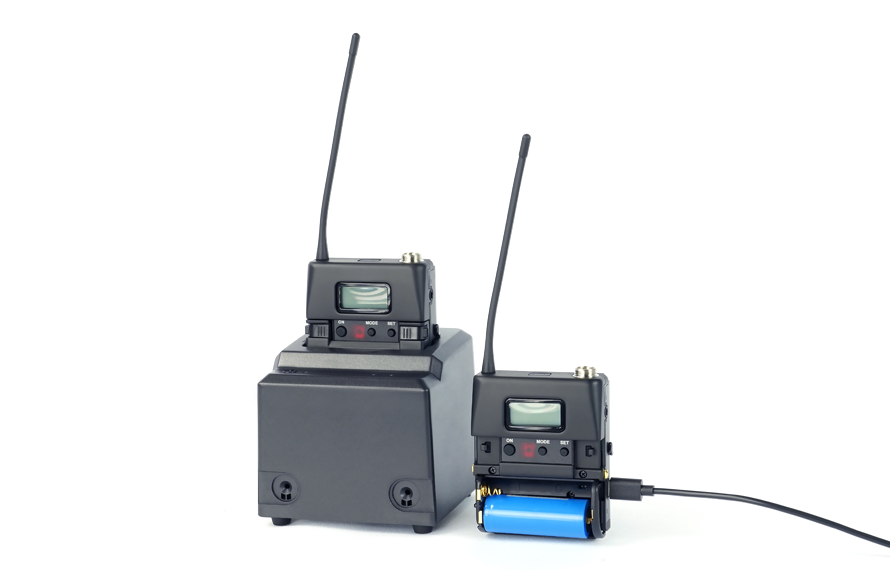

  • The patented battery compartment can be inserted with two AA-type batteries or one rechargeable battery, charging via USB Type-C with the foolproof and safe charging circuit.
  • A belt clip for easy wearing.
Product Introduction
ModelACT-800T
Name UHF Wideband Digital Bodypack Transmitter
Frequency Range UHF 480 ~ 934 MHz (country dependent)
Bandwidth 72 MHz
Mic Capsule Modules Paired lavalier mic MU-55L or optional other MIPRO’s lavalier and headworn mic capsule modules.
Max. Audio Input 6.5 dBV
Input Impedance Setting Low impedance Mic-in “MT” and high impedance Line-in “GT” are switchable.
RF Power Output 10 mW / 50 mW switchable (country dependent)
Battery One 18500 lithium-ion battery or two AA alkaline
Charging Type USB Type-C with the foolproof and safe charging circuit.
Dimensions 63 × 80 × 25 mm (W×H×D)
Weight Approx. 97 g
Note Refer to the actual product in the event of product discrepancy.

Download

Spec Sheet
ACT-800T UHF Digital Bodypack Transmitter (Ver.2021) 0.18M | 2021/08/18
User Guide
ACT Series Bodypack Transmitters (ACT-800T / ACT-700T / ACT-500T / ACT-300T / ACT-240T / ACT-580T) 4.23M | 2021/09/09
