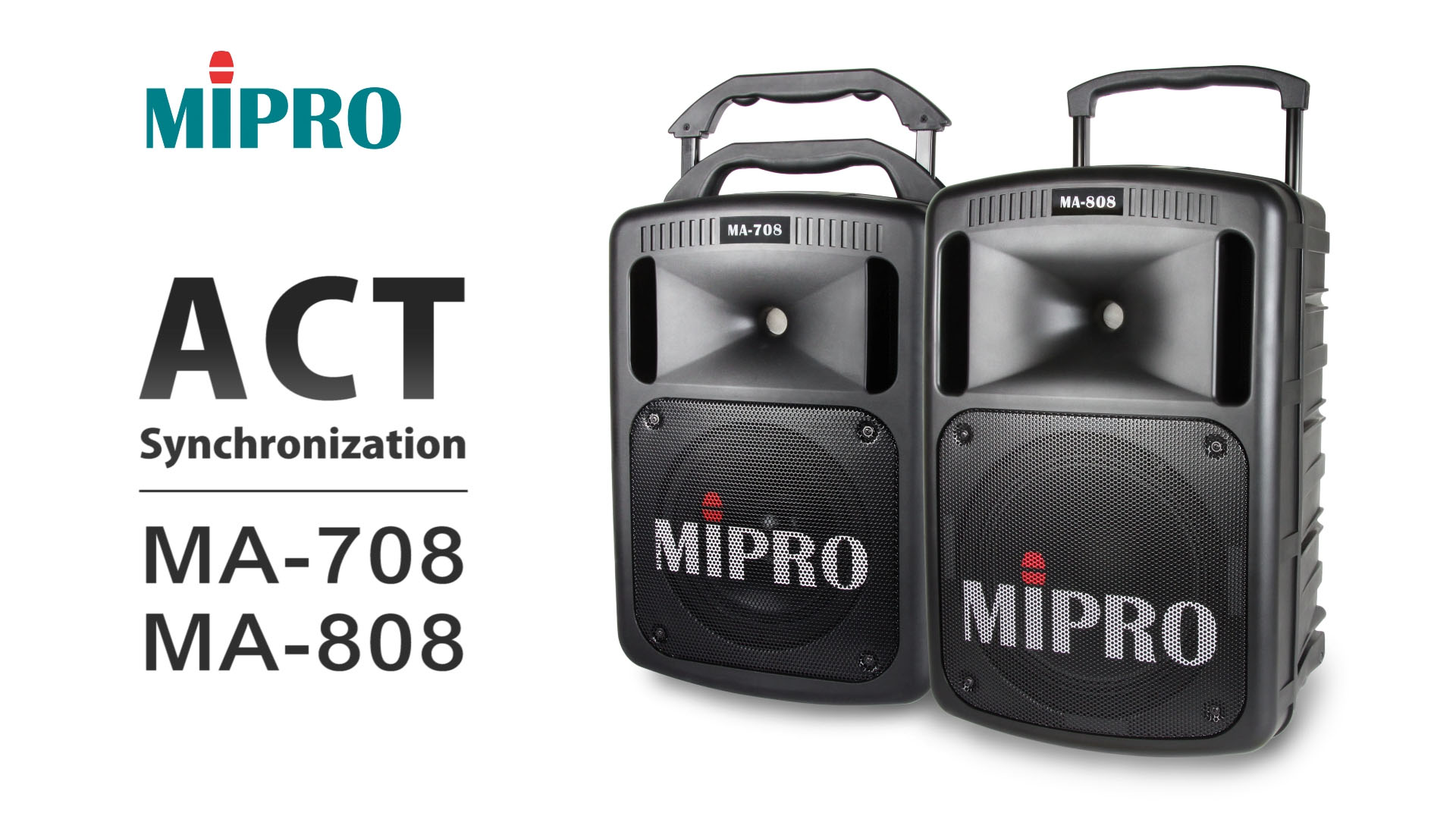

MA-Series Portable Wireless PA MA-I

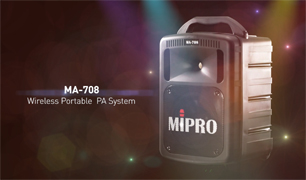

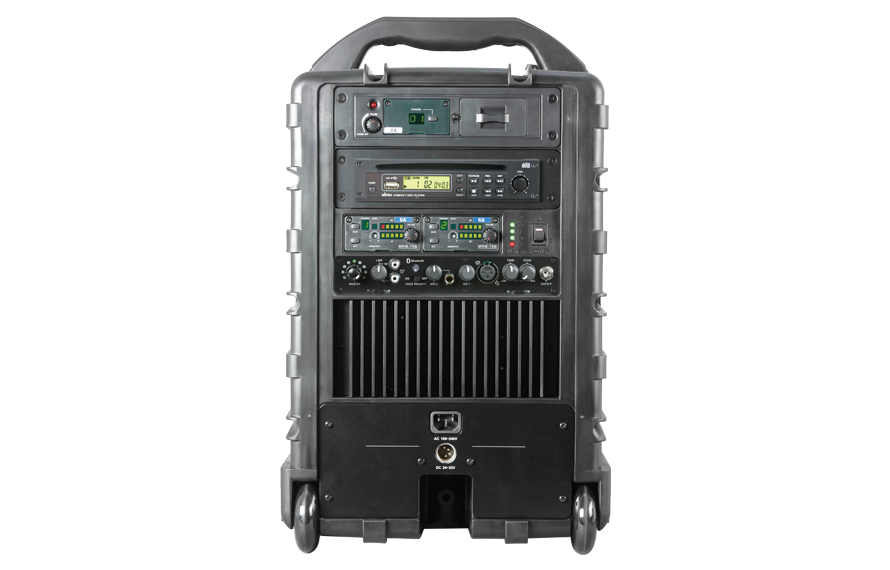

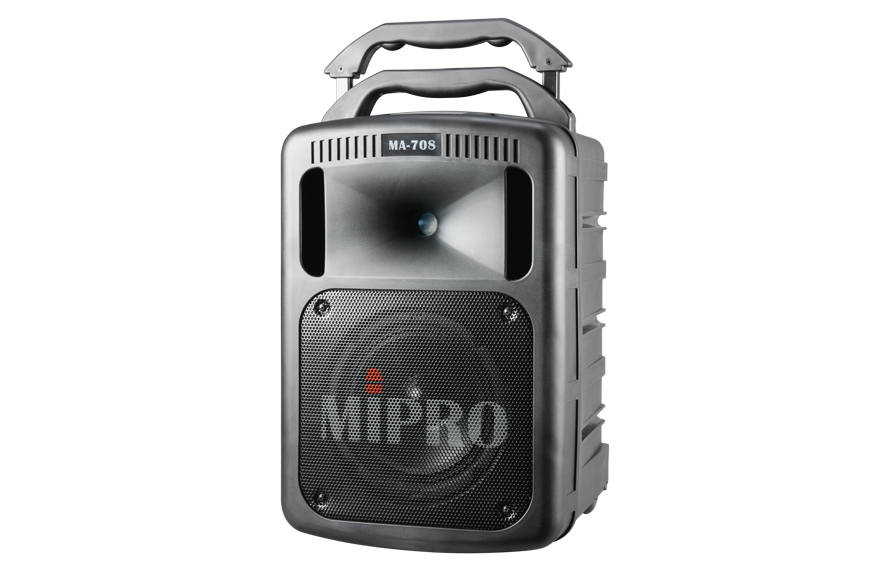

MA-708

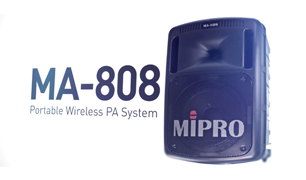

MA-808

Product Name : MA-Series Portable Wireless PA

*The product images and specifications shown on our website may differ from the actual products due to different versions.

UHF

ISM

One-piece molded cabinet with high efficiency amplifier system that drives the dual speaker system for powerful and clear sound.
Retractable handle and rugged wheels make it amazingly easy to transport. It can be hand-carried or installed on a tripod stand.
Built-in transmitters’ storage.
Modularized optional accessories for fast and easy installation and replacement.
TONE, VOP (voice-over-priority) and ECHO control on mics.
Mixed input amplification of wired mic, wireless mic, and audio players.
Extension speaker socket can be used with MA-708EXP/MA-808EXP passive speaker.
Industry’s only wireless interlinking transmitter option to interlink multiple MA-708/MA-808 portables wirelessly to extend transmission range and expand coverage.
Industry’s first built-in active dual antennas for long distance and stable receiving.
Built-in AC switching power supply and rechargeable batteries.

Q'ty :

Inquiry

Product Introduction

Model	MA-708	MA-808
Name	Portable Wireless PA System	Portable Wireless PA System
Max. SPL	108 dB	116 dB
Drivers	1.5" Tweeter & 8" Woofer	1.5" Tweeter & 10" Woofer
Frequency Range	50 Hz – 18 kHz	50 Hz – 18 kHz
Audio Inputs	MIC IN: 1 × XLR, 1 × 1/4" (6.3 mm) LINE IN: 1 × RCA	MIC IN: 1 × XLR, 1 × 1/4" (6.3 mm) LINE IN: 1 × RCA
Audio Output	LINE OUT: 1 × RCA	LINE OUT: 1 × RCA
Amplifier	Class D	Class D & Class AB
Output Power	190 W RMS, 325 W peak	267 W RMS, 456 W peak
Receiver Modules	Up to 4	Up to 4
Audio Players	Bluetooth, CD/USB/SD player & recorder (optional)	Bluetooth, CD/USB/SD player & recorder (optional)
Transmitter Modules	MTM-92 (optional)	MTM-92 (optional)
Extension Speaker	1 × 1/4" (6.3 mm)	SpeakON output
Other Functions	TONE, VOP and ECHO control on mics	TONE, VOP and ECHO control on mics
Power Supply	AC 100 – 240 V or DC 24 – 32 V	AC 100 – 240 V or DC 24 – 32 V
Battery	Built-in Lead-acid battery	Built-in Lead-acid battery
Battery Indicator	4-segment indicators (25/50/75/100%)	4-segment indicators (25/50/75/100%)
Standby Time	Up to 7 hours	Up to 6 hours
Color	Black	Black
Dimensions	336 × 545 × 336 mm (W × H × D)	360 × 558 × 350 mm (W × H × D)
Weight	Approx. 15.3 kg	Approx. 18.0 kg

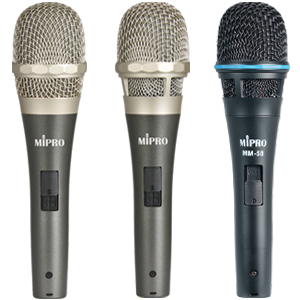

Optional Accessories	SC-708 carry bag, MS-70 tripod stand, MM-Series microphones, MB-80 Li-ion battery	SC-808 carry bag, MS-70 tripod stand, MM-Series microphones, MB-80 Li-ion battery
Patents and Approvals	Patented. Telecom and safety regulations approved	Patented. Telecom and safety regulations approved
Note	Refer to the actual product in the event of product description discrepancy	Refer to the actual product in the event of product description discrepancy
