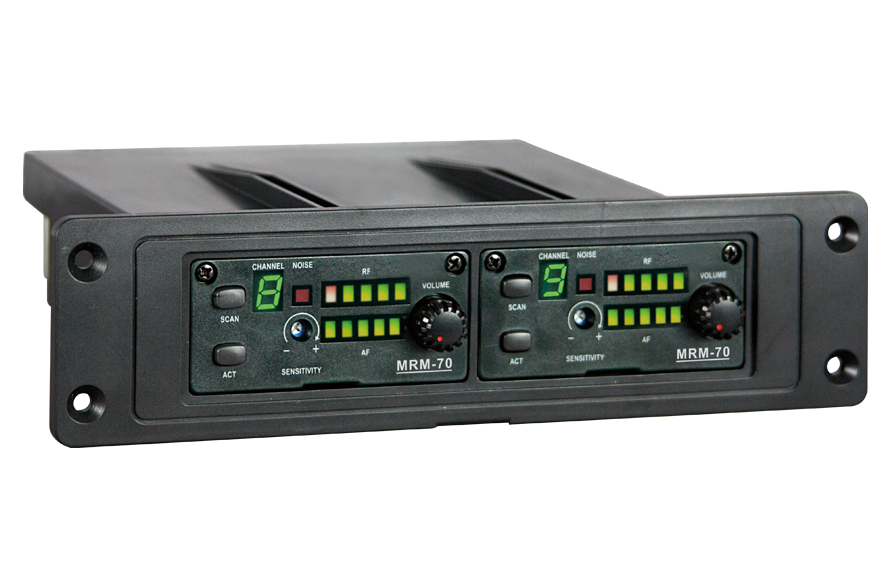

MRM-70D UHF Diversity Dual-Channel Receiver Module
*The product images and specifications shown on our website may differ from the actual products due to different versions.
UHF
24
LED
- Advanced diversity technology for optimum reception quality.
- Preset with 16 auto-scannable frequencies.
- One-touch Scan for a clear, interference-free frequency.
- One-touch ACT™ syncs the transmitter and receiver frequency automatically.
- Easy-to-read LED channel display.
- Interference warning indicator.
- "Sensitivity" adjustor can be adjusted to minimize interference.
- Dual "PiloTone & NoiseLock" circuits minimize interference.
- 5-segment RF and Audio meters.
- Modular design allows easy installation and replacement.
- When MRM-70S / MRM-70D is installed, master level control enables volume be wirelessly controlled by an ACT-32HR transmitter microphone instead of a separate remote. (MA-708 & MA-808 portables)
Product Introduction
| Model | MRM-70D |
|---|---|
| Name | UHF Diversity Dual-Channel Receiver Module |
| Frequency Band | UHF 480 – 934 MHz |
| Bandwidth | 24 MHz |
| Preset Channels | 16 |
| Channel Setting | Manually set up the desired channel or scan for an open channel. Press the ACT button to synchronize the transmitter and receiver |
| Display | Channel, RF/AF meters, sensitivity meters and interference warning indicator |
| Receiving Mode | MCU-controlled diversity receiving |
| Sensitivity | S/N > 80 dB at 10 dBμV |
| S/N Ratio | > 100 dBA |
| THD | < 0.5% @ 1 kHz |
| Frequency Response | 50 Hz – 18 kHz |
| AF Output | 610 mV RMS |
| Power Supply | DC 12 – 15 V |
| Note | Refer to the actual product in the event of product description discrepancy |
