• MA-300
  • MA-300D

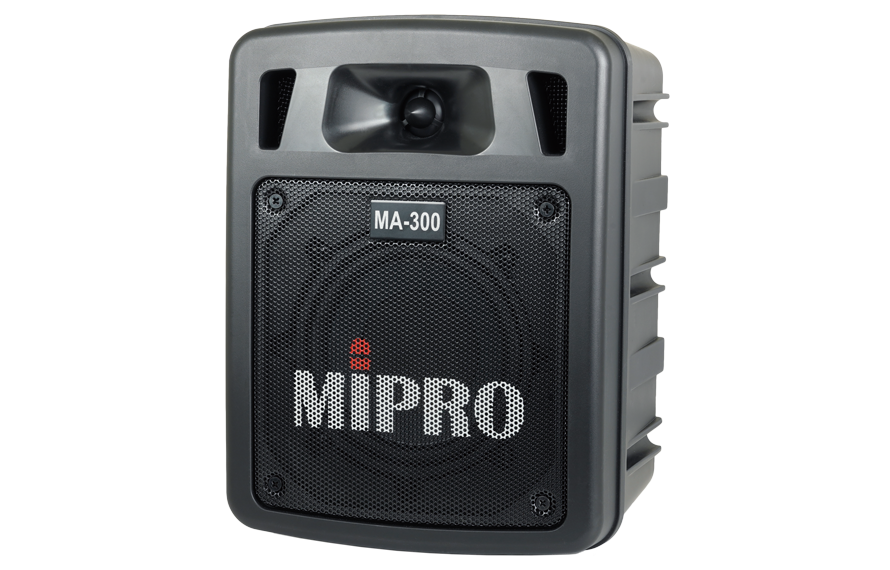

Product Name : Miniature Portable PA

*The product images and specifications shown on our website may differ from the actual products due to different versions.

UHF
ISM
  • The two-way speaker cabinet is redesigned to improve the efficiency in treble frequency and delivers a clear and powerful sound effect for both speech and music.
  • Easy hand-carrying or stand-mounting makes MA-300 the most ideal megaphone for various applications.
  • One UHF or ISM 5.8 GHz band receiver module for long-distance and reliable reception performance.
  • Plug-in Bluetooth module, USB player/recorder, built-in echo function, and alarm siren which has a fade-in effect.
  • Equipped with audio input mixer. Each audio source has individual volume control.
  • Removable Li-ion battery holder for fast insertion and replacement.
  • Bluetooth with TWS technology can combine two megaphones for stereo sound.
Product Introduction
ModelMA-300MA-300D
Name Single-channel Miniature Portable PA Dual-channel Miniature Portable PA
Max. SPL 105 dB 105 dB
Drivers 1" Treble & 5" Woofer 1" Treble & 5" Woofer
Frequency Range 80 Hz – 18 kHz 80 Hz – 18 kHz
Audio Inputs MIC IN: 1 × 1/4" (6.3 mm)
LINE IN: 1 × 1/8" (3.5 mm)
MIC IN: 1 × 1/4" (6.3 mm)
LINE IN: 1 × 1/8" (3.5 mm)
Audio Output LINE OUT: 1 × 1/8" (3.5 mm) LINE OUT: 1 × 1/8" (3.5 mm)
Amplifier Class D Class D
Output Power 60 W RMS, 102 W peak 60 W RMS, 102 W peak
Receiver Module 1 × UHF or ISM 5.8 GHz module 2 × UHF or ISM 5.8 GHz module
Audio Players Plug-in Bluetooth module & USB recorder / player Plug-in Bluetooth module & USB recorder / player
Other Functions Echo on mics & siren sound effect Echo on mics & siren sound effect
Power Supply DC (19 – 24 V) socket for external AC (100 – 240 V) power supply DC (19 – 24 V) socket for external AC (100 – 240 V) power supply
Battery 4 × 18650 Li-ion batteries (MB-14) 4 × 18650 Li-ion batteries (MB-14)
Battery Indicator 4-segment indicator (25/50/75/100%) 4-segment indicator (25/50/75/100%)
Standby Time Up to 10 hours Up to 10 hours
Dimensions 209 × 278 × 165 mm (W × H × D) 209 × 278 × 165 mm (W × H × D)
Weight Approx. 2.7 kg (batteries included) Approx. 2.7 kg (batteries included)
Optional Accessories SC-300 carry bag, MS-30 tripod stand, MM Series microphones SC-300 carry bag, MS-30 tripod stand, MM Series microphones
Patents and Approvals Patented. Telecom and safety regulations approved Patented. Telecom and safety regulations approved
Note Refer to the actual product in the event of product description discrepancy Refer to the actual product in the event of product description discrepancy

Download

Spec Sheet
MA-300 Single-channel Miniature Portable PA (Ver.2023) 0.26M | 2023/03/21
MA-300D Dual-channel Miniature Portable PA (Ver.2023) 0.26M | 2023/03/21
User Guide
MA-300 Series Portable Wireless PA System (MA-300 / MA-300D) 9.56M | 2022/05/04
