MIPRO external antennas support wireless transmission and reception in directional and omnidirectional configurations. The range includes UHF, 2.4 GHz and 5 GHz models, with selected UHF AT-70 and AT-90 models available in active or passive versions.
Antenna selection should consider the system frequency band, required coverage pattern, active or passive operation, bias-power availability and installation position. Omnidirectional models provide broader coverage across directions, while directional models focus RF coverage toward the intended area.
MIPRO antenna boosters compensate for RF signal loss in coaxial antenna cables. They support installations that require longer cable runs between external receiving antennas and wireless receiver systems.
The range includes the MPB-24 for 2.4 GHz, MPB-30 for UHF and MPB-58 for 5 GHz systems. Fixed-gain and adjustable-gain options accommodate different antenna cable configurations.
The MIPRO AD-702 is a UHF antenna gain controller that detects antenna cable loss and adjusts booster gain to compensate. It supports antenna cable setup in wireless receiver installations.
Operating across 470–850 MHz, the AD-702 can be used independently or with an MPB-30 antenna booster. One-button calibration and LED indicators assist with setup and status monitoring.

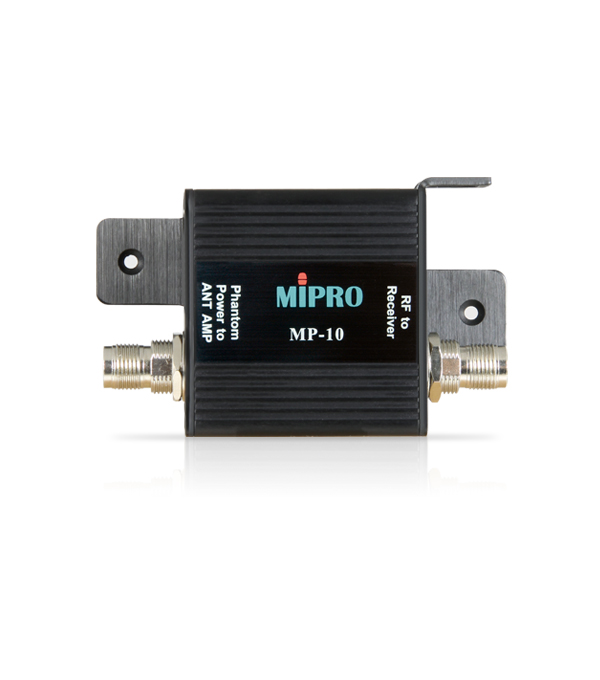

The MIPRO MP-10 provides isolated DC bias power for external antenna boosters in UHF receiver systems. Its low insertion loss supports RF signal transmission through the antenna cable.
Operating across 470–960 MHz, the MP-10 can be used with the AD-12 antenna divider or MPB-30 antenna booster in installations requiring extended antenna cable runs.
MIPRO transmitting antenna combiners route multiple transmitter signals through a single antenna output. This reduces the number of transmitting antennas required in monitoring and wireless transmission installations.
The AD-58 combines signals from up to four 5 GHz MI-58 transmitters. The AD-808 combines signals from up to four UHF transmitters.
MIPRO antenna dividers simplify antenna connections in UHF wireless receiver systems. Passive and active models provide different options for sharing antennas and managing RF signal distribution.
The AD-12 passively splits one antenna signal between two receivers or combines two antenna signals for one receiver. The AD-708 distributes two antenna inputs to up to four receivers and supports automatic cable-loss compensation with the MPB-30 antenna booster.
MIPRO RF power amplifiers boost transmitter output for UHF wireless applications that require extended transmission range. They work with external transmitting antennas to strengthen the outgoing RF signal.
The AD-90A operates across 470–960 MHz and supports MI-909T, MT-92A and MTS-100 transmitters, as well as the AD-90S RF power splitter. Compatible antennas include the AT-70W, AT-90W and AT-100.
MIPRO RF power splitters distribute a single transmitter signal to multiple transmitting antennas, supporting wireless coverage in different directions or across multiple floors.
The AD-90S operates across UHF 470–960 MHz and routes the output of an MI-909T, MT-92A or MTS-100 transmitter to up to four antennas. Front-panel LED indicators show when the input signal reaches the specified level.
